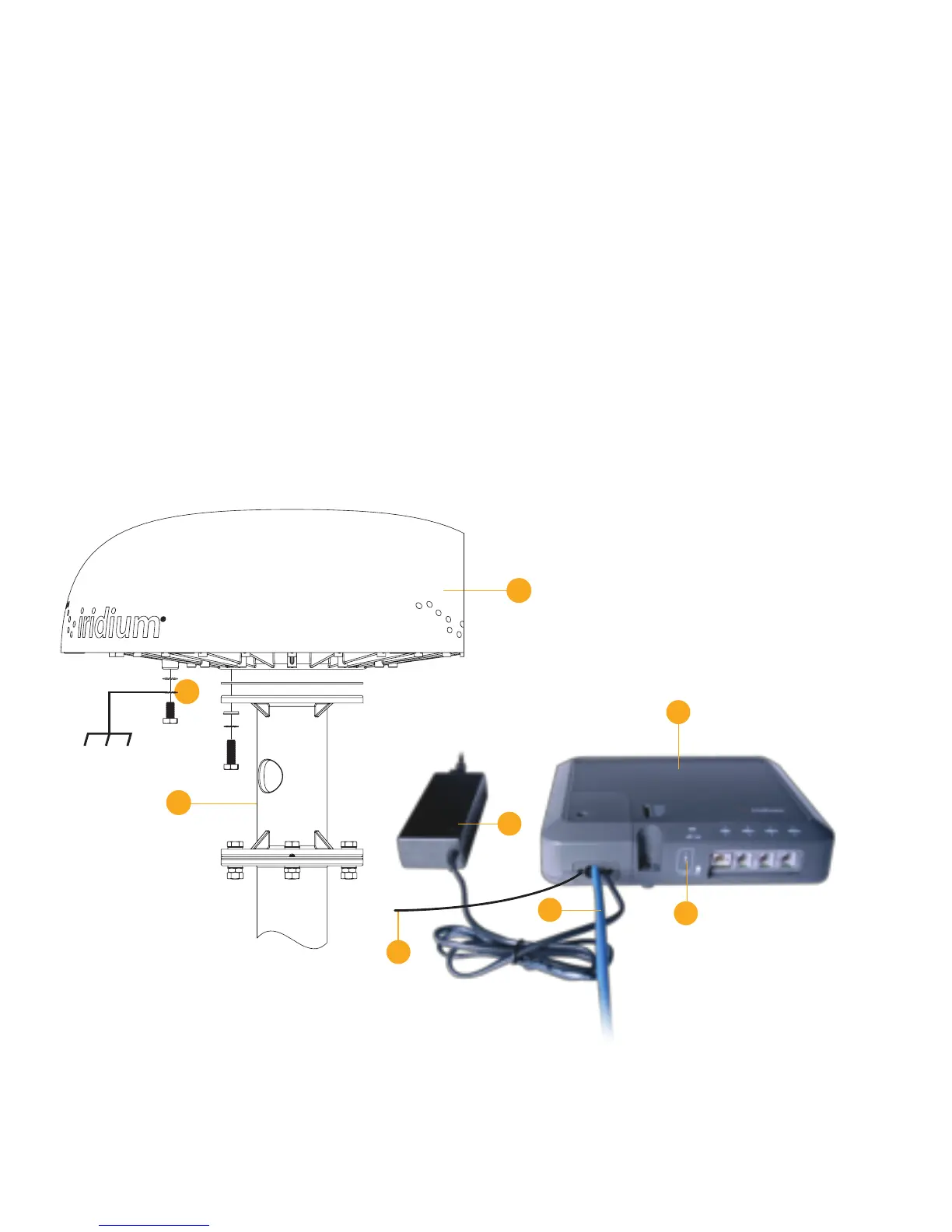

INSTALLATION COMPONENTS & PARTS LIST:
1. Iridium Pilot Land Station Unit includes the following parts:
A. Outdoor Unit (ODU)
B. Mounting bracket
C. Indoor Unit (IDU)
D. ODU/IDU cable (10 m included and 30 m cable available)
E. IDU power supply unit: the AC power supply unit (PSU) provides power to the IDU
F. Iridium Pilot Land Station accessory CD
G. SIM card
H. ODU Ground cable 3 m (8 m cable available)
I. IDU Ground Cable 2.5 m
WARNING
Exposure to radio frequency energy (RF) from the antenna may cause thermal injuries including
tissue damage from increased heating and body temperature. Do not substitute any antenna for the
one supplied or recommended by the manufacturer or radio dealer. Substitution of antennas could
cause exposure to excess radio frequency radiation which could result in serious injury or death.
WARNING
To avoid interfering with blasting operations, turn your device OFF when in a “blasting area” or in
areas posted: “Turn off two-way radio.” Obey all signs and instructions. Failure to do so could result in
serious injury or death.
Blasting Areas
C
E
D
F
I
SIM card, reset button
and on/off switch are
located behind panel
A
B
H
Required Materials for Installation:
1. User supplied pole/mast/mounting location
2. Windows compatible computer
3. Ethernet cable (installer/customer provided)
4. RJ11 telephones
5. Slotted and Phillips screw drivers
6. Hammer and center punch
7. Power drill and associated bits
8. Wire cutters
9. Wire strippers and terminal lug crimper
10. RJ-45 crimp tool
11. Electrical tape
12. Anti-seize compound
13. Ground connection location
14. Electrical clips (alligator clips)
