If the security valve on a cooling co
il against overheating is installed, it is possible not to use the floating back flap at the bypass.
On special user demand the installation can be expanded with accumulation tanks (1,2 or 3 pieces even), room and outside temperature sensor or thermal outlet
protection. There’s also a possibility to combine two boilers within cascade. Such modification must be performed based on separate documentation of installation
designed by the authorized designer.
boiler type IRLEH
2. Three-way valve
3. Circulation pump
4. Differential valve
5. Heater
6. Tap water heater
7. Inlet of cold water
8. Valve
9. Tap water outlet
10. Expansion tank “open”
11. Connecting piece with
sockets
12. Filter
13. Thermoregulatory valve
type TERMOWAR 61
o
C
14. The naiant manageable
clack without the spring
15. Venting
16. Control valve
17. Cooling valve:
Honeywell TS130 – ¾ A
(95
o
C) WATTS STS 20
(97
o
C)
18. Cold water inflow
2-6 bar 10-15

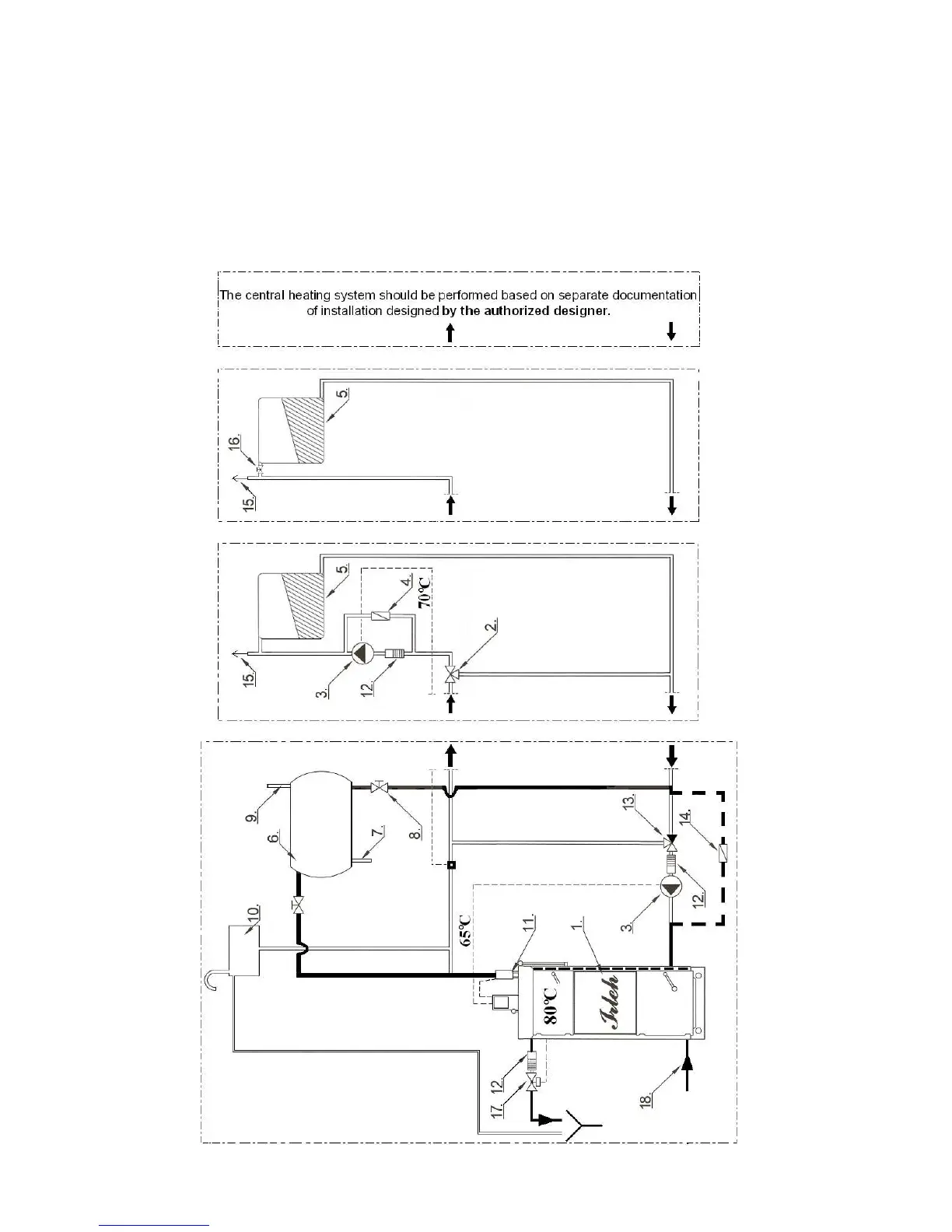

Sample central heating system
The schema No. 2
Basic - recommended by the producer Variant I Variant II Variant III
