9Roomba Combo® 10 Max + AutoWash dock Owner’s Guide
EN
About your robot

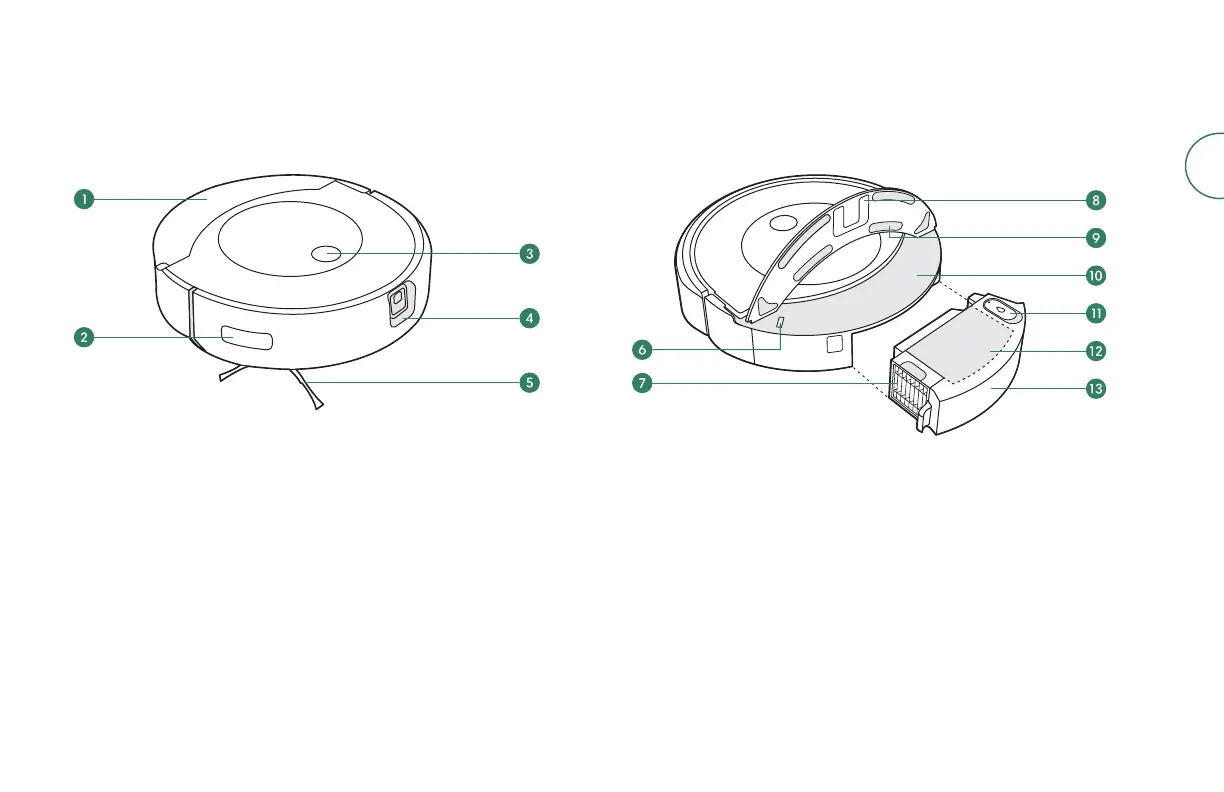

Top view
1 Mopping pad plate
2 Wall follow sensor
3 Clean button
4 Camera
5 Edge-sweeping brush
6 IR pad sensor
7 Filter
8 Pad track
9 Pad attachments
10 Pad shelf
11 Tank cap
12 Dust bin
13 Water tank
