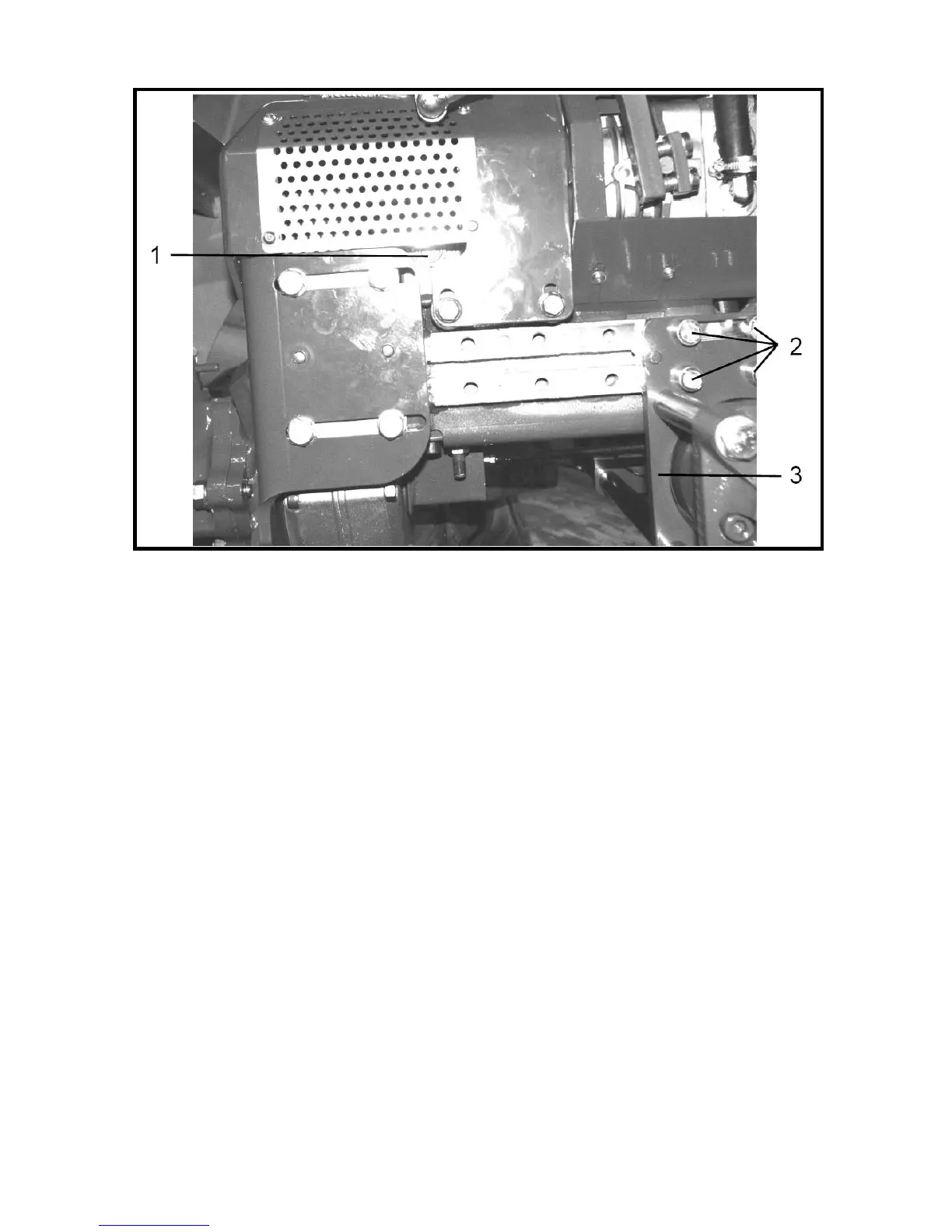

Figure 4
1 Oil gauge glass for the hydraulic oil level
2 Screws for fastening the axle
3 Axle
Installation of PTO attachments:
All PTO attachments are taken up by the quick coupler.
This is done as follows:
01. Pull out latch lock (Fig. 1/4) upwards and rotate 90°.
02. Mount devices (slide them into the quick coupler [Figure 2/3]).
03. Rotate latch lock again to 90 degrees and let it lock into place again. Make very sure that it has locked
into place!!!
