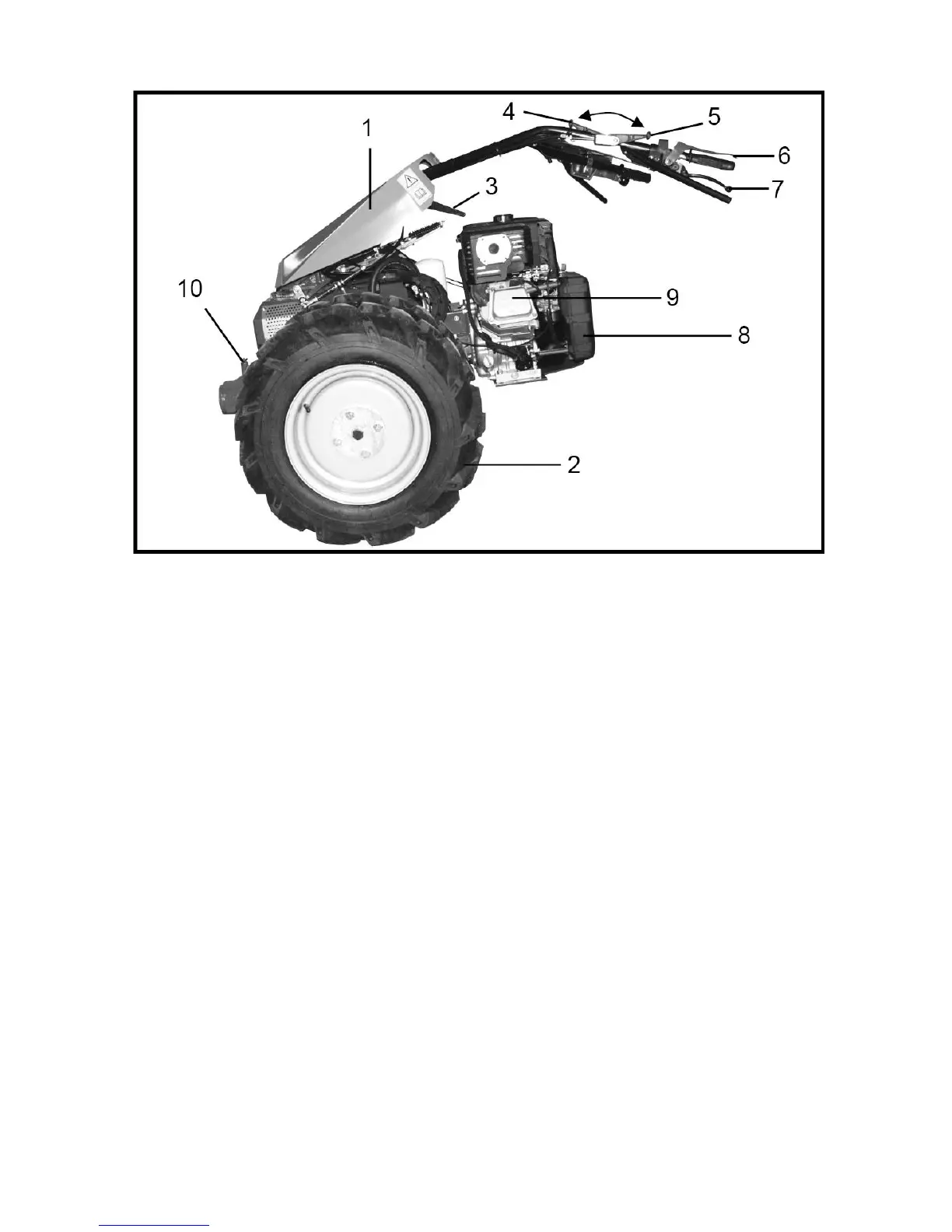

Figure 1
1 Steering rod cover
2 Wheels
3 Lever for variably adjustable handlebar height
4 Lever for handlebar side adjustment
5 ON/OFF lever to the PTO shaft
6 Deadman lever
7 Coupler lever
8 Air filter
9 Moto
Assembly of the basic machine:
The basic machine is delivered completely assembled.
Note:
Upon delivery, it is important that all screws, especially those on the wheels, are tightened again.
Once delivery has been made, IRUS requires the following work to be done as the initial inspection:
01. Motor check
02. Hydraulic oil level checks
03. Lubrication of the Bowden cables
04. Check of hydraulic connections for leaks
05. Functional testing of the steering
06. Functional testing of the deadman lever
07. Test run
08. Check of idle speed and maximum speed of the engine, corrections if necessary
09. Instructions to end user
