iRV Technologies iRV66 - Wiring Diagram and Troubleshooting; Wiring Diagram

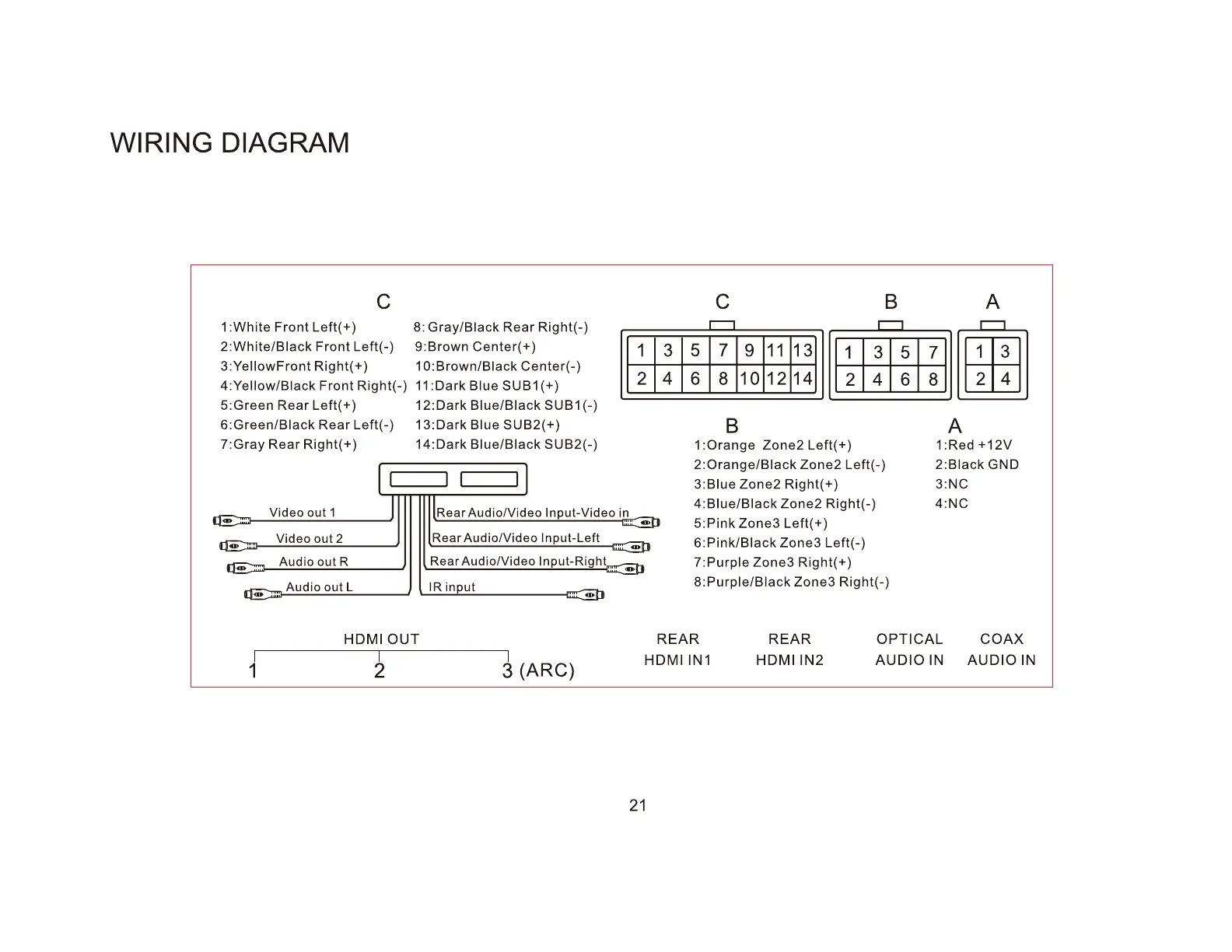

WIRING DIAGRAM
c
1 :White Front Left(+) 8: Gray/Black Rear Right(-)
2:White/Biack
Front Left(-) 9:Brown Center(+)
3:YellowFront Right(+) 1 0: Brown/Black Center(-)
4:Yellow/Biack
Front Right(-) 11 :Dark Blue SUB1 (+)
5:Green
Rear Left(+)
6:Green/Biack Rear Left(-)
7:Gray Rear Right(+)
Video out
1
-
-
Videoout2
..
AudiooutR
Audio out L
12:Dark Blue/BiackSUB1(-)
13:Dark Blue SUB2(+)
14:Dark Blue/BiackSUB2(-)
IR in ut
HDMIOUT
1 2
3 {ARC)
c
B A
r-1 r-1
1 3 5 7 9 11 13
2 4
6 8
10
12 14
ffillim
8
[I
21
B
1 :Orange Zone2 Left(+)
2:0range/Biack Zone2 Left(-)
3:Biue Zone2 Right(+)
4:Biue/Biack Zone2 Right(-)
5:Pink
Zone3 Left(+)
6:Pink/BiackZone3 Left(-)
?:Purple Zone3 Right(+)
8:Purple/Biack Zone3 Right(-)
A
1:Red +12V
2:BiackGND
3:NC
4:NC
REAR
HDMIIN1
REAR
HDMIIN2
OPTICAL COAX
AUDIO
IN AUDIO IN
