14
3.2.2.
Interfaces Term
inal Block
The terminal bloc
k acc
ommodates RS485 serial interf
ace and input/output
lines.

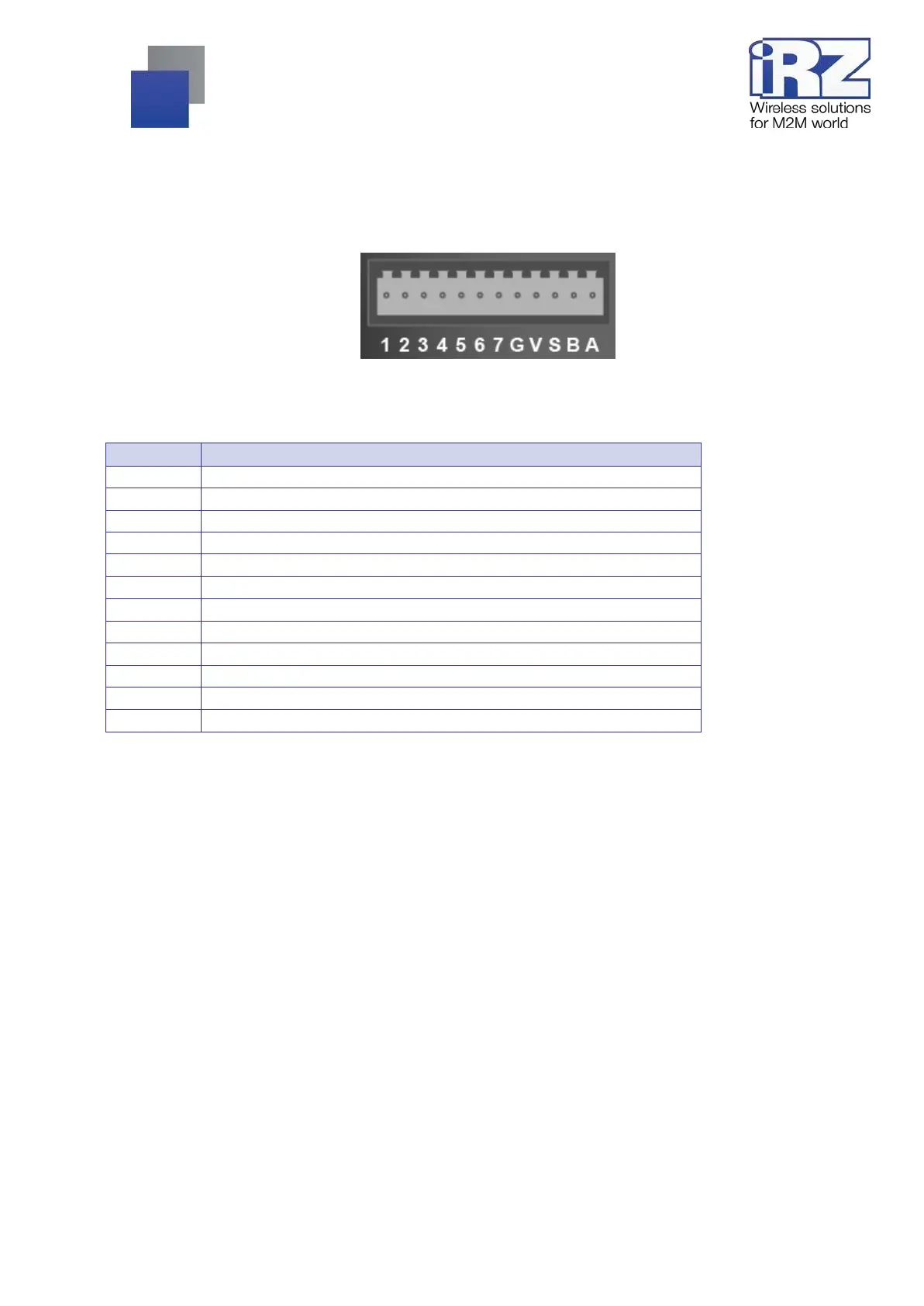

Figure 6.
Interfac
e Connector
Table 6.
Interface Co
nnector Pin Assignm
ent
Pin
Purpose
1
GPIO1 contact
2
GPIO2 contact
3
GPIO3 contact
4
GPIO4 contact
5
GPIO5 contact
6
GPIO6 contact
7
GPIO7 contact
G
GND
–
negative supply voltage input/output
V
VCC
–
positive supply voltage input/output
S
Shield
–
signal wire shield contact
B
Signal B of RS485 interface
A
Signal A of RS485 interface
13
