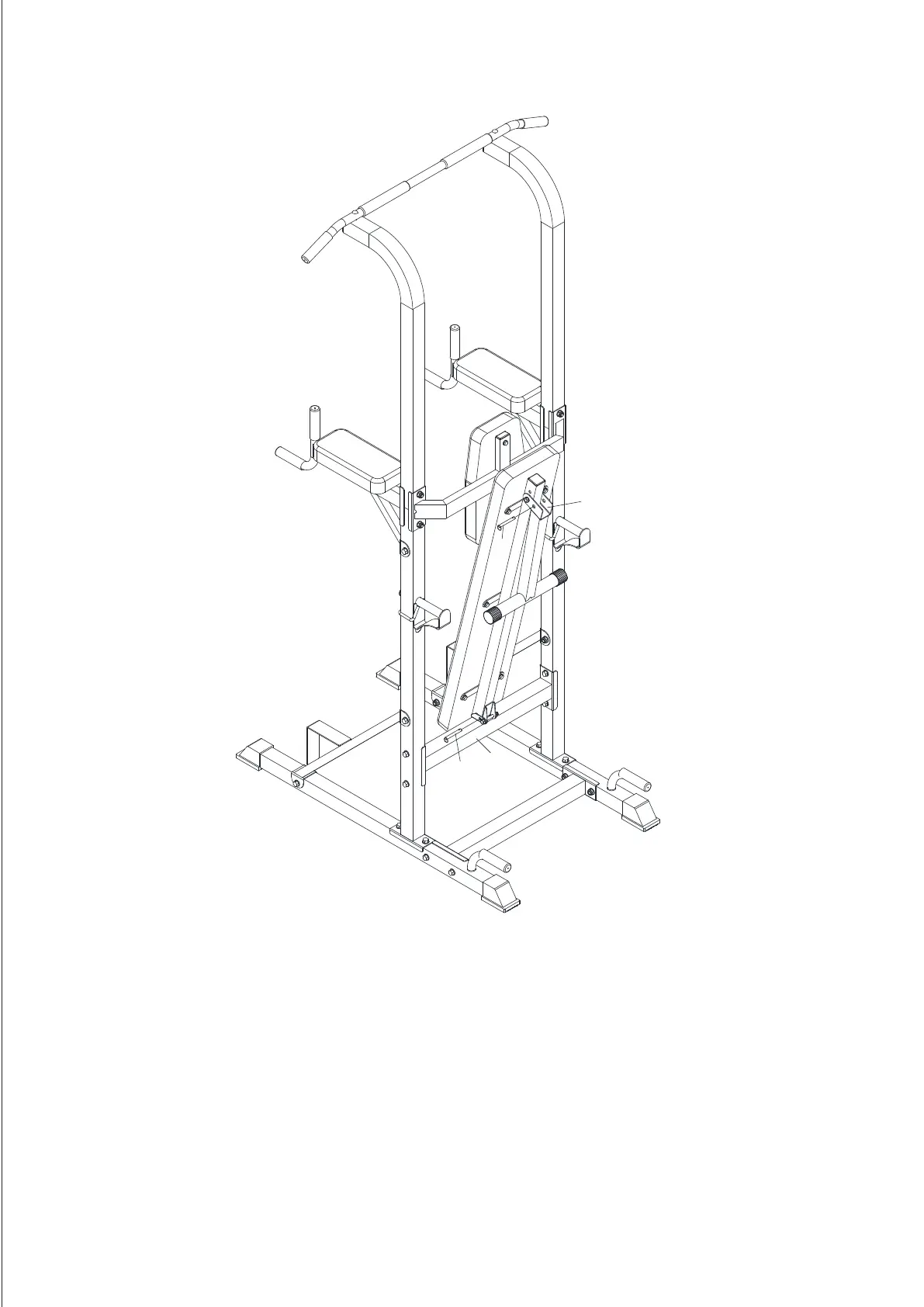

STEP 4
1. Pull out the Quick (16) from Upper Connect Tube (11) and Bench Support Frame
(11) and fold them, using Quick (16) to lock.
-5-
ASSEMBLY INSTRUCTION
16
6
16
11
