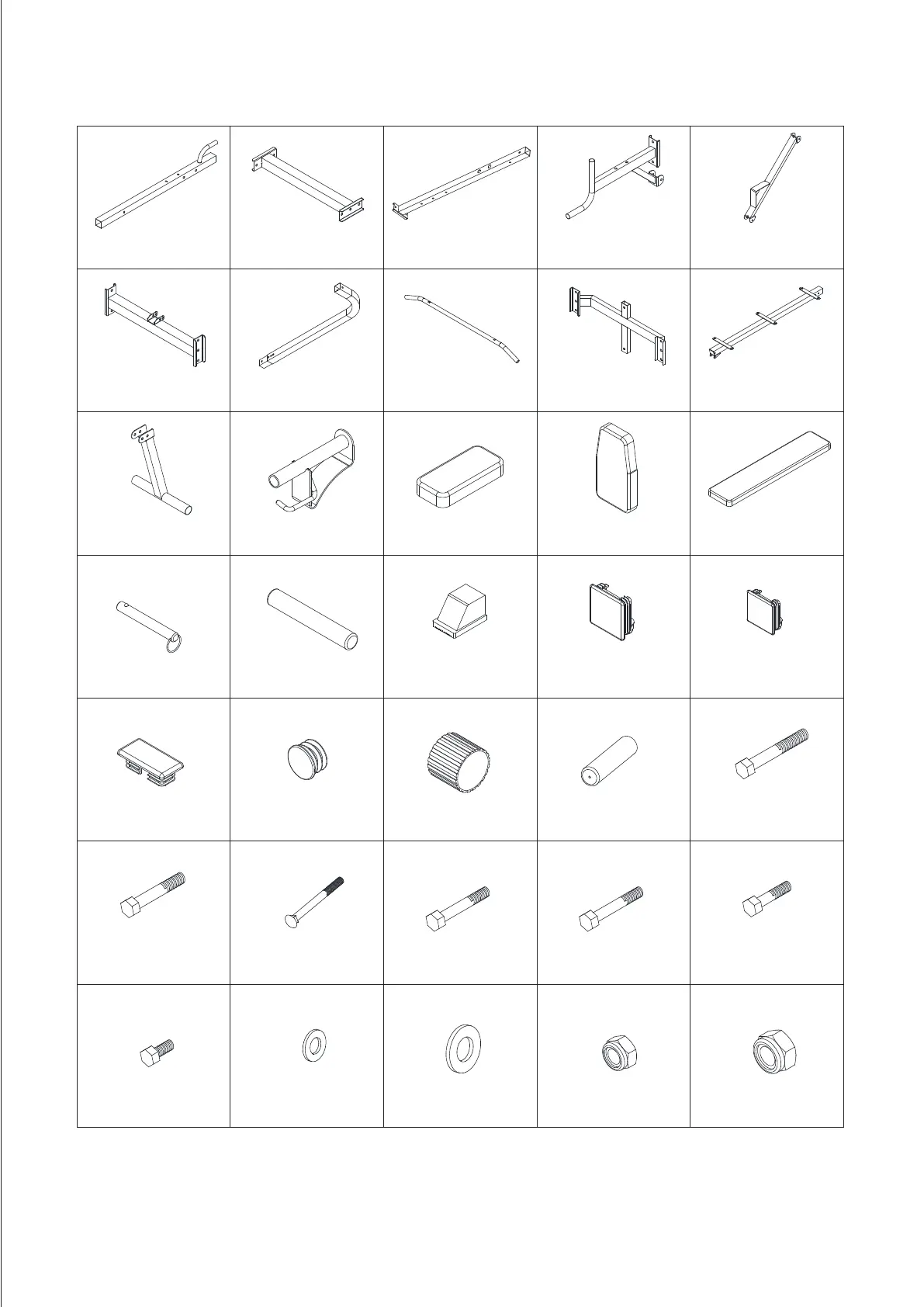

ISE POWER TOWER - Parts List Drawings

M8X 5mm Carriage
Bolt 2pcs
M8 Nylon Locknut
4pcs
Hex Bolt M10X70mm
10pcs
Hex Bolt M10X65mm
12pcs
9 10
11 12 14 1513
PARTS LIST DRAWINGS
-1-
Down Upright Frame
2pcs
1
2 3
4
M8 Washer
18pcs
M10 Nylon Locknut
22pcs
Bottom Tube
2pcs
50mm Square End
Plug 2pcs
Handle Tube
2pcs
Upper Connect Tube
1pc
High Pull
1pc
Arm Cushion
2pcs
50mm Square End
Cap 4pcs
Hand Grip
8pcs
Hex Bolt M8X65mm
4pcs
Push-up Bar
2pcs
Up Upright Frame
2pcs
Foam
2pcs
Under Connect Tube
1pc
M10 Washer
44pcs
5
6
7 8
Back Cushion Tube
1pc
Bench Frame
1pc
Bench Support Frame
1pc
Handle Tube
2pcs
Backrest Cushion
1pc
Bench Cushion
1pc
16
17
18 19 20
21 22 24 2523
26
27
28 29 30
38mm Square End
Plug 1pc
40X20mm Square
End Plug 2pcs
50mm Round End
Cap 2pcs
25mm Round End
Plug 2pcs
Quick
2pcs
31 32 34 3533
Hex Bolt M8X60mm
2pcs
Hex Bolt M8X30mm
2pcs
Bolt M8X15mm
6pcs
