1. CONTROL PANEL
CHAPTER 5. CONTROLS AND METERS

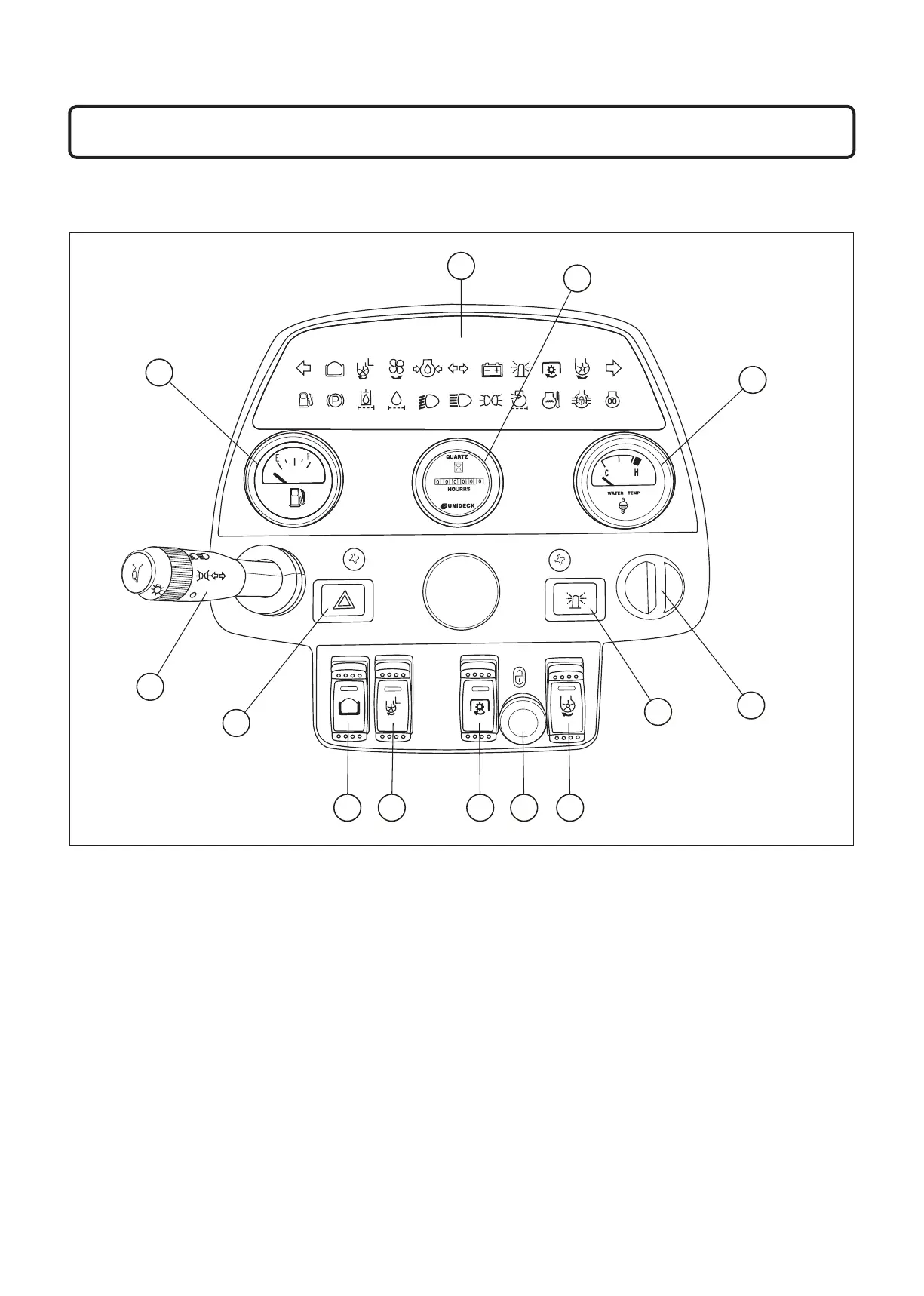

FIG. 27
11
1
2
4
10
13
12
3
8
7 6
5
9
(1) Starter switch
(2) Combination switch
(3) Beacon switch
(4) Hazard switch
(5) Blower PTO switch
(6) Mower PTO switch
(7) Blower low rotation speed switch
(8) Collector extended working switch
(9) PTO lock switch
(10) Monitor lamp array
(11) Fuel gauge
(12) Hour meter
(13) Coolant temperature gauge
