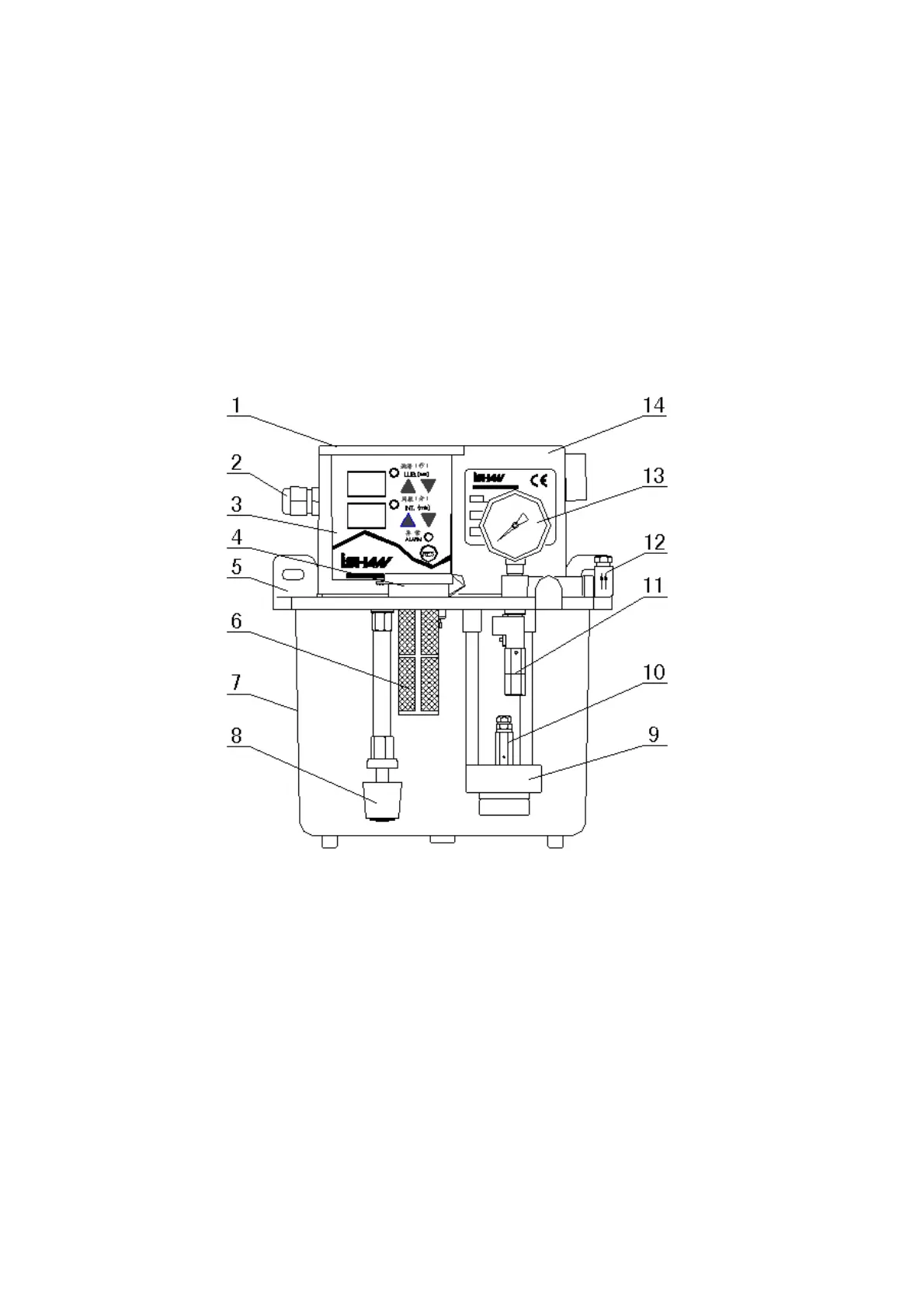

2-2 Parts of lubrication unit
1 Cover 8 Level switch
2 Cable gland 9 Gear pump
3 Control panel 10 Relief valve
4 Oil tank cap 11 Dump valve(for A2)
5 Mounting board 12 Elbow adapter
6 Oil inlet filter 13 Pressure gauge
7 Reservoir 14 Housing
Fig.1
