2-4 Installation
2-4.1 Positioning and mounting

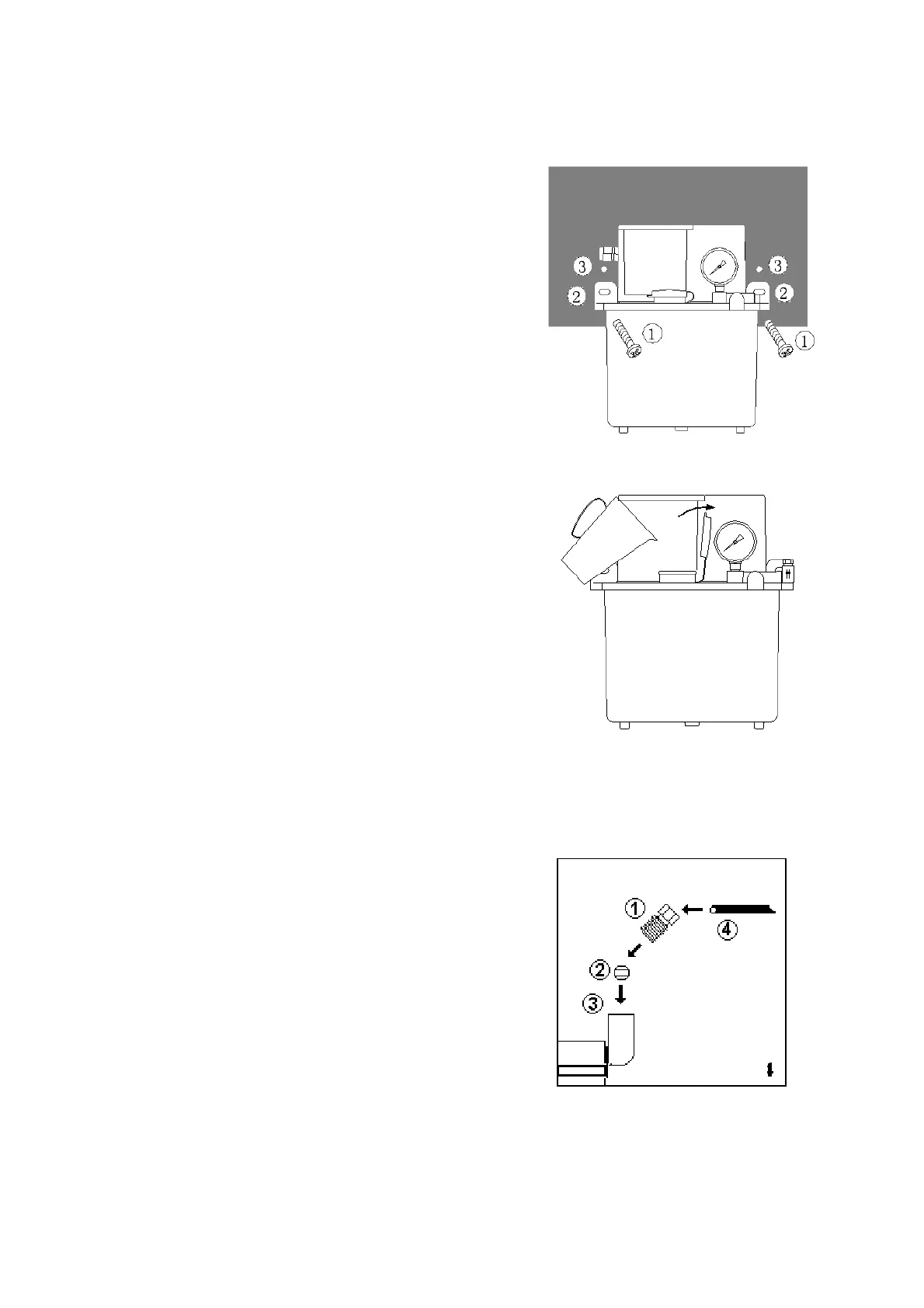

(Fig.2)The lubrication unit is attached to the
intended mounting location (3) using appropriate
fastening materials (1).The mounting dimensions of
fixing holes for 2L are measured between 172 to
180mm ; 3L between 190 to 205mm ; 4L between
230 to 250mm. The installation location should be
spaced between 0.6m to 1.7m above the ground.
Fig.2
2-4.2 Filling Oil
Remove the oil tank cap and fill clean and
non-used oil into the tank and add up to the MAX
mark (Fig. 3). Please note that only use permitted
range of oil viscosity between 30cSt to 250cSt.
Warning!
Motor jammed or burned due to high
resistance which caused by delivering higher than an
oil viscosity of 250cSt.
Fig.3
2-4.3 Lubrication line connection
(See Fig. 4) Solderless tube connection (double
tapered sleeves) can be used. The tube (4) must go
through compressed bushing (1) and double tapered
sleeve (2). To avoid any leaking during running
service time, it should be observed up to
1mmdistance between the tube end to the double
sleeve. Insert tube end into counterbored port (3) up
to the stop. First tighten compressed bushing
finger-tight by hand. Then turn another 11/2 turns.
Fig.4
