CCW-R-2**B INSTRUCTION MANUAL 13 APPENDIX

13-49

13.19.2 WCU Board (P-5561*)

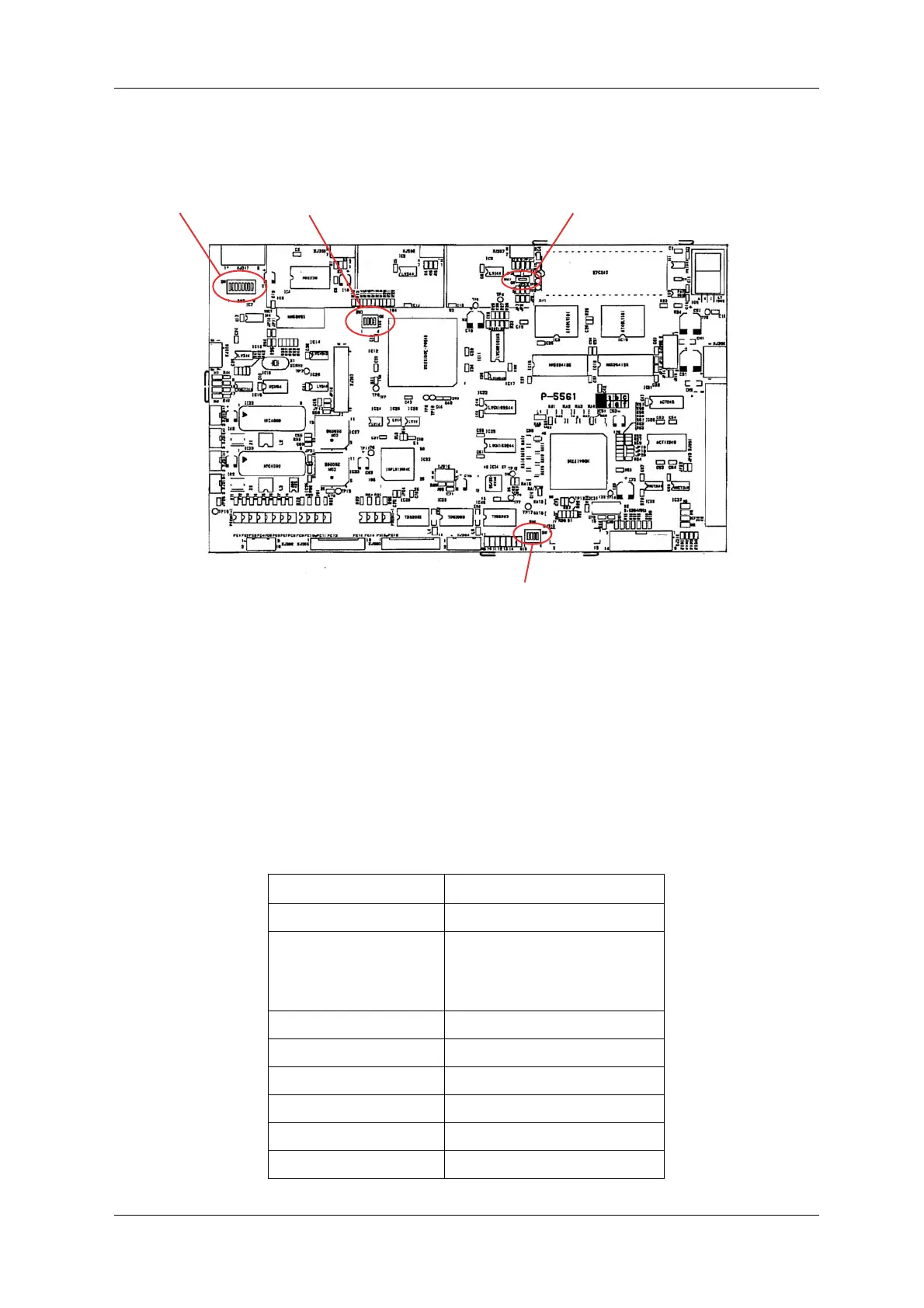

Fig.13-47 WCU Board

Functions of the board

1. Processing of combination weighing.

2. Sending of control command to each unit based on the combination weighing result.

3. Sending and receiving of various data to and from the DMU board.

DIP-SW settings

Table 13-32 Setting Items of DIP-SW

DIP-SW Setting

SW1 OFF

SW2-1 to 8 OFF

* Switches may be set to ON

depending on the specification. Check

the setting when replacing the board.

SW3-1 ON

SW3-2 OFF

SW3-3 ON

SW3-4 OFF

SW4-1 OFF

SW4-2 OFF

SW4

SW2

SW3

SW1
