Iso-Tech IDM5 User Manual

AC A / DC A
Carry Case Assembling
87
1211
9
13
10
14
 Warning – For non-contact voltage sensing, do not
touch Hazardous Live conductors with the red or black
test-probe.
• For non-contact voltage sense, place the top of
the instrument body or the red test-probe near
the conductor.
• The buzzer will sound and the number of dashes
shown on the LCD will indicate the relative electric eld
strength. If there is no indication, a voltage may still be
present.
For calibration and repair contact RS Components - the
address is given at the end of these instructions.
Cleaning
Periodically wipe the case with a dry cloth and detergent.
Do not use abrasives or solvents.
Battery Replacement
 WARNING
Disconnect the test leads from the circuit before
removing the battery cover.
Refer to the following gure to replace the batteries:
Specications
1-1 General Specications
LCD display digits:
4000-count large-scale Liquid Crystal Display.
Measuring rate: 3 times / sec.
Polarity Indication: Automatic, positive implied,
Overrange display: “OL” or “-OL”
Unit symbol indication.
Automatic power off time:
Approximately 20 minutes after power on.
Low battery indicator: is displayed.
Power requirement: 2 x 1.5V LR44 type batteries.
Battery life: 50 hours (GPA76P)
1-2 Environmental Conditions
Indoor Use Only.
Calibration: One year calibration cycle.
Operating temperature:
0°C to 30°C ( 80% RH)
30°C to 40°C ( 75% RH)
40°C to 50°C ( 45%RH)
Operating altitude: 2000m (6562 ft)
Pollution degree: 2
EMC: EN 61326-1
Dimensions (W x H x D): 56 x 12 x 112mm
Weight: 115g
Accessories: Batteries (installed), carry case and
Instruction manual.
1-3 Electrical Specications
Accuracy is ±(% reading + number of digits) at
23°C ± 5°C < 80%RH.
Storage temperature:
-20 to +60°C, 0 to 80% RH (batteries not tted).
Temperature coefcient: Add 0.2 x (Specied
accuracy) / °C, < 18°C, > 28°C.
Shock and vibration: Sinusoidal vibration per
MIL-T-28800E (5 to 55 Hz, 3g maximum).
Drop Protection: 4 feet drop onto hardwood or
concrete oor.
Overvoltage (Measurement) category:
IEC 61010-1 300V CAT

, 600V CAT

.
Measurement Category l is for measurements
performed on circuits not directly connected to mains.
Examples include: Measurements on battery powered
equipment and specially protected (internal) mains-
derived circuits.
Measurement Category ll is for measurements on
circuits directly connected to the low voltage installation.
Examples include: Household appliances, portable tools
and similar equipment.
Measurement Category lll is for measurements
performed in the building installation. Examples
include measurements on distribution boards, junction
boxes, socket-outlets and wiring and cables in the
xed installation.
Maintenance
Do not attempt to repair this Instrument. It contains no
user-serviceable parts. Repair or servicing should only be
performed by qualied personnel. This instrument should
be calibrated yearly or more frequently if used in harsh
conditions or if it is suspected of being inaccurate.
Disconnect
I
SELECT RANGEHOLD
AC A /DC A
Volt Sence
Black
Red
A
SENSE
AUTO
DC
A
Red
V
RANGE
HOLD
SELECT
V
RANGEHOLD SELECT

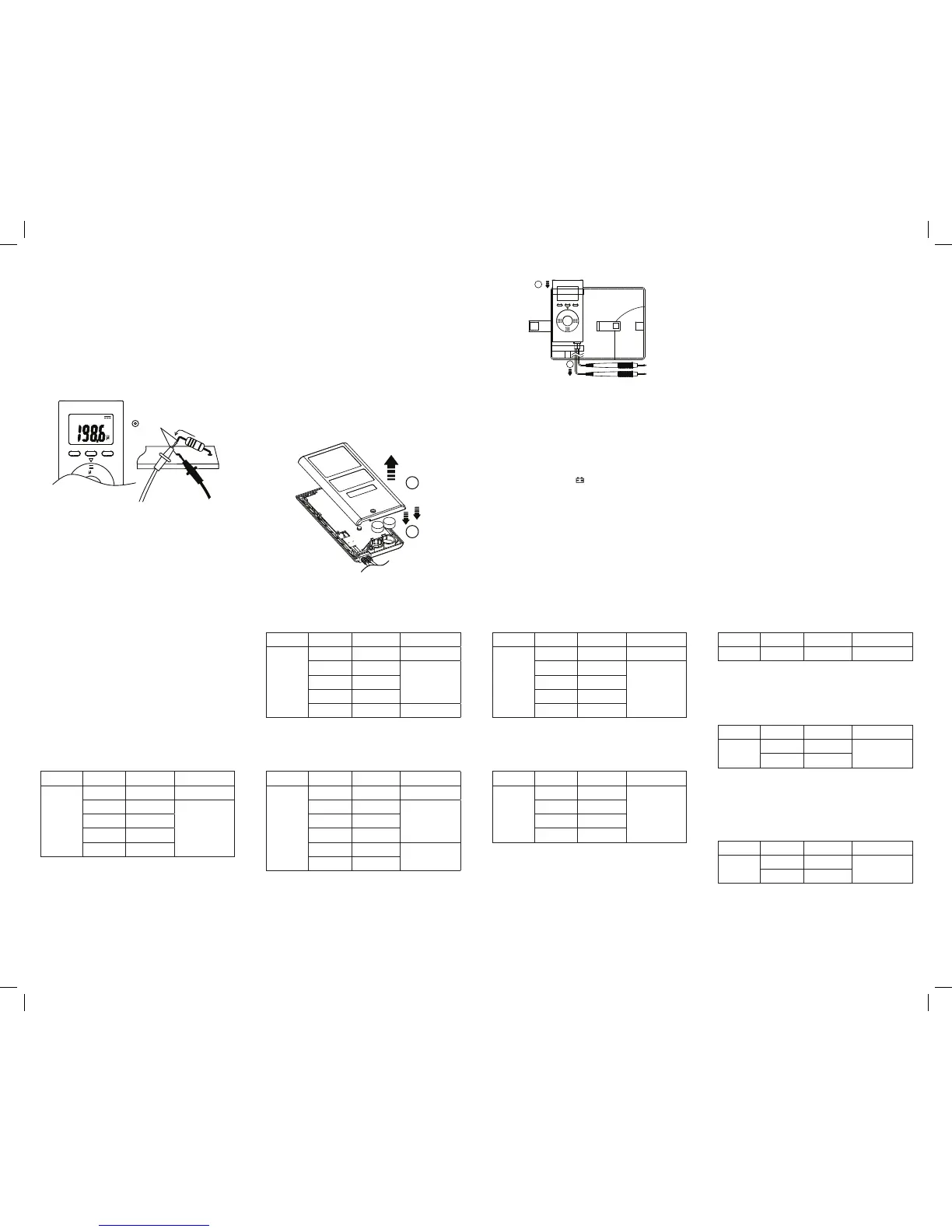

Battery Replacement
1
Carry Case Assembling
1
2
2
RANGEHOLD SELECT
Battery Replacement
1
Carry Case Assembling
1
2
2
Function Range Resolution Accuracy
ACV
400.0mV 0.1mV ± (1.5%+ 5 D)
4.000V 0.001V
± (0.9%+ 5 D)
40.00V 0.01V
400.0V 0.1V
600V 1V
Function Range Resolution Accuracy
Cap
40.00nF 0.01nF ±(5%+ 0.4nF )
400.0nF 0.1nF
±(2.9%+ 5 D)
4.000µF 0.001µF
40.00µF 0.01µF
400.0µF 0.1µF
Function Range Resolution Accuracy
ACA
400.0µA 0.1µA
± (1.5%+ 5 D)
4.000mA 0.001mA
Function Range Resolution Accuracy
DCA
400.0µA 0.1µA
± (0.9%+ 5 D)
4.000mA 0.001mA
Function Range Resolution Accuracy
% 0.1 - 99.9% 0.1% ± (0.5%+10 D) *
Function Range Resolution Accuracy
Hz
40.00Hz 0.01Hz
±(0.3%+ 5 D)
400.0Hz 0.1Hz
4.000KHz 0.001KHz
40.00KHz 0.01KH
Function Range Resolution Accuracy
DCV
400.0mV 0.1mV ± (0.7%+ 5 D)
4.000V 0.001V
± (0.6%+ 2 D)40.00V 0.01V
400.0V 0.1V
600V 1V ± (0.7%+ 5 D)
Function Range Resolution Accuracy
Ohm
400.0Ω 0.1Ω ± (0.9%+ 5 D)
4.000kΩ 0.001kΩ
± (0.9%+ 2 D)40.00kΩ 0.01kΩ
400.0kΩ 0.1kΩ
4.000MΩ 0.001MΩ
± (1.5%+ 5 D)
40.00MΩ* 0.01MΩ
Frequency Response: 50 to 500Hz
AC Conversion Type: AC Coupled Average sensing,
RMS Indication.
Input Impedance: 10MΩ || <100pF.
Overload protection: 600V rms.
Open Circuit Voltage: 0.4V
* Rolling of digits of less than ± 2%
Overload protection: 600V rms.
CONTINUITY CHECK
Continuity Threshold: Approx. <50Ω
Continuity Indicator: 2.7KHz Tone Buzzer.
Input Protection: 600V rms.
Measuring Time: <30sec. (400.0µF range),
<10sec. (40.0µF range), <3sec. (other range)
Overload protection: 600V rms.
*30% ≤ Duty ≤ 70%,
Square Wave (5 Hz to 1KHz)
Sensitivity: 1.5Vp-p
Overload protection: 600V rms.
Frequency Response: 50 to 500Hz
AC Conversion Type: AC Coupled Average Sensing,
RMS Indicating.
Input Impedance: Approx. 3KΩ
Overload protection: 600V rms.
Input Impedance: Approx. 3KΩ
Overload protection: 600V rms.
DIODE TEST
Test Current: Typical. 350µA
Open Circuit Voltage: Max. 1.8V DC
Input Protection: 600V rms.
Sensitivity: > 10Vp-p (40KHz range) > 1.5Vp-p
(other ranges)
The signal must have positive and negative portions
of a cycle.
Max. Sensitivity: 600V rms.
Overload protection: 600V rms.
Input Impedance: 10MΩ || <100pF.
Overload protection: 600V rms.
