Installation Instructions

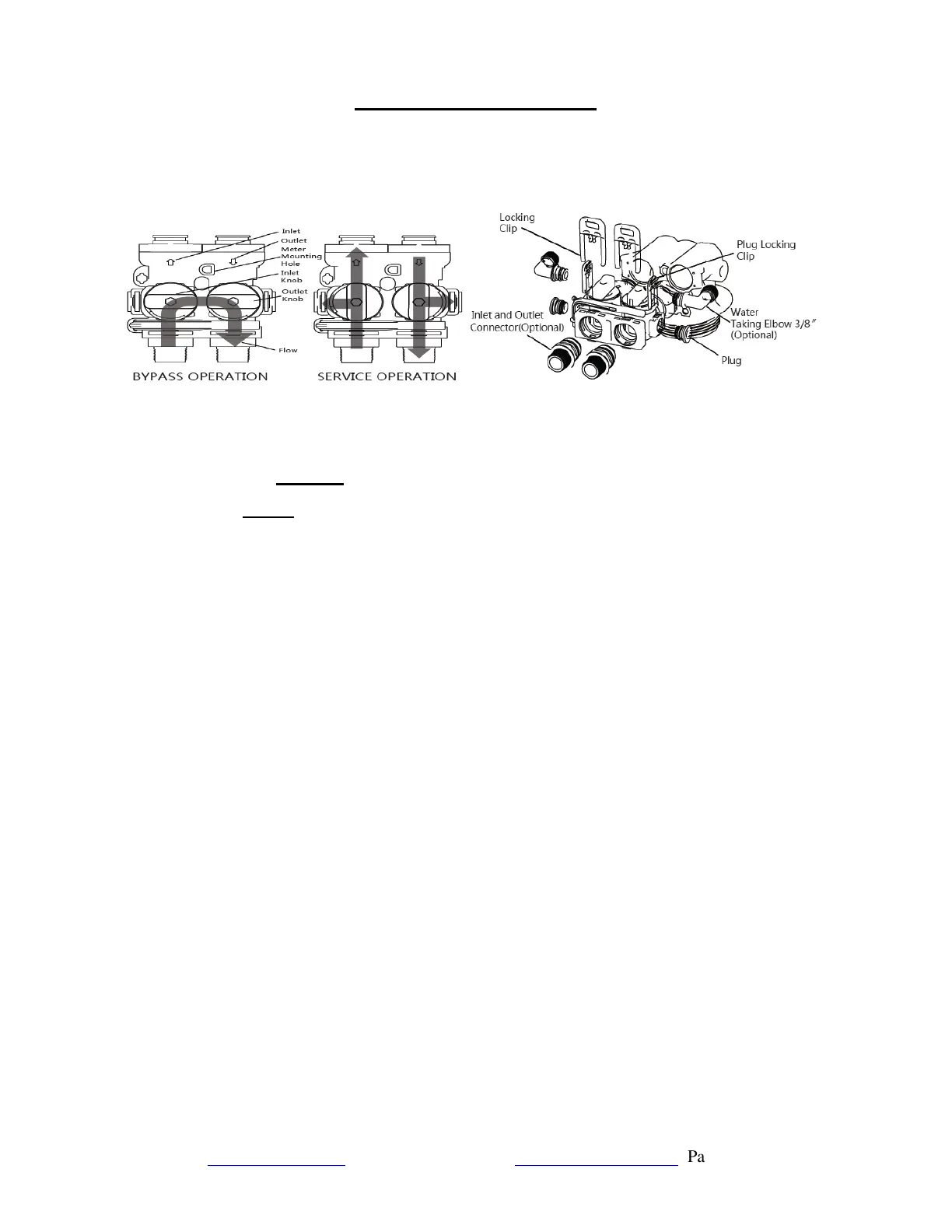

(1) General Bypass Installation
i. Hold the knob or use a bypass tool to rotate the knobs.
ii. Water supply will be bypassed when the knobs are horizontal.
iii. The bypass is in service status when knobs are oriented vertically.
iv. When the bypass is in service status, users can take raw water and filter water samples for testing at
the water taking port on either side of the bypass.
v. Mount the meter sensor into the meter sensor mounting hole. It can then achieve meter and control
functions after connecting the appropriate controller.
(2) Precautions Before Commissioning
Check whether the water inlet pipe and sewage pipe are connected as required. All piping
connections must comply with relevant national standards.
Fix the sewage hose onto the sewer pipe, but do not insert it directly into the sewer pipe. A gap of
100 mm shall be maintained with the bottom of the sewer pipe.
Check whether the pressure of the water source is within the range of 20 psi - 125 psi.
(3) Notes
i. The water pressure requirement is 20~125 psi. If the pressure is higher or lower than this, it is
recommended to install a pressure stabilizer.
ii. The operating ambient temperature requirement is 1℃~39℃. If the temperature is higher or lower
than this, heat preservation should be executed.
iii. Do not remove the clips when the system is in operation; relieve the pressure before removing the
clips.
This product should be installed out of reach of children.
