Features:
System Port: trace trigger output, 100ohm series termination.
Digital inputs: 8 channels, 10kOhm input impedance, 5V tolerant, ESD protected.
Digital outputs: 8 channels, 100ohm output series termination, ESD protected.
Analog inputs: 2 channels, 8-bit ADCs, 1MOhm input impedance, range is ±5.0V with 1:1 probe, ±50V
with a 10:1 probe, 3ns acquisition time.
Power measurement probe uses these two inputs for power measurement.
Analog outputs: 2 channels, 8-bit DACs, ±4.5V bipolar output, ±7mA drive, 100 ohm output resistance.
Optional 10MHz temperature compensated precision oscillator TCXO for a high accuracy long duration
trace/analyzer session measurements.

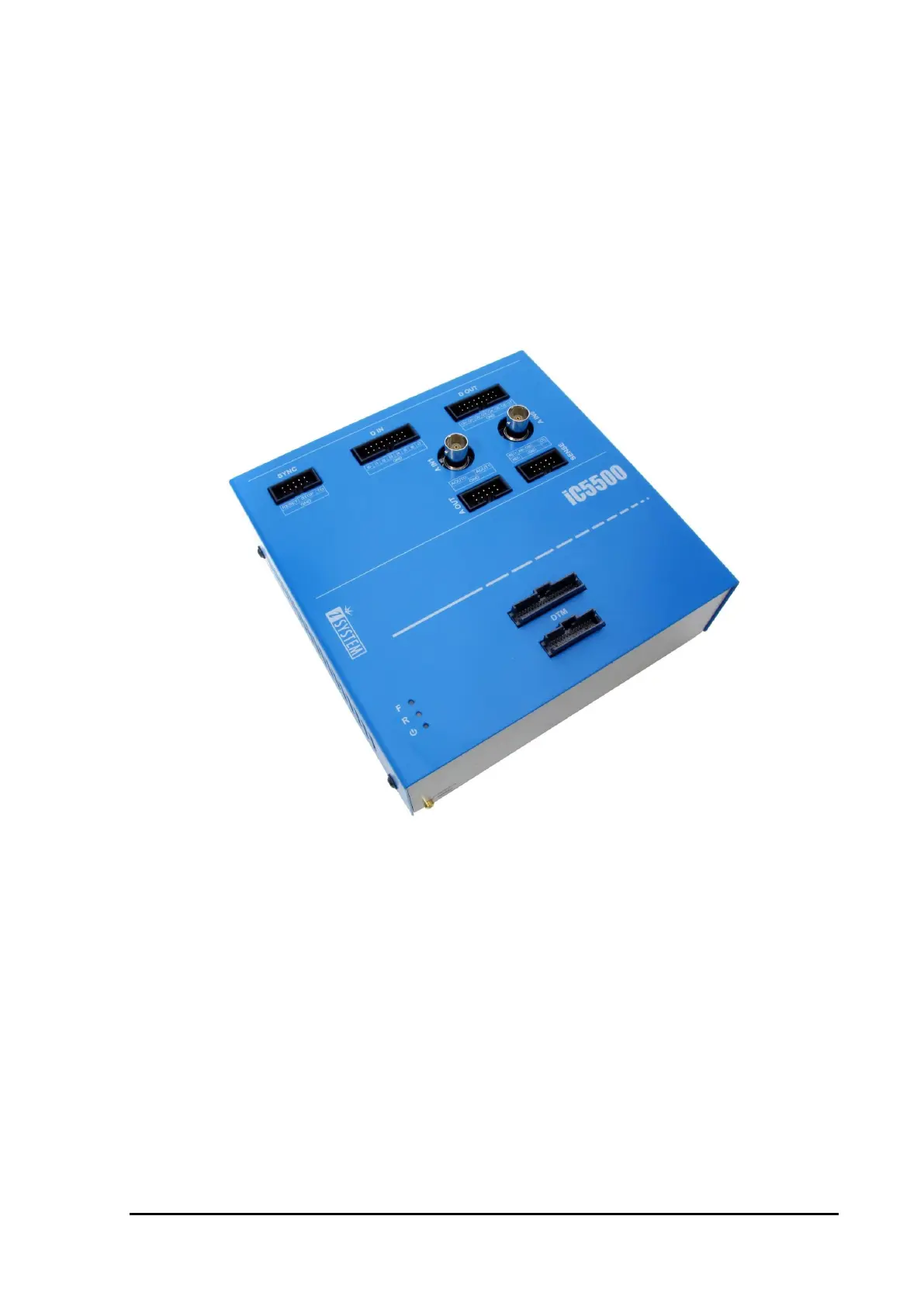

iC5500 with the I/O module assembled
All digital signals are 3.3V LVTTL compatible and are ESD protected.
All analog signals have a Schottky diode over- / undervoltage protection, except the Current Sense signals.
The maximum voltage on the Current Sense probe is 60V.
Nominal sampling rate is 1MSPS.
