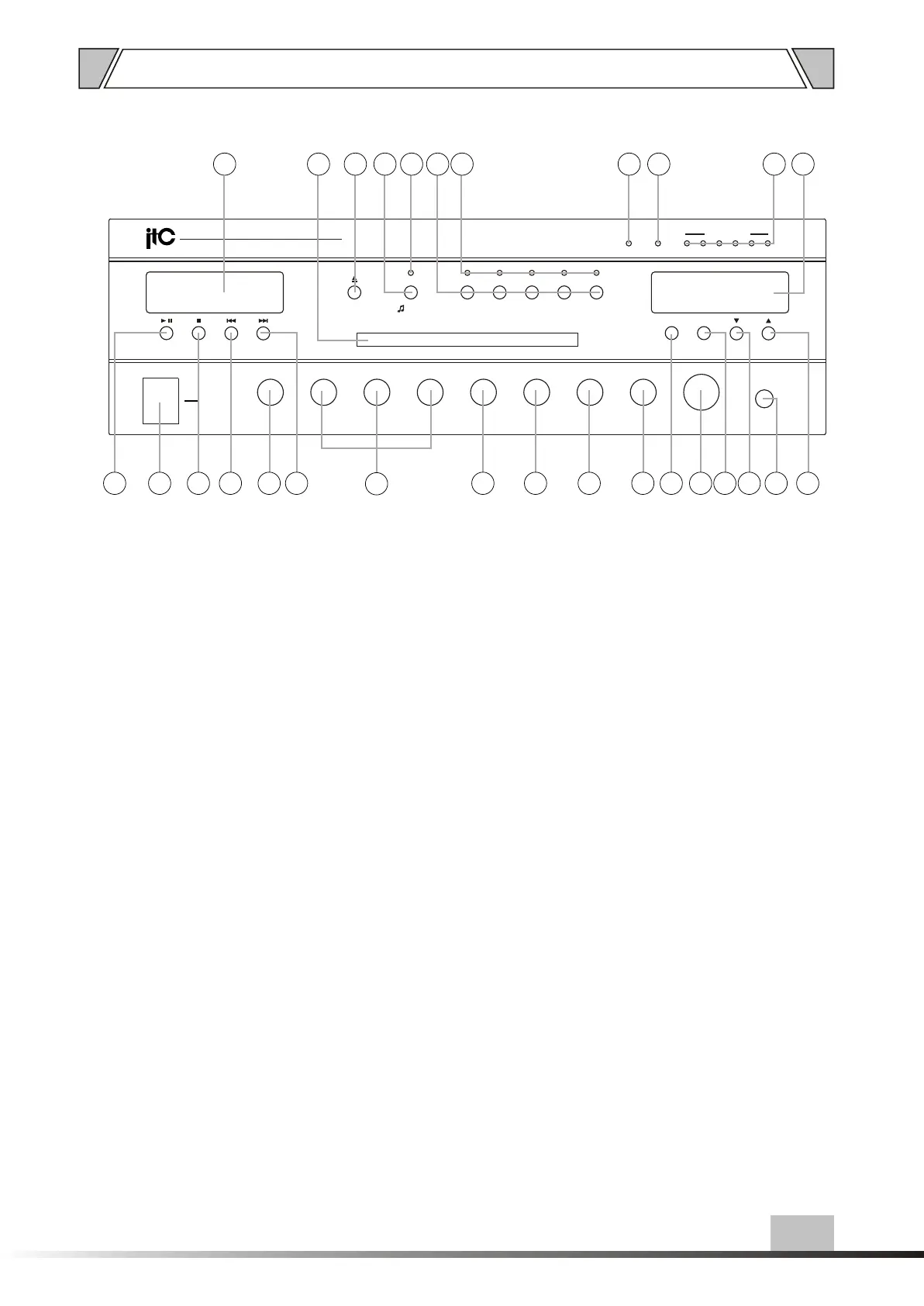

4.1 FRONT PANEL
6
1. PLAY
Play button (CD)
2. POWER SWITCH
On top of the opening Power
Press the end, power shut down
3. STOP
Stop button (CD)
4. PREVIOUS
Previous button (CD)
5. AUX1
AUX volume control (AUX 1)
6. NEXT
Next button (CD)
7. MIC1 \ MIC2 \ MIC3
MIC volume control (MIC1/MIC2/MIC3)
8. CD
CD volume control
9. TUNER
Tuner volume control
10.BASS
Adjust bass response. Rotate clockwise to increase
bass output and anticlockwise to reduce it.
11.TREBLE
Adjust treble response. Rotate clockwise to increase
treble output and anticlockwise to reduce it.
12.BAND
AM/FM Band select button (Tuner)
13.MASTER
Master volume control All input level control
4. NOMENCLATURE AND FUNCTIONS
TI-60CT/TI-120CT/TI-240CT
1 2 3 4 5 6
7
8 9 10
11 1312
14 15 16 17
18
19
2021222324252627
14.AUTO/MA
Auto/Manual band search button (Tuner)
15.DOWN
Down search channel (Tuner)
16.MIC1
MIC1 input 6.3 Microphone jack input
17.UP
UP search channel (Tuner)
18.TUNER SCREEN
Display the working state of tuner
19.OUTPUT LEVEL
Level meters 6 output level indicators
20.PROT
Protection indicator
21.POWER
Power indicator
22.(1~5) ZONE
(1~5) zone indicator
23.(1~5) ZONE
(1~5) zone button
24.CHIME
Chime indicator
25.CHIME
Chime button
26.OPEN/CLOSE
Open/Close button (CD)
27.GIVE ON
28.CD SCREEN
Display the working state of CD
28
