ITC Audio TI-60CT - Rear Panel

29 31 3230 33 34 35 36 37 38
39404142
4344
4547
OUTPUT
ZONE 2
COM 100V
ZONE 3
COM 100V
ZONE 1
COM 100V
COM
4-16 70V
MIC2
MIC3
MUTE
LINE 1 LINE 2
ANTENNA
LOOP ANTENNA
AM
GND
FM 75
ZONE 4
COM 100V
ZONE 5
COM 100V
100V
OFF
ON
PHANTOM
+48V
EMC INPUT
AUX 1
PRE OUT
AMP IN
OUT
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRICUS
-NE PAS QUVRIR
AVIS:
PUBLIC ADDRESS SYSTEM
SERIAL NO:
PRIORITY
CHIME
VOL.
PHANTOM
+48V
OFF
ON
CHIME
2 TONE
4 TONE
~230V 50HzT2AL250V
46
NOMENCLATURE AND FUCTIONSNOMENCLATURE AND FUCTIONS
7
TI-60CT/TI-120CT/TI-240CT

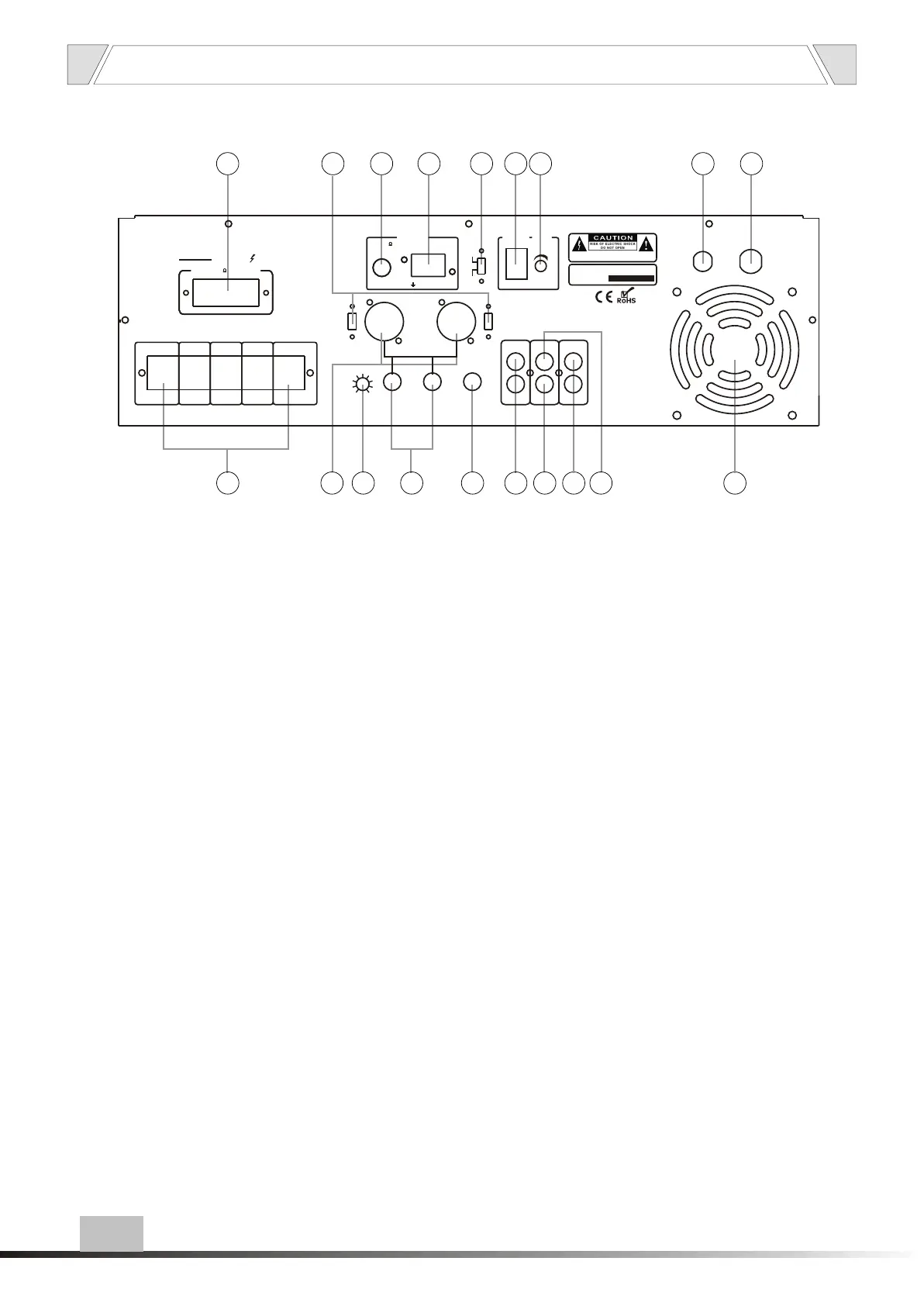

4.2 REAR PANEL
29.(1~5) ZONE OUTPUT TERMINAL (100V)
Connecting speakers
30.MIC2 \ MIC3
MIC balanced inputs
31.MUTE
Mute Microphone 1 mute level control
32. \
Line Unbalanced inputs
33.EMC
EMC Input Fire alarm signal input
34.AUX1
Auxiliary input jack, Non-equilibrium of connecting
peripherals signal
35.AMP IN
Amplifier Input
36.OUT
Line output, Non-equilibrium type, the output of
all input signals.
LINE1 LINE2
37.PRE OUT
PRE-Amplifier Output
38.COOLING FANS
39.~230V/50Hz AC POWER INPUT
40.AC FUSE
41.CHIME VOL.
Chime volume control
42.PRIORITY
Short-circuit protection
43.CHIME(2 Tone\4 Tone)
Chime(2 Tone\4 Tone) volume Control
44.AM-BAND ANTENNA
45.FM BAND 75 OHM ANTENNA
46.+48V PHANTOM SWITCHES
47.SPEAKER TERMINALS
Connectors for 4-16 ohms or 70V and 100V
speaker
