ITC TS-3400MIXD - Front;Rear Panel Introduction

- 5 -
11. With 1 RS-485 communication interface, used to connect cameras to achieve camera tracking.
12. With 1 RS-232 communication interface (speech transcription), used to connect a speech
transcription server to realize the function of speech transcription.
13. With Dante interface.

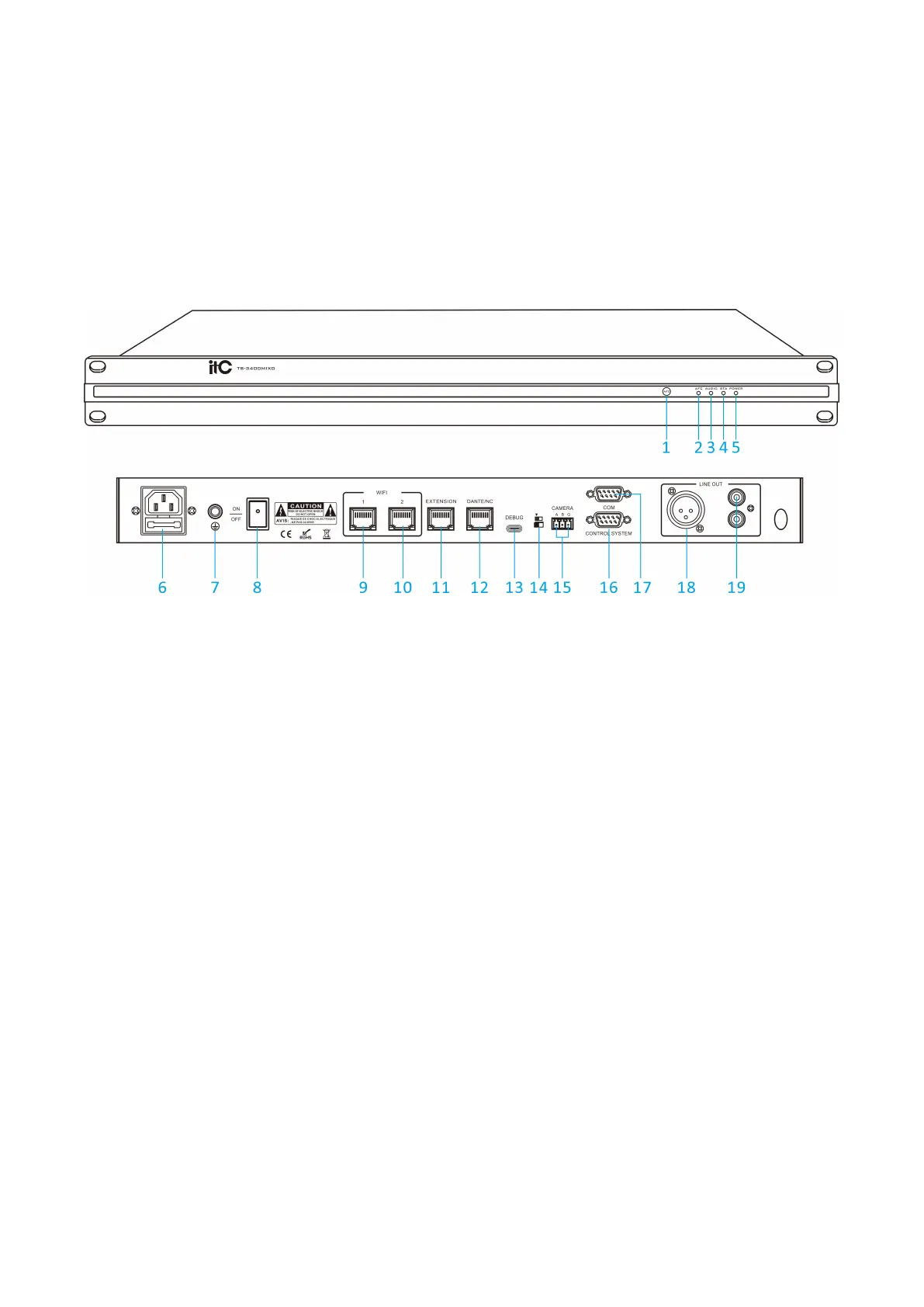

2.2 Front/Rear Panel Introduction
1.AFC touch key
2.AFC function working indicator
3.Audio signal light, with audio output, light flashing;
4.Working status indicator;
5.Power indicator;
6.AC power plug;
7.Cabinet grounding post;
8.Power switch;
9/10. WIFI network port, used to connect the wireless AP and the communication of the new
conference server;
11. EXTENSION port, connected to the extension port of the conference server;
12. DANTE port, connected to external DANTE equipment;
13. Typ-c software recording interface;
14. Recording DIP switch, turn it in the direction of the arrow during normal use;
15. Camera 485 communication interface;
16. Camera tracking RS-232 communication interface;
17. Speech transcription RS232 communication interface;
18. Line audio XLR balanced output;
19. Line audio RCA unbalanced output.
