4 Device function description
The bellowed is front panel introduction for controller VA-6200MA ( For VA-6200MS
detailed function, please refer to VA-6200MA as they are with same front panel printing ):

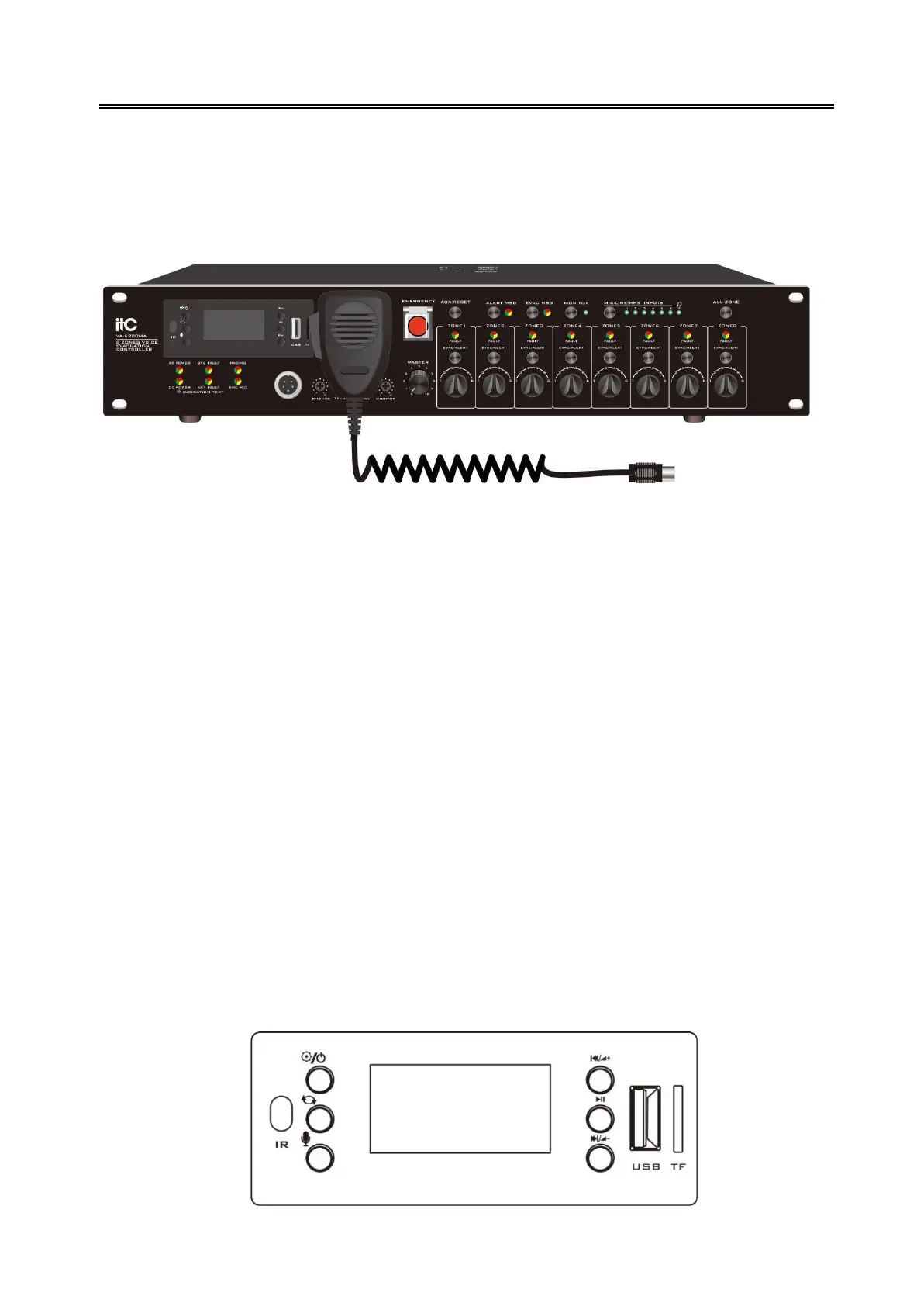

Figure 4- 1 VA-6200MA front panel design sketch
4.1 Front panel function description
Indicator and status description:
AC POWER: AC indicator,green on means normal , orange on means AC
power off.
DC POWER: DC p o w e r indicator light, green o n means 24V power connected ,
orange on means out of connect to DC 24V,light off means without configuration for
DC power.
PAGING: remote control microphone indicator, green light means that the remote
control microphone is paging the zone from the host.
SYS FAULT: orange indicates the host is faulty, flashing indicates that the host has a
new fault.
NET FAULT: green means the network is normal, orange means the network is
with failure.
EMC MIC:light off if well connected, green means PPT is paging, orange means PPT is
with failure.
MP3 independent play module function description:
