Function and Features

Up/Down Key to select the voltage mode or resistor mode.

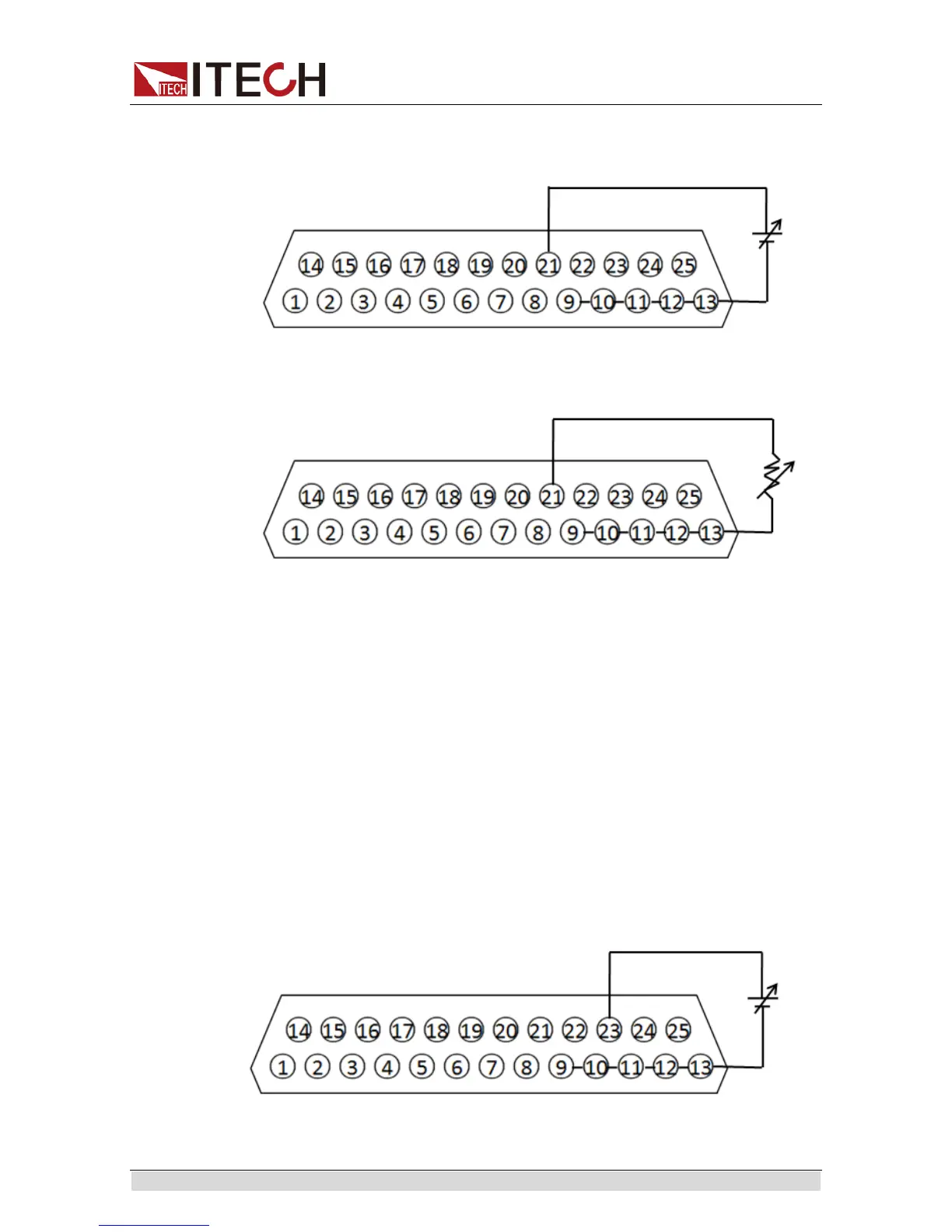

 Voltage Mode

Under voltage mode, the user can set the voltage output value of power supply

through Pin 21.

 Resistor Mode

Pin 21 and Pin 13 (GND wire) can be connected to a resistor for setting the

output voltage value of the power supply.

To set the 0~5V/0~10V or 0~5KΩ/0~10KΩ external analog setting range, open

the MENU (Menu) → CONFIG (Configure) → Ext-Ctrl (External Analog Control).

Press the Right Key to select Voltage (or Resistance).

Press the Right Key to select 5V/10V or 5KΩ/10KΩ within the full scale scope.

Current Setting (Current Program)

This function enables change of current output through external analog signal

by connecting external DC voltage (under voltage mode) or an external resistor

(under resistor mode) to Pin 23. To enable this function, the output control

should be under the external analog control mode. Used for controlling the

external voltage range of full-scale output voltage or the resistor can be

selected from 0~5V/0~10V or 0~5KΩ/0~10KΩ. To switch on the current setting,

open the MENU (Menu) → CONFIG (Configure) → Ext-Ctrl (External Analog

Control). Press the Right Key to select Voltage(or Resistance). Press the

Up/Down Key to select the voltage mode or resistor mode.

 Voltage Mode

Under the voltage mode, the user can set the voltage output value of the power

supply through Pin 23.

 Resistor Mode

Pin 23 and Pin 13 (GND wire) can be connected to a resistor for setting the
