Function and Features
Copyright© Itech Electronics Co., Ltd. 33
Start up the over-current range of surge current to quickly set up voltage.
As the input end of power supply module has large capacity, large surge current
will generate at starting moment, which will lower the power supply voltage at
the input side of DC module. In addition, this will result in CC current limit mode,
where low supply voltage will cause under-voltage protection of DC module,
making startup fails.
Set Priority as CV, CC-Loop as Low and CV-Loop as High. The voltage is not
sensitive to current at phase step and voltage edge can be realized quickly. In
addition, this avoids surge current at startup, which may cause CC mode and

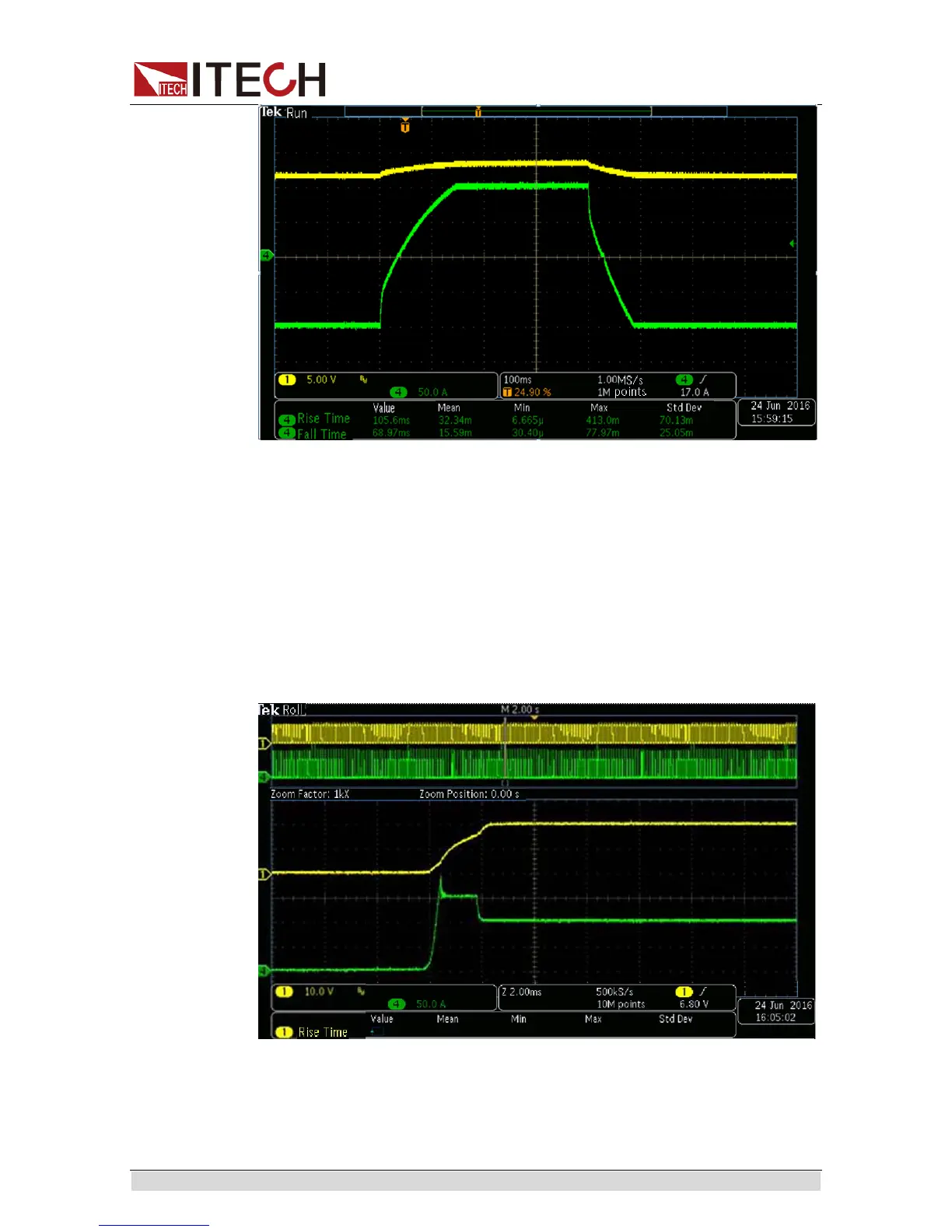

startup failure. Waveform characteristics are as shown below. Yellow means
output voltage and green means output current.
Battery charge-discharge, high speed, seamless, and no overshoot
Set Priority as CC, CC-Loop as High and CV-Loop as High to represent CC
characteristics entirely. In this way, you can quickly create current and inhibit
current overshoot so as to realize seamless and no-overshoot current switch.
