Quick Start
Copyright © ITECH Electronic Co., Ltd. 16

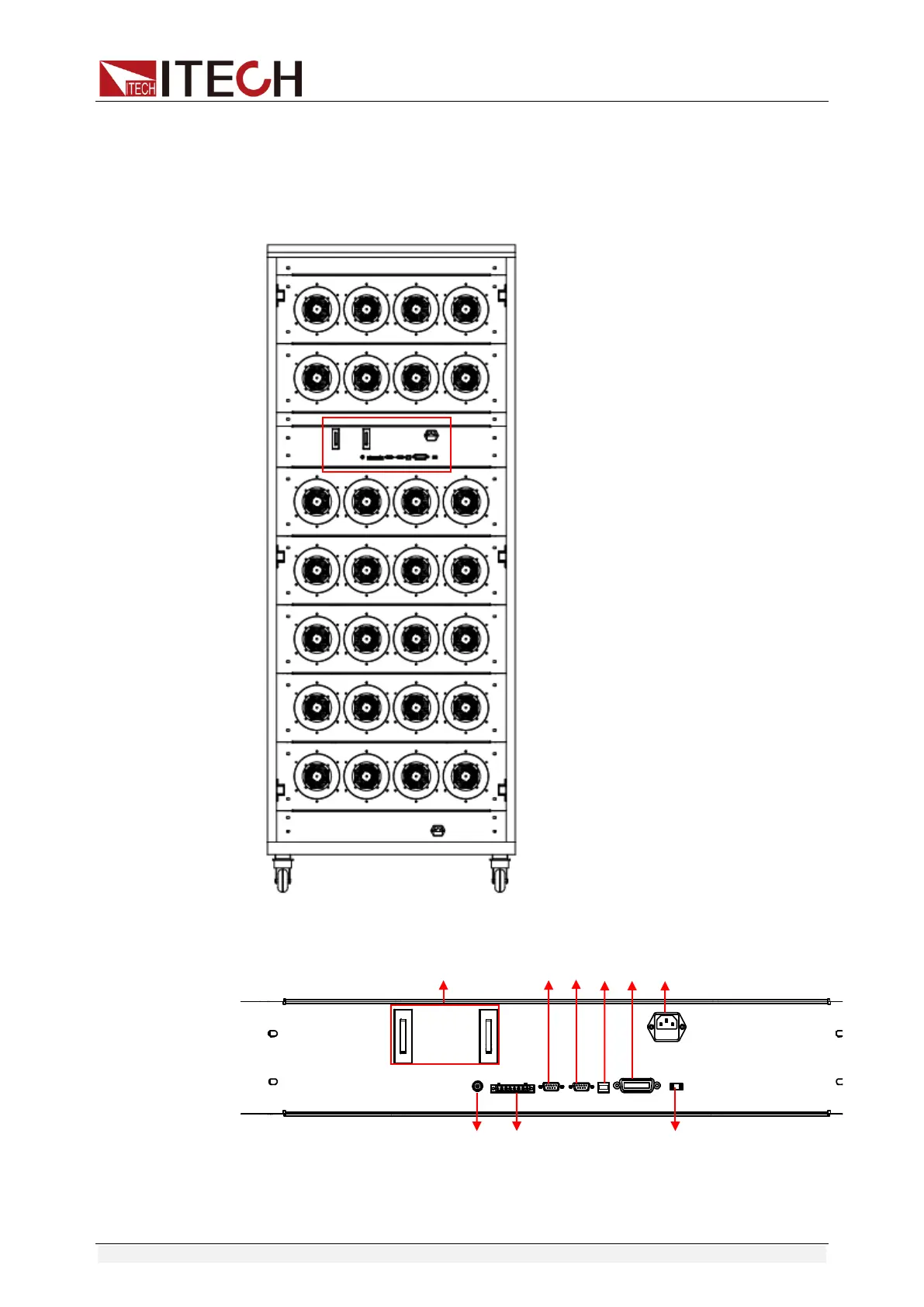

Rear panel of IT8831/IT8831B/IT8831H/IT8832/IT8832B/IT8832H/IT8833/
IT8833B/IT8833H/IT8834B/IT8834H/IT8835B/IT8835H/IT8836B/IT8836H/
IT8837B/IT8837H/IT8838B/IT8838H/IT8839B/IT8839H.
(Take IT8839H as an example, for other types, the number of fans and the
position of the red box marked in the following figure are different.)
The detail of the red box in the figure above is as shown as follows:
1. Input terminal
2. Current detection terminal
