3.3. New installation

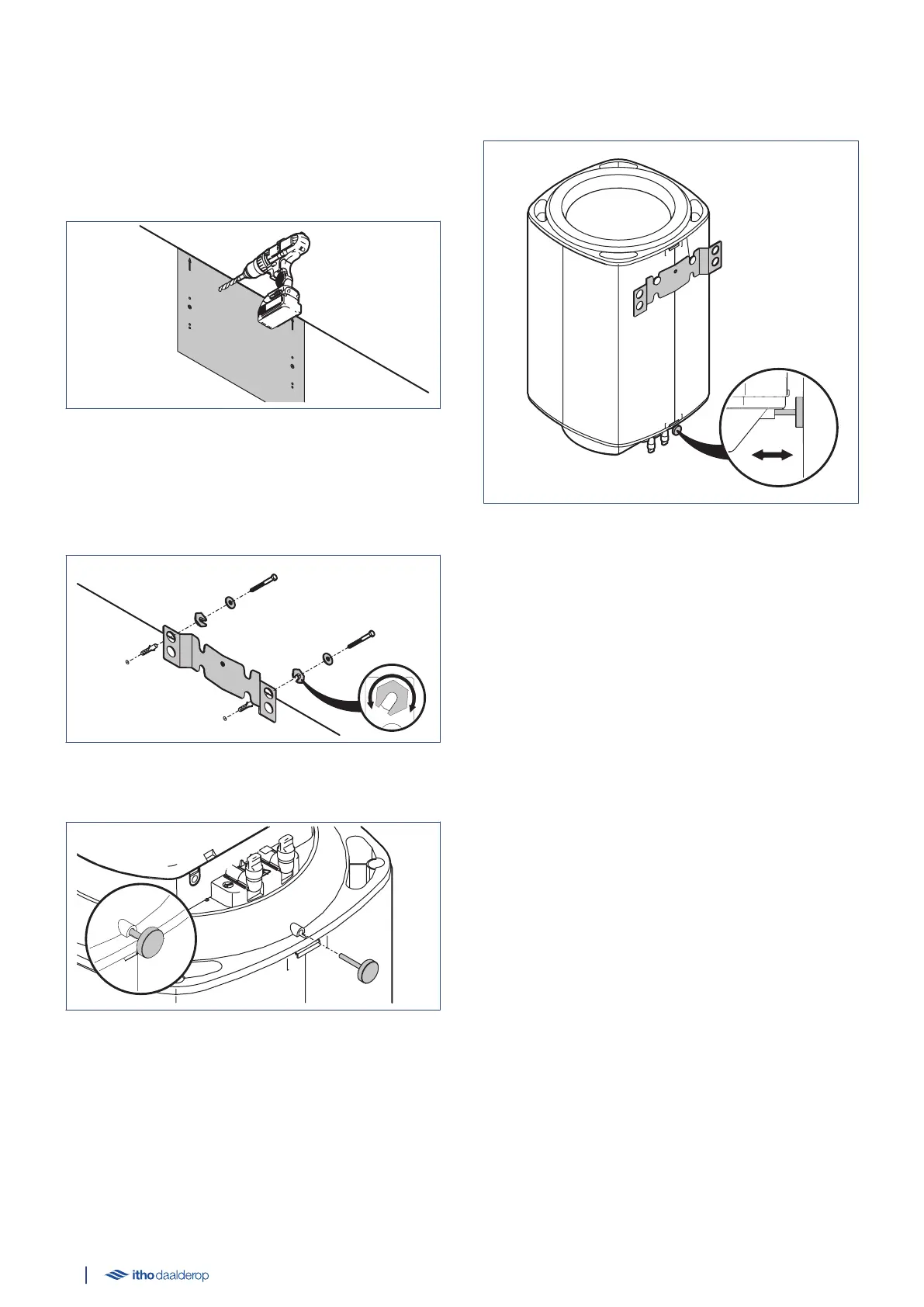

a) Position the drilling jig with the arrow up against the ceiling.
b) Mark the hole positions for the relevant heater model on the
wall.
c)
Drill the necessary holes to install
(1)
the mounting bracket.
1) Use the appropriate mounting hardware for the wall type.
d) Install the mounting bracket with the centring hole at the top.
- Always use the mounting bracket's topmost mounting
holes.
- Rotate the centring rings to adjust the bracket horizontally.
Wall mounting; example
e) Twist the levelling foot all the way to the back of the heater.
f) Mount the heater on the mounting bracket.
g) Level the heater vertically by rotating the levelling foot in or out.
