Insert the shaft (33) in the fork (16).

Note: align the pin hole in the shaft (33) to the hole in the fork (16).

Insert the fastening pin (31) with a punch and a hammer.

Apply prescribed sealant on the plug thread (32).

Assemble the plug (32) and tighten it to the prescribed torque.

See: sec. C.4.

Insert the bearing (12) into the transmission housing with the special tool

CA715622 and a hammer.

See: sec. E.1. (4WD mechanical drop box).

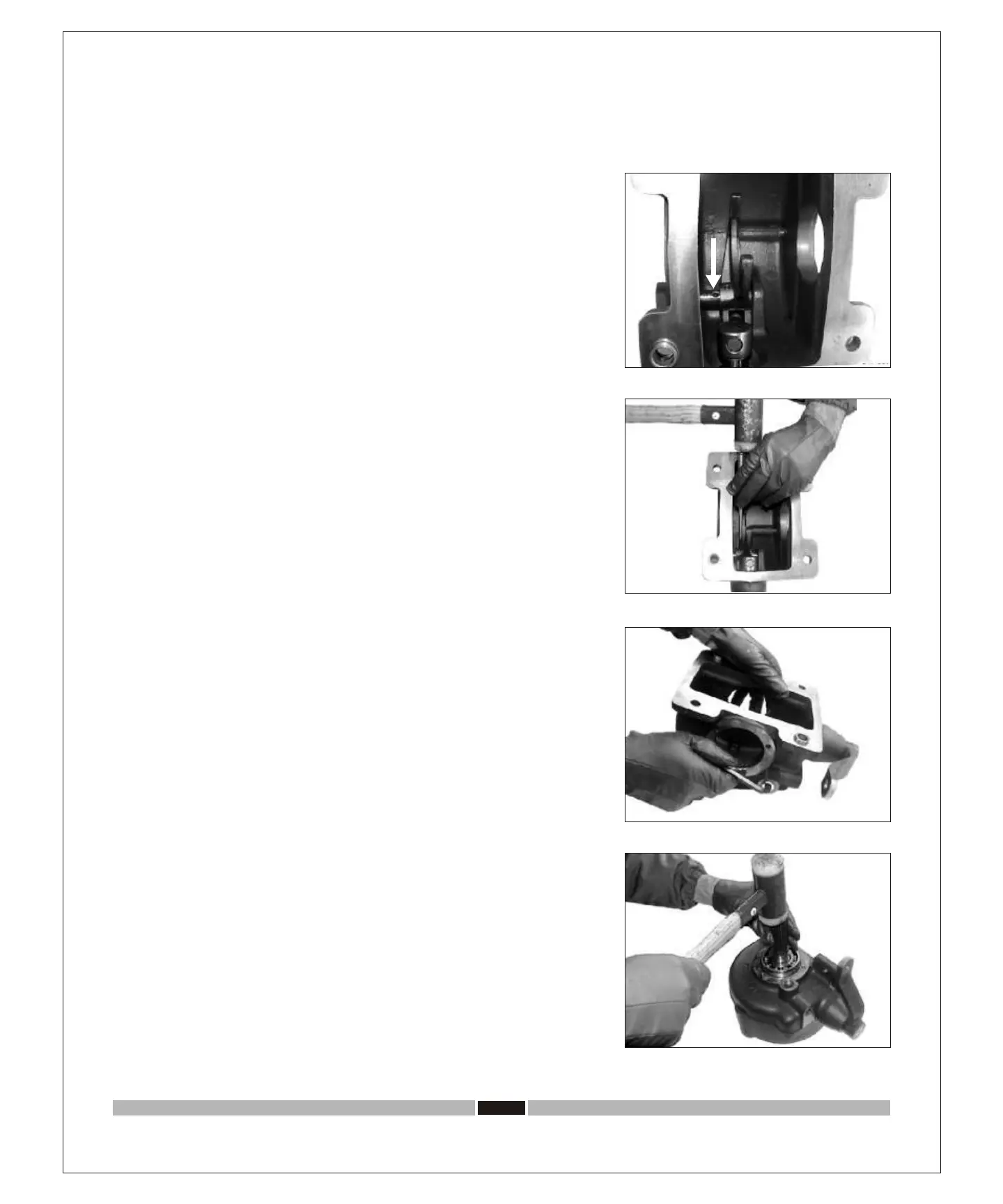

FIG. 12

FIG. 13

FIG. 14

FIG. 15
