SERVICE MANUAL
E-18
D.2.2 Assembly
1. With vertical trumpet:
Fill with grease as shown in the figure using tool
CA715844. Assemble bearing cup (4).
See: fig.1, sec. C.4 and sec. E.1 (Final drive).
2. Assemble bearing cone (4). Fill with grease again.
See: fig.1.
3. Assemble seal ring (3) with tool CA715836.
See: fig.1 and sec. E.1 (Final drive).
4. Assemble studs (2) on wheel axle (1).
5. Warm the outlined area at 120 °C for 4/5 minutes to
allow introduction of the wheel axle (1).
See: fig.1
6. Assemble wheel axle (1).
7. Turn trumpet holding axle beam.
8. Assemble seal ring (9) with tool CA715826.
See: sec. E.1 (Final drive).
9. Assemble bearing cup (10) with tool CA715827.
See: sec E.1 (Final drive).
10. Assemble bearing cone (10).
11. Assemble snap ring (11).
12. Assemble a new O-Ring (19) on ring gear (18).
13. Assemble pins (8) on trumpet (6).

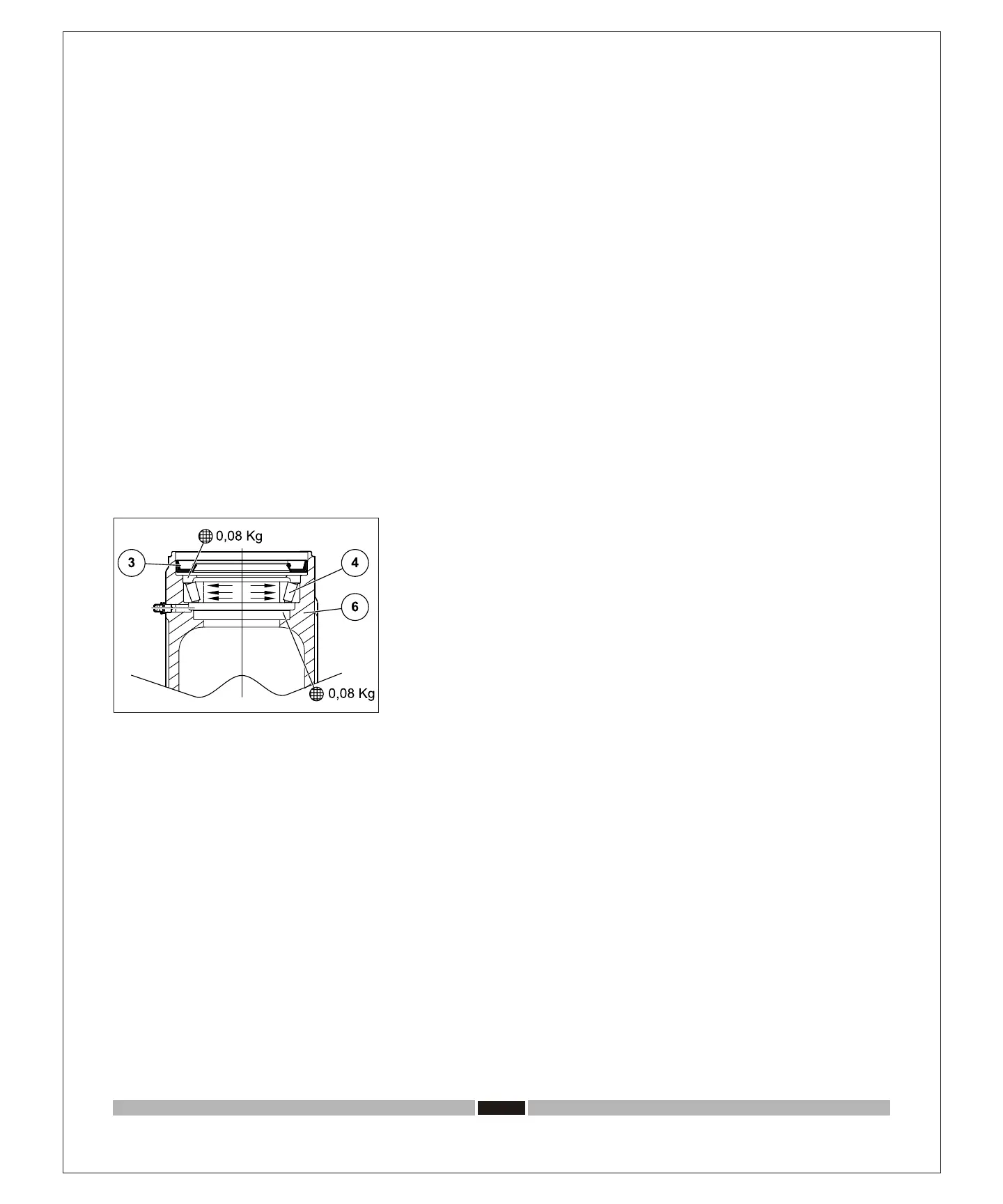

FIG. 1
ITL
