SERVICE MANUAL
E-25

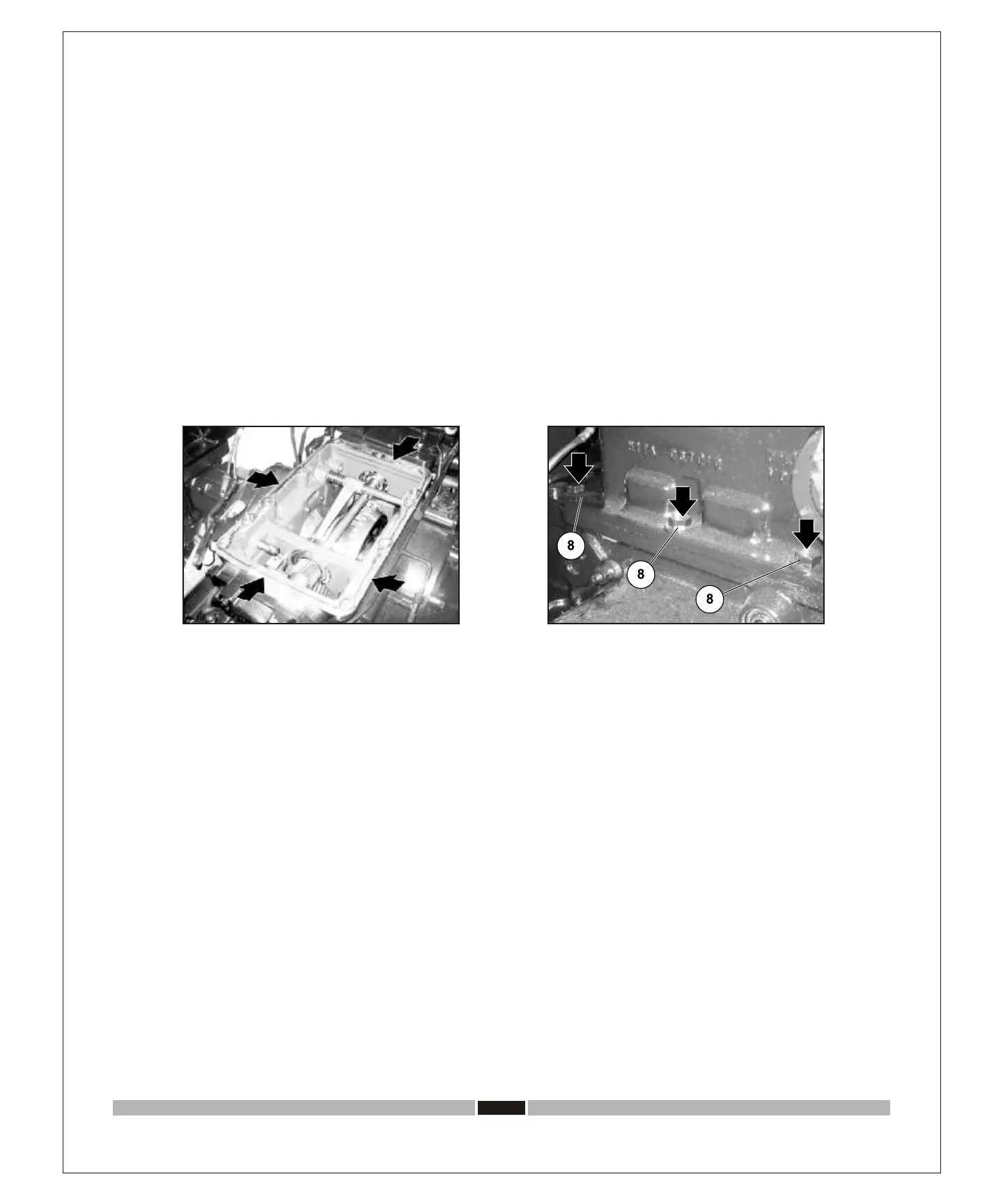

10. Clean mating surfaces of rockshaft case and differential housing.
Apply a coat of Loctite® 574 to mating surfaces.
See: fig.5.
11. Install rockshaft case (9) using a suitable lifting device.
Screw up the eight bolts (8). Torque wrench setting: 120
Nm (90 lb.ft).
Warning: during the assembly procedure do not damage the shield.
See: fig.6.
Fig.1 Fig.2
