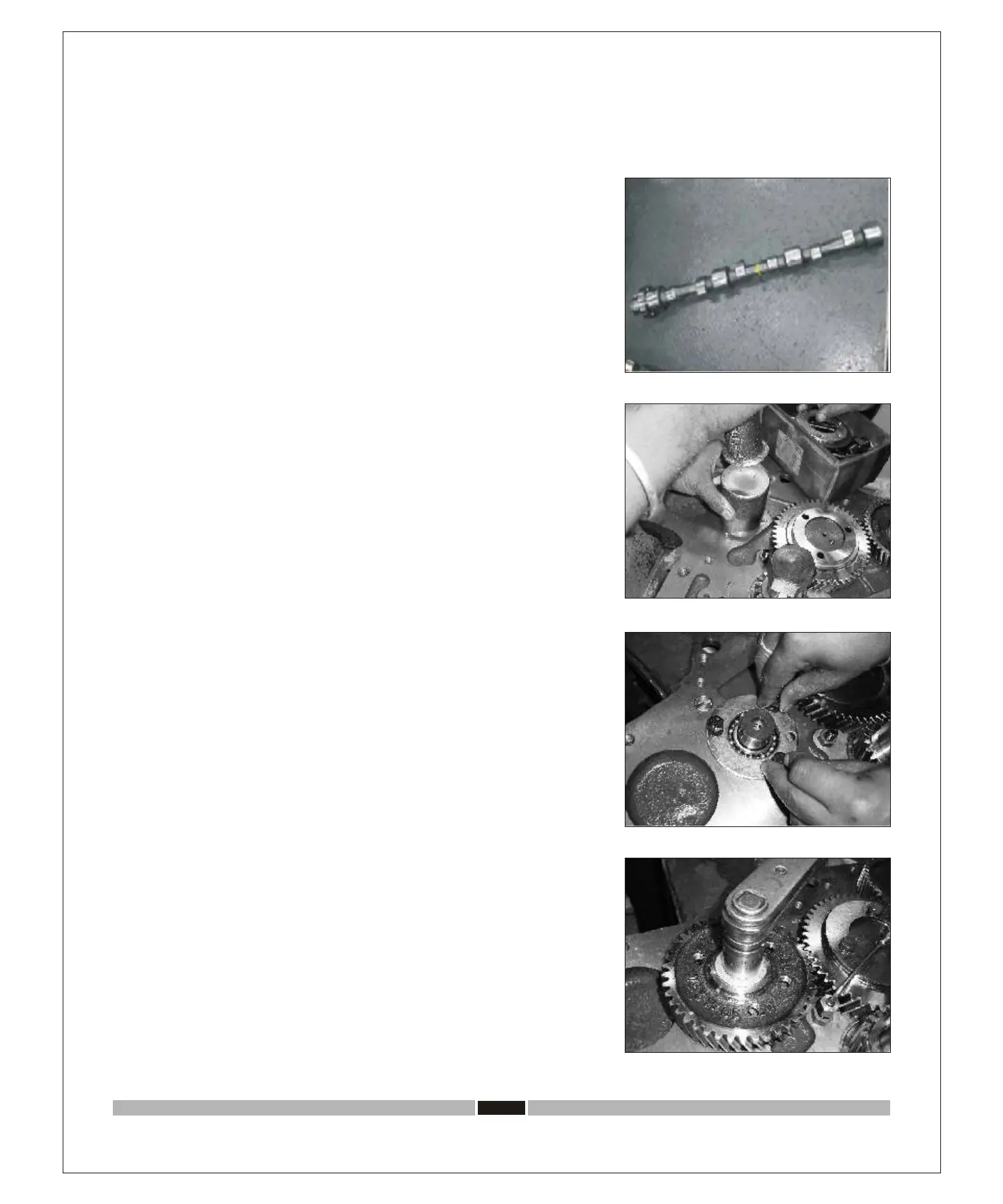

Step 35
Properly clean the cam shaft and fit radial ball bearing (6006)
Ensure that cam lobes and journels don't heavy scoring &
abnormal wear.
Step 36
Fit key 6x6x20 and slide cam shaft in the respective bore of Crankcase .
IMP:- Check free rotation of camshaft
Lubricate Cam shaft before fitting in Crankcase
Step 37
Tighten cam shaft retainer by using 3 Screws M8*14.
Ensure that step side of retainer should face towards
crankcase side.
Steps 38
Fit cam shaft gear & place plane washer on it & tighten it with
special bolt M10x1.5. Torque upto 4 kg.
