IVAC Pro - General Description of Operation

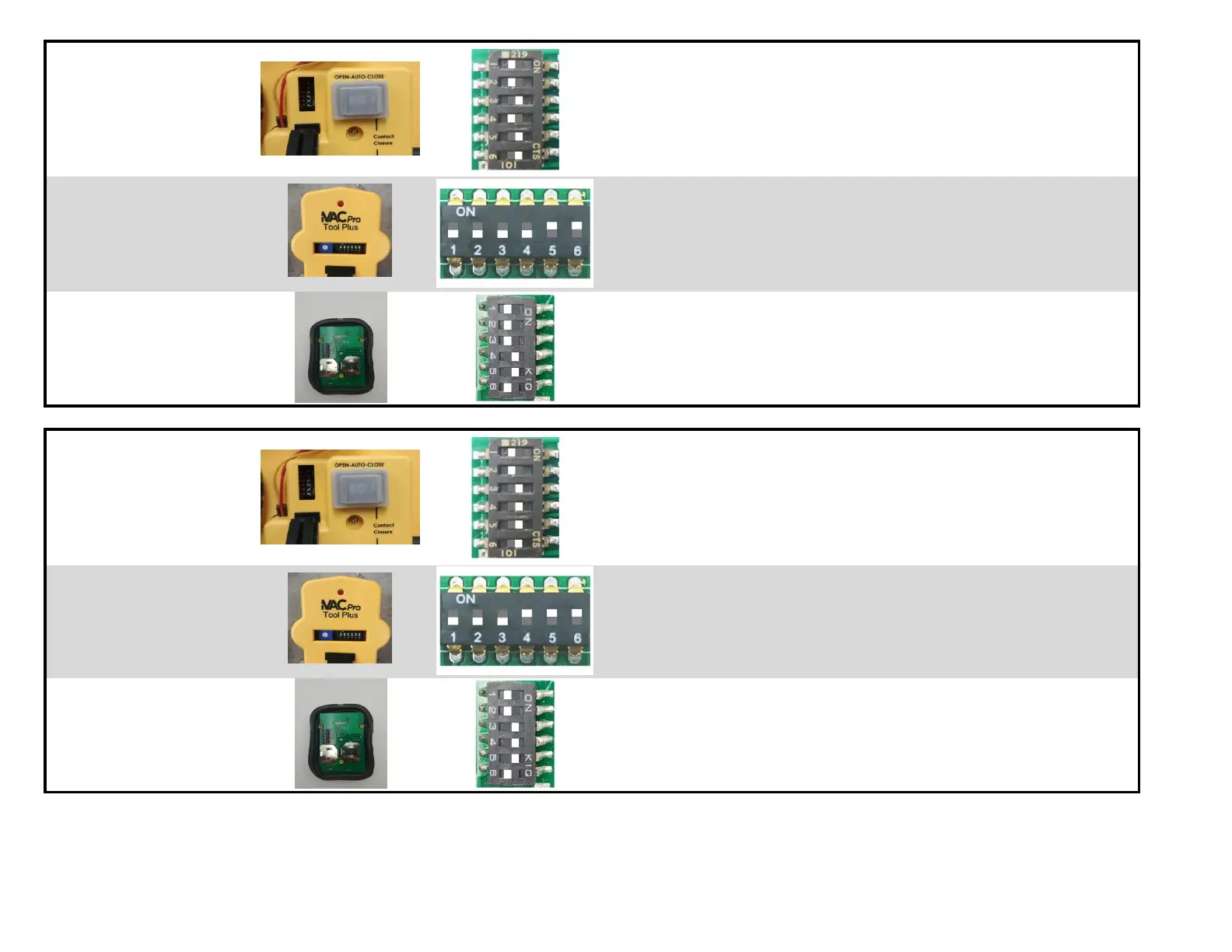

Set to System Address A (S1 = OFF, S2 = OFF)
Set to Tool Address A6 (S4 = OFF, S5 = ON, S6 = ON)
Set Delay Time to 5sec (S3 = ON)
Test it manually - Open / Close Gate A6
Set Delay Time to your preference
Set Mode to Auto - Ready to work with other iVAC modules
Set to System Address A (S1 = OFF, S2 = OFF)
Set to Tool Address A6 (S4 = OFF, S5 = ON, S6 = ON)
Test it manually - ON / OFF to control Gate A6 and Switch A
Set Mode to Auto
Test Auto Mode with tool A4 to control Gate A6 and Switch A
Set to System Address A (S1 = OFF, S2 = OFF)
Set to Tool Address A6 (S3 = OFF, S4 = ON, S5 = ON)
Test it manually - ON / OFF to control Gate A6 and Switch A
Set to System Address A (S1 = OFF, S2 = OFF)
Set to Tool Address A7 (S4 = ON, S5 = ON, S6 = ON)
Set Delay Time to 5sec (S3 = ON)
Test it manually - Open / Close Gate A7
Set Delay Time to your preference
Set Mode to Auto - Ready to work with other iVAC modules
Set to System Address A (S1 = OFF, S2 = OFF)
Set to Tool Address A7 (S4 = ON, S5 = ON, S6 = ON)
Test it manually - ON / OFF to control Gate A7 and Switch A
Set Mode to Auto
Test Auto Mode with tool A5 to control Gate A7 and Switch A
Set to System Address A (S1 = OFF, S2 = OFF)
Set to Tool Address A7 (S3 = ON, S4 = ON, S5 = ON)
Test it manually - ON / OFF to control Gate A7 and Switch A
GATE
A7
SENSOR
A6
SENSOR
A7
REMOTE
A6
REMOTE
A7
GATE
A6
