RESCUE GUIDE ‒ Technical rescue
TECHNICAL BACKUP
DRIVER AND PASSENGER COMPARTMENT
9
– Printed 692.68.328 – 1st Ed. 04/2015

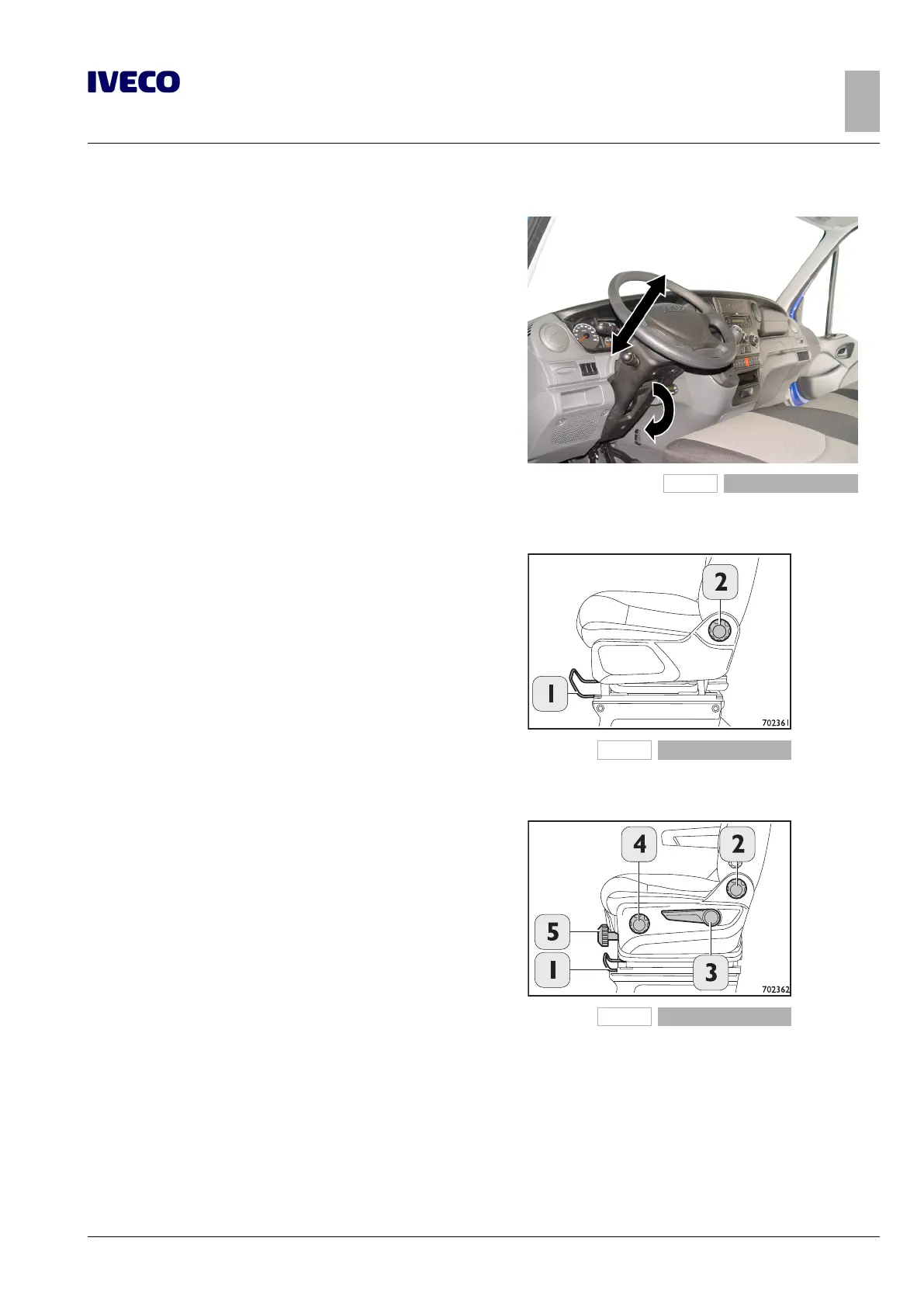

Steering wheel adjustment
226169
Figure 10
These adjustments are carried out as follows:
● Engage the parking brake.
● Release lever .
● Grasp the steering wheel with two hands, lift it or lower it until
desired position is obtained.
● Lock lever in the position required in the steering column.
Seats with two degrees of freedom
702361
Figure 11
Pull lever (1) up to release the seat in order to move it forwards
or backwards; when releasing the lever, the seat locks in the desired
position.
By turning the knob (2) forwards, the inclination of the seat de-
creases with respect to the cushion.
Seats with four degrees of freedom
702362
Figure 12
Pull lever (1) up to release the seat in order to move it forwards
or backwards; when releasing the lever, the seat locks in the desired
position.
By turning the knob (2) the user can adjust the back rest.
By turning the lower side knob (4) the inclination of the cushion can
be adjusted.
Using the side lever (3) adjusts the height of the seat (direct "ratchet"
control): moving the lever downwards lowers the seat, while moving
it upwards raises the seat.
Pre-adjustment of the seat suspension is performed by turning the
knob (5) (located at the front, under the cushion).
