24
NEW STRALIS MY2016 ‒ GUIDELINES FOR BODYBUILDERS
ELECTRONIC SUB-SYSTEMS
5.2 BODYBUILDER CONNECTORS
– Printed 692.68.697 – 5 Ed. - Base 03/2019

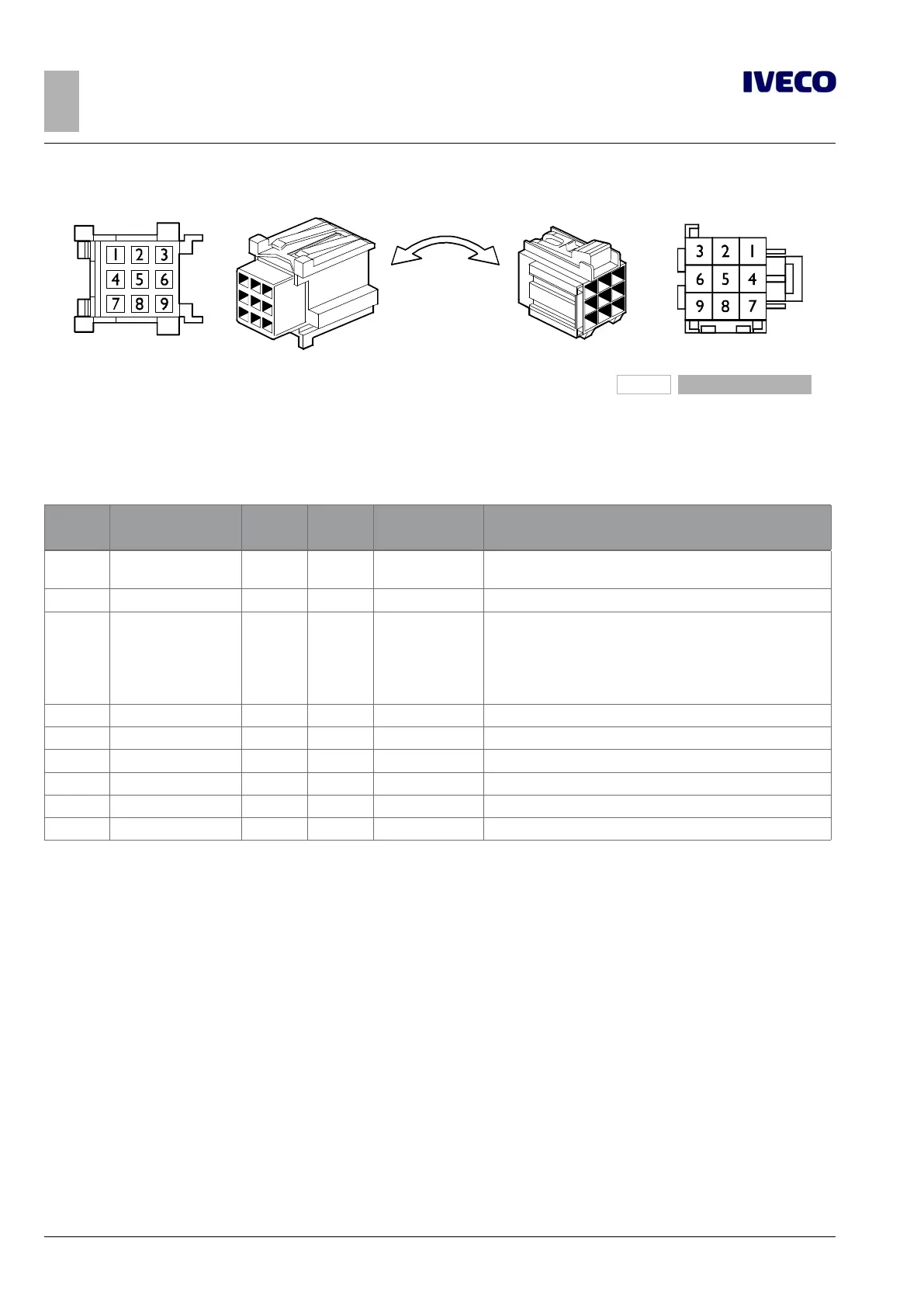

g) Optional connector 72072C: 9 pin, yellow
190412
Figure 18
A.41200681 Counterpart to be coupled (female) B. 504163547 Existing part on vehicle (male)
Only available with OPT 0384 (EM-full) installed.
Table 5.10 - Basic functions of connector 72072C
Pin Description
Wire
code
Max.
Load
Connected to Remarks
1 K30 7796
Output
10 A
(1)
K30 Protected by fuse 10 A
2 Ground 0000 Ground
3
CO (CANopen)
operational
0975
Output
0.5 A
EM X4-28
LSO (Low Side Output), activated in the case of CO initiated
(typically ~3 seconds after K15 ON)
For adjustment contact IVECO Technical Service
Open circuit = CANopen not operational
0 V = CANopen operational
4 Bodybuilder CAN CAN H EM X4-17 CANopen Truckgateway
5 CAN Gnd 0999 EM X4-09 HF Ground (High Frequency),capacitive coupled
6 Bodybuilder CAN CAN L EM X4-19 CANopen Truckgateway
7 Reserved
8 Reserved
9 Reserved
(1)
10A can be used in combination with the "Vehicle with full CAN operation" signal, connector 72072A pin 4.
B) Connectors on the chassis
The following connectors (all black) are located on the frame:
● ST52 (for Bodybuilder specific solutions)
● ST64 (for Bodybuilder specific solutions)
● 72072D (EM)
● ST91 (PTO 1)
● ST92 (PTO 2)
● ST93 (PTO3)
