MAN0062

J-TEC Associates, Inc.

Revision G

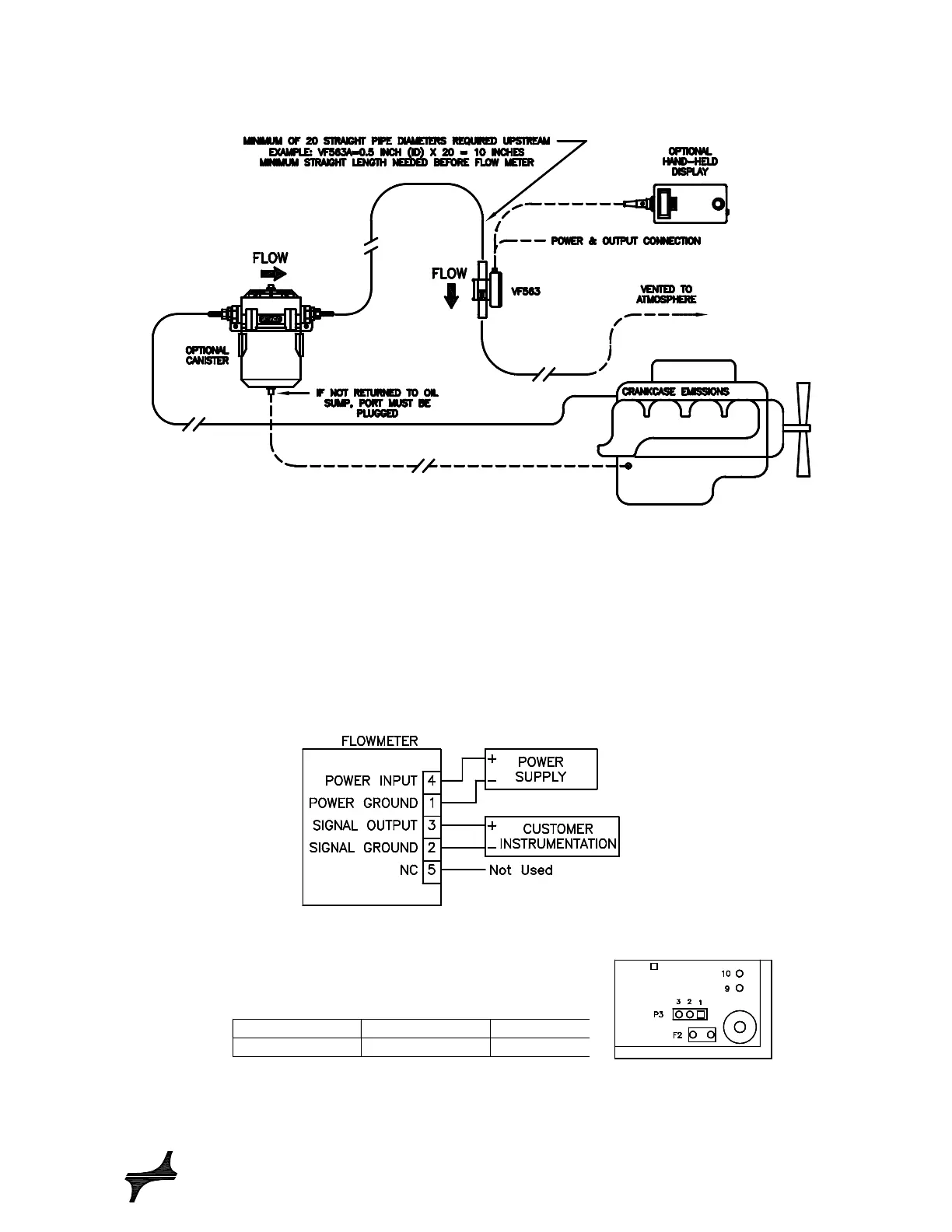

FIGURE B

Engine Blow-By Measurement System

Recommended Electrical Connections

(separate grounds for lowest measurement error)

CIRCUIT BOARD OUTPUT JUMPERS

DAA0XXX-0003

ANALOG (0-5V)

P3-2 to P3-3

DAA0XXX-0002

FREQUENCY P3-2 to P3-1
