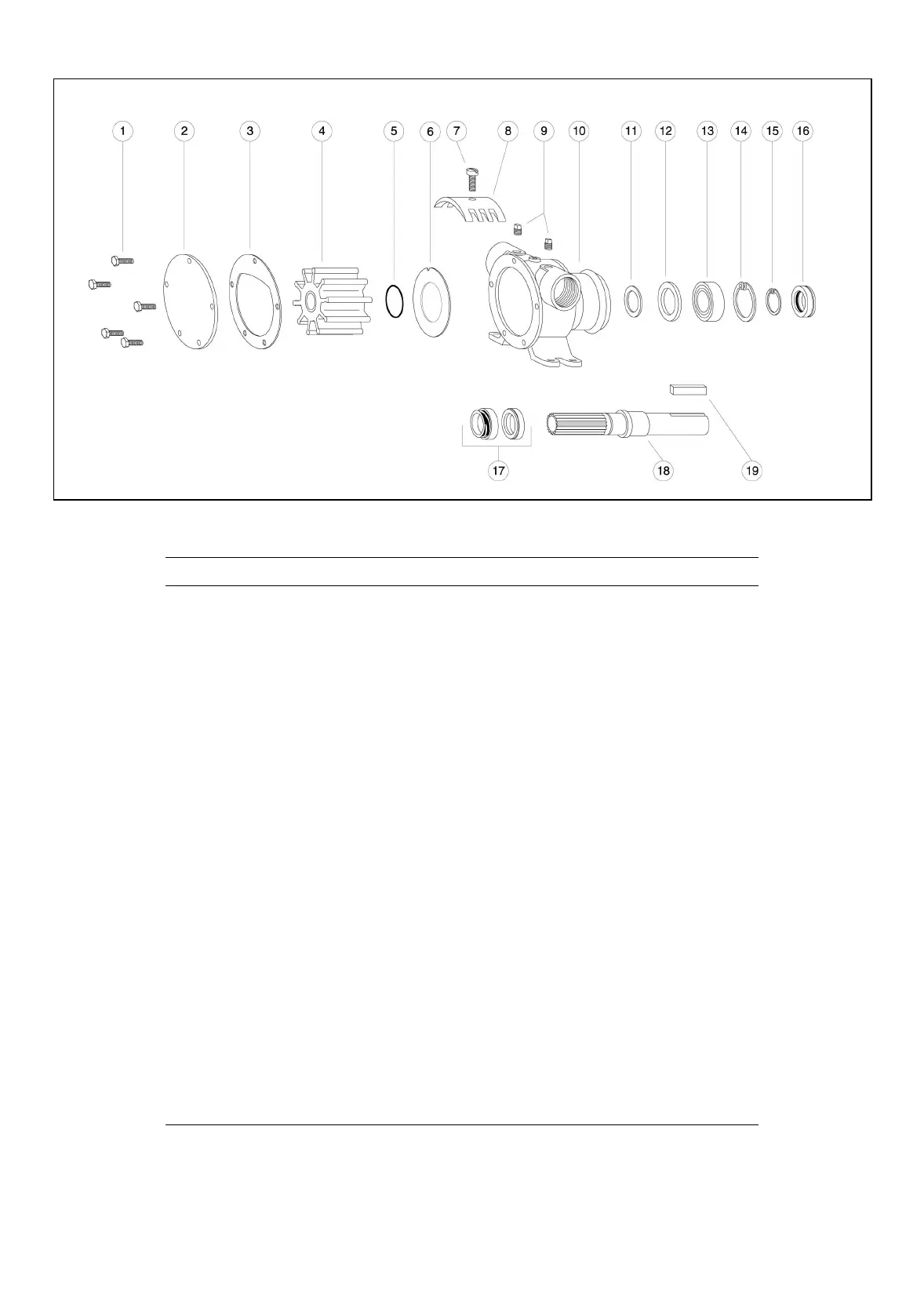

XPLODED VIEW

1 Screw, End Cover 5 91005-0040

2 End Cover 1 12062-0000

3 *Gasket for Full Thickness Cam 1 816-0000

for Half Thickness Cam 2553-0000

4 *Impeller (St'd) Neoprene 1 17935-0001

(Opt'l) Nitrile 836-0003

(Opt'l) High Pressure 807-1001

(Opt'l) Natural Rubber 836-0008

5 O-Ring -10XX series pumps only 1 92000-0120

6 Wearplate 1 2574-0000

7 Screw, Cam for Full Thickness Cam 1 91005-0040

for Half Thickness Cam 91005-0050

8 Cam, Full Thickness 1 834-0001

Half Thickness 2551-0000

9 Pipe Plug, 1/4" -10XX series pumps only 2 92650-0070

10 Body, Sub Ass'y (6400) 1 18753-0585

Body, Sub Ass'y (7420) 1 7424-0000

11 Slinger (6400-Series only) 1 3181-0000

12 Bearing Seal (inner) 1 817-0000

13 Ball Bearing 1 92600-0040

14 Retaining Ring (Brg. to Body) 1 18712-0000

15 Retaining Ring (Brg. to Shaft) 1 18711-0000

16 Bearing Seal** (outer) 1 818-0000

17 *Seal Assembly ** 1 6407-0010

18 Shaft, Std. Length - 316 Stainless Steel 1 824-0020

Short - S.S. for Caterpillar Pumps 1 824-2001

6400-1051 & 7420-1001

19 Key 1/4" x 1/4" x 1" 1 9214-0001

– Service Kit Neoprene Imp. 90062-0001

– Service Kit Nitrile Imp. 90062-0003

* Parts Included in Service Kit

** When replacing shaft seal, the outer bearing seal is generally distorted during

disassembly requiring replacement and is not included in the service kit.

Key Description Qty. Req. Part Number

PARTS LIST

Model 6400-0004

Model 7420-0004
