S5 Workshop Manual Engine
EM-17
Camshaft

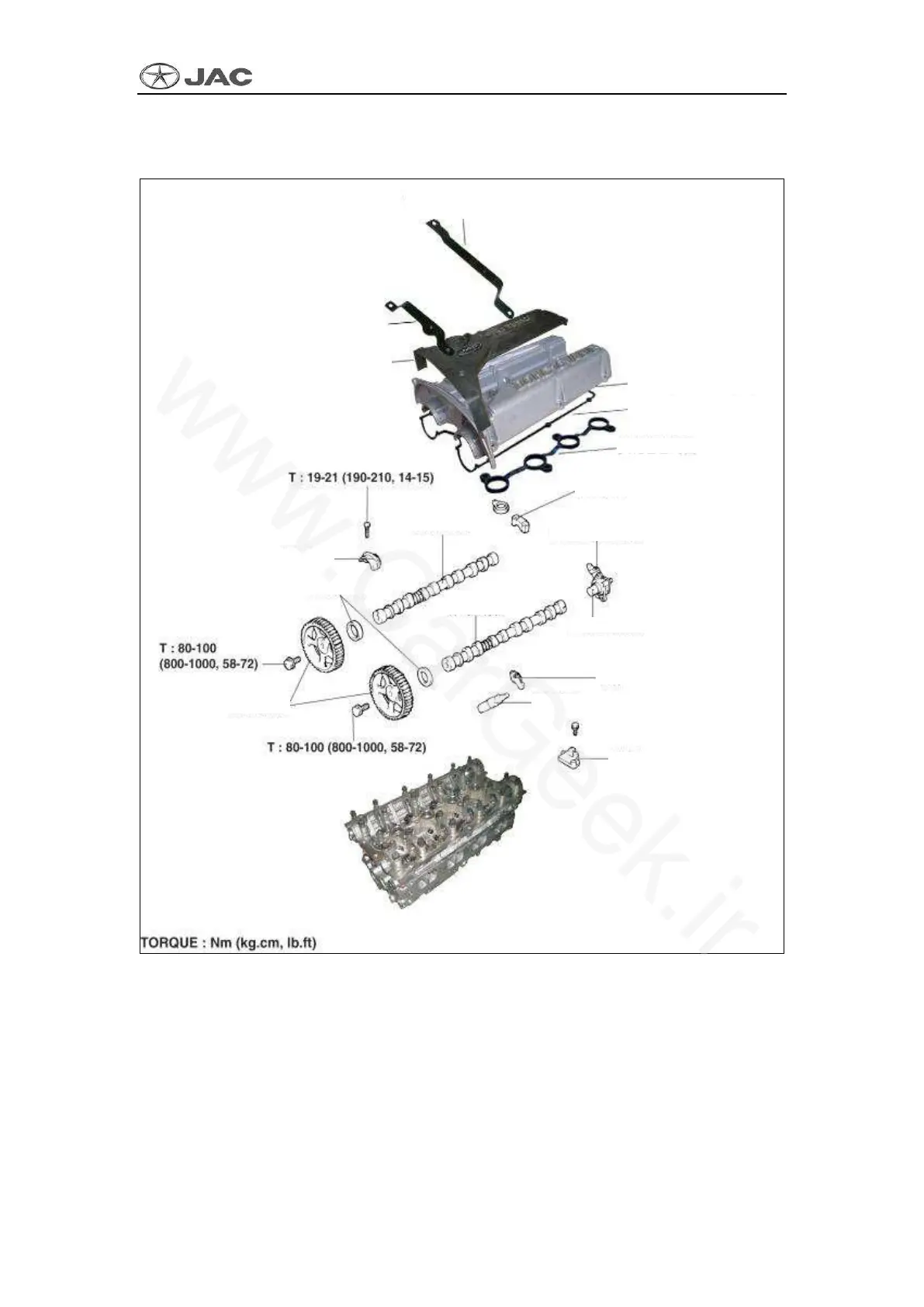

1. Component
2. Dismantling
1) Disconnect negative pole from battery.
2) Discharge coolant of engine.
3) Dismantle breathing hole between air filter and rocker arm housing.
Engine hood front
bracket components
Engine hood rear
bracket components
Cover plate components of
cylinder head protective cover
Cylinder head protective
cover component
Sealing ring of cylinder
head protective cover
Sealing ring of spark plug
Rear bearing cover
Camshaft position sensor
Camshaft signal wheel
Rocker arm
Hydraulic tappet
Oil separator
Intake camshaft
Exhaust camshaft
Bearing cover
Camshaft oil seal
Camshaft chain wheel
