JAC S5 - Turbocharger Servicing; Component Identification and Inspection

S5 Workshop Manual Engine
EM-35
II. Turbocharger
1. Component
2. Inspection
1) Inspect whether the inner housing contacted with turbine has crack, tilting and
other damage due to overdue.
2) Make sure that exhaust gas valve rod can be pushed freely with hands.
3) Make sure that the inner housing surface contacted with compressor has no
damage.

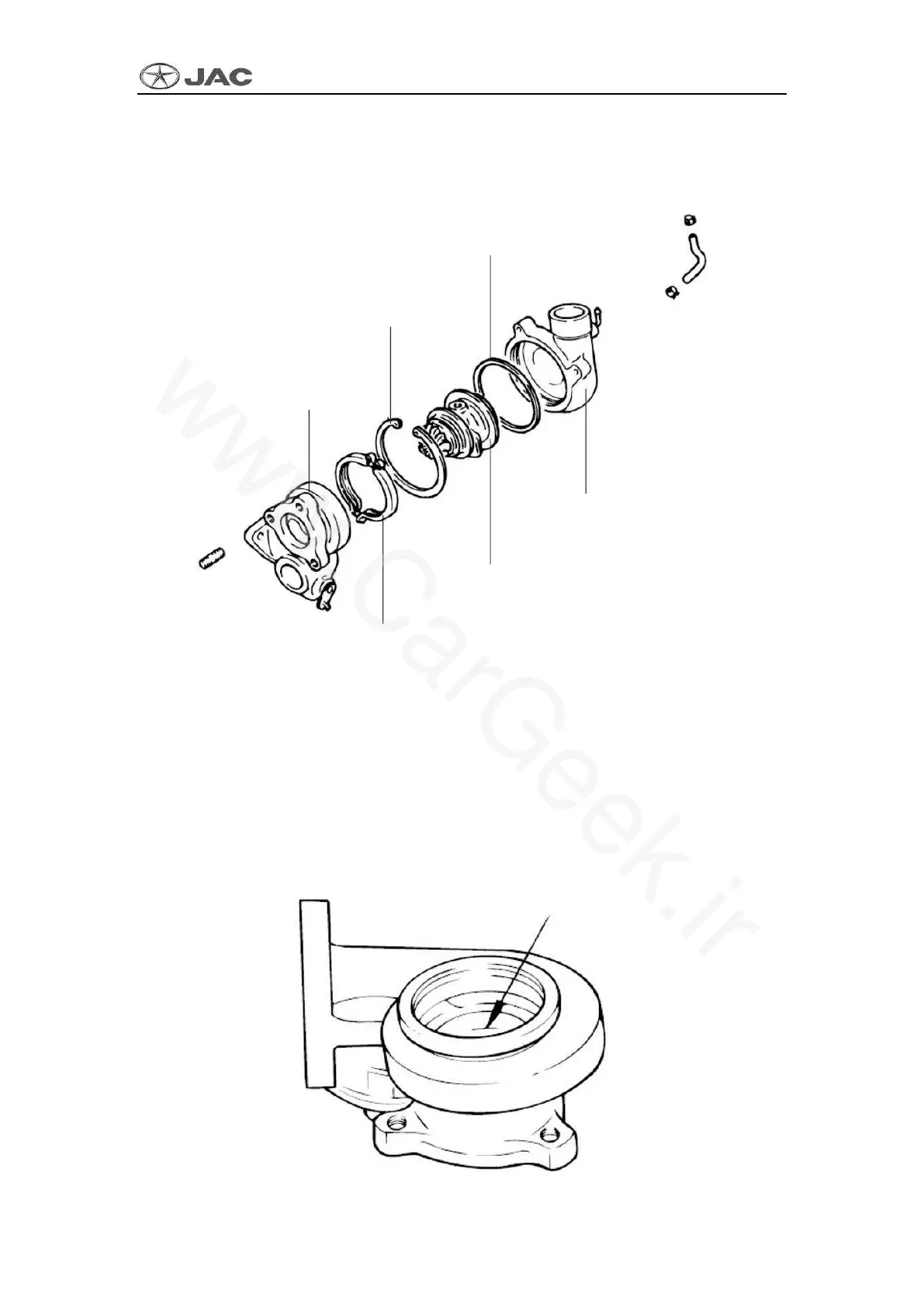

Contact surface
Turbine
housing
Clamp joint
O-ring
Coupling
Turbine core
assembly
Compressor
cover
