S5 Workshop Manual Engine

EM-41

2. Dismantling

1) Disconnect air flow sensor connector.

2) Dismantle air intake hose on the air filter and resonance box.

3) Dismantle three bolts connecting air filter mounting bracket.

4) Dismantle air filter

5) Dismantle air flow sensor from air filter cover.

Notes:

■ Do not drag air flow sensor wire, and connect the connector to air filter cover.

3. Inspection

1) Inspect whether air filter body, cover or filter element have deformation, corrosion

or damage.

2) Inspect whether air pipe has damage.

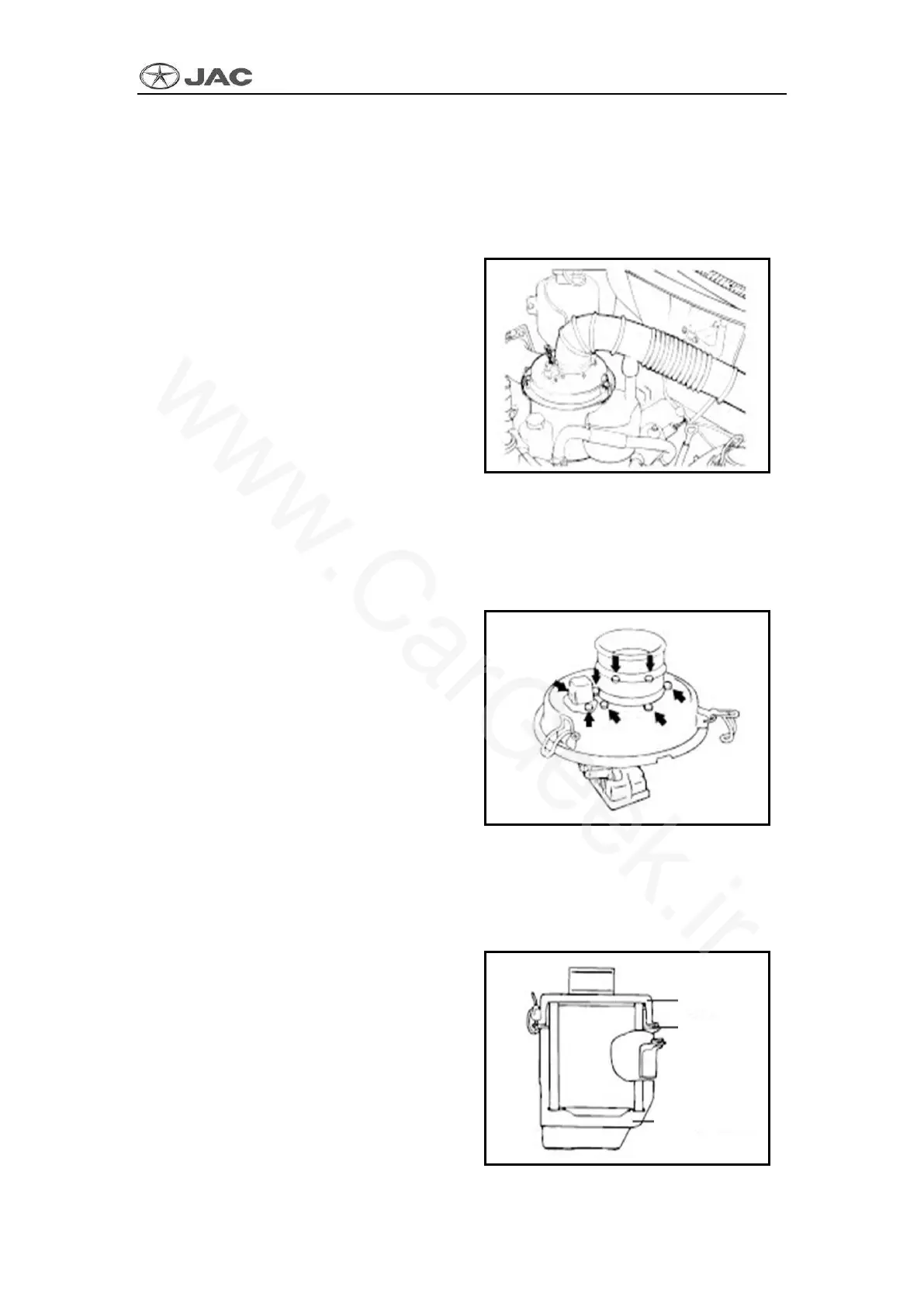

EM063

EM062

EM061

Cover

Cushion

Air filter body
