S5 Workshop Manual Engine
After inspecting timing mark, install inspection bolt of left balance shaft.
Tightening torque: 2.7 ～ 3.4 kg/cm
2
(Apply liquid sealant: Threebond NO.1212B or equivalent)
18) Pull out locating pin

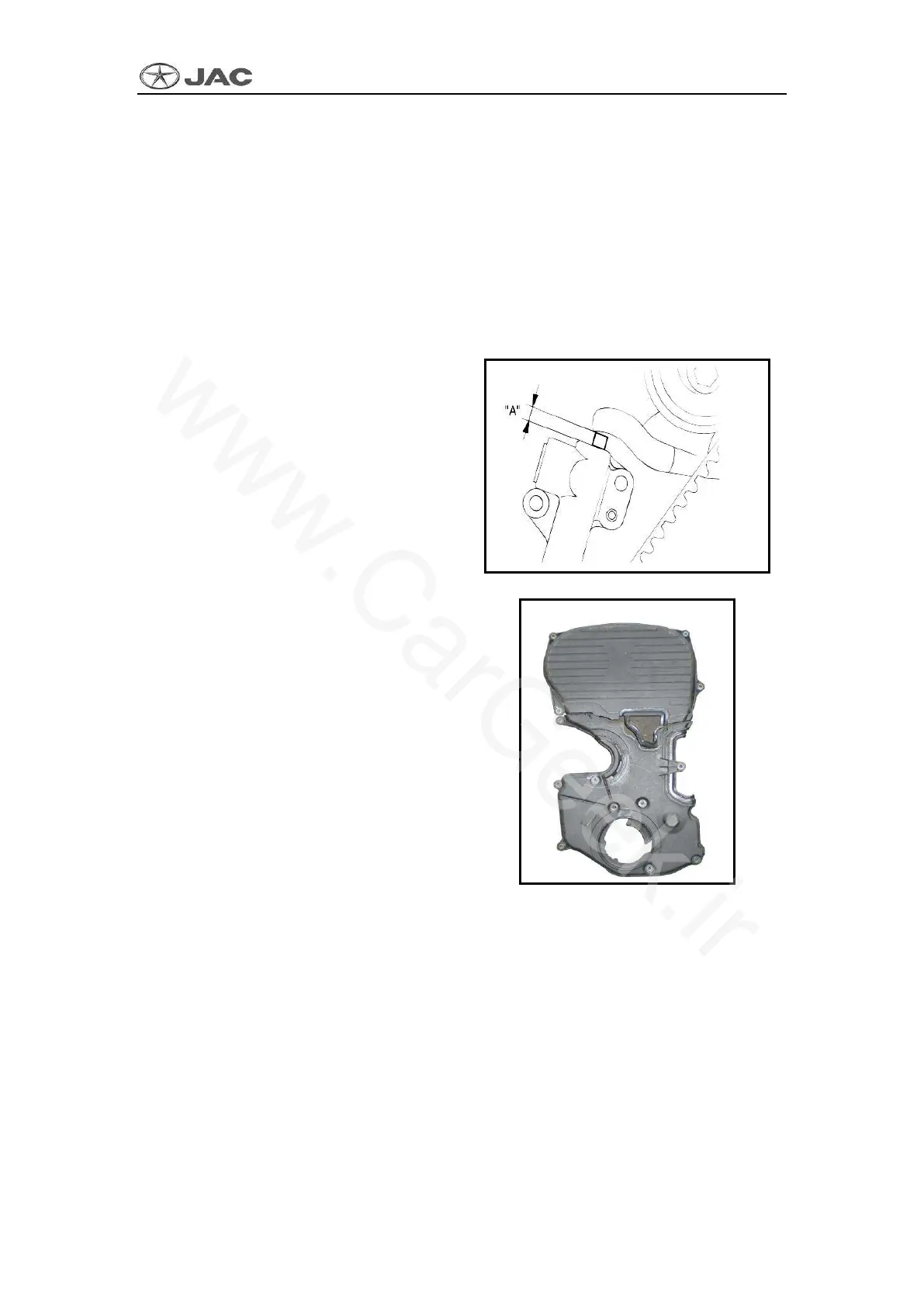

19) Rotate crankshaft for 6 circles in clockwise and keep for 5mins. And then
measure the projection section "A" of automatic tensioner (clearance between
tensioning lever and automatic tensioner) to ensure that it is within the specified
range.
Standard value: 5.5 ～ 9 mm
20. Install Upper/lower shield of timing
pulley.
To Next Page
