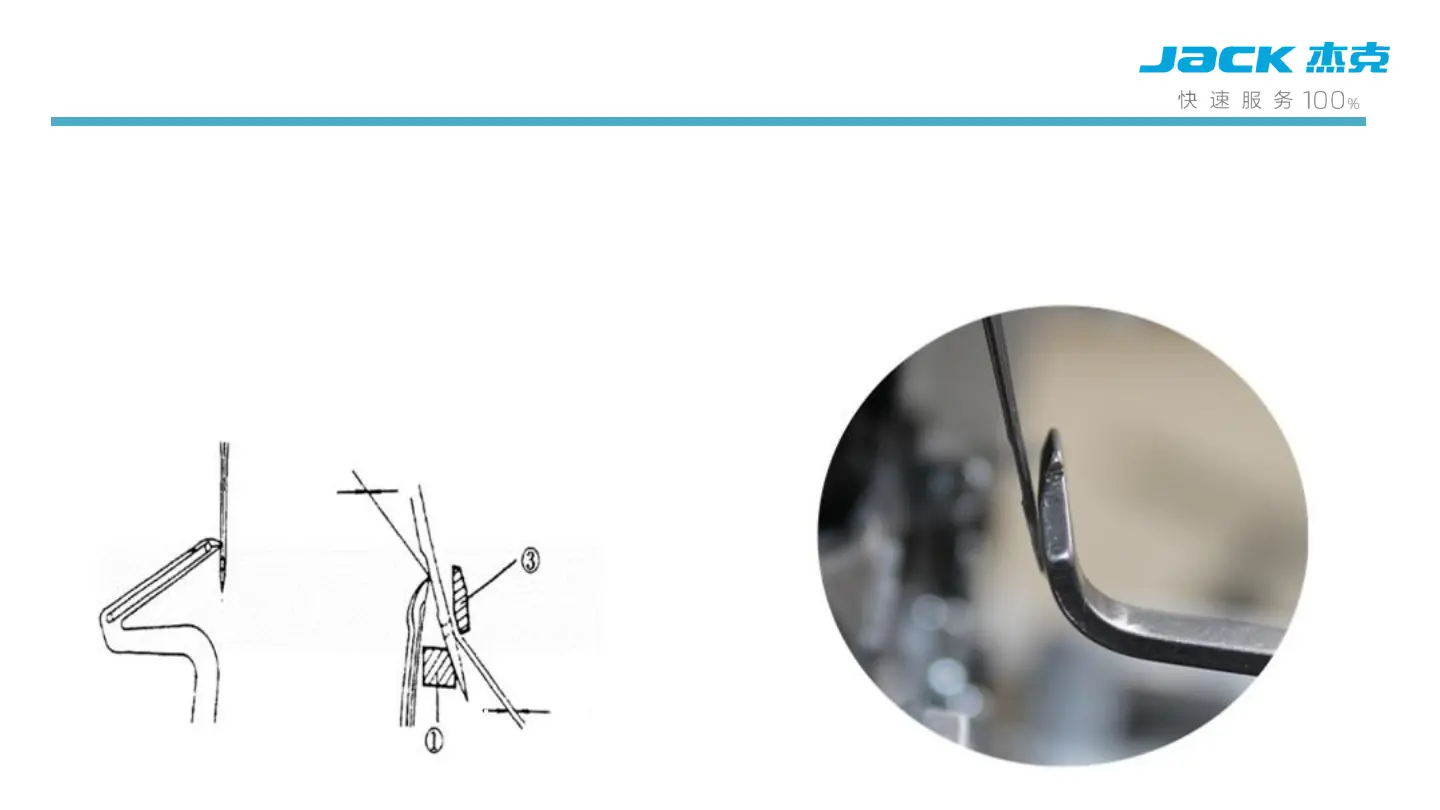

9.Adjustment of front needle guard：
When back needle guard touch the needle ，the gab between
front needle guard and needle is
0.2-0.5mm.
0.2-0.5mm
