型号
model
喂针高度H
Spreader height H
喂针高度H
Spreader height H
K4-01GB×356
7.8
9.2
K4-01GB×364
7.8
8.8
K4-02BB×356
7.8
9.2
K4-02BB×364
7.8
8.8
K4-35AC×356
7.8
9.2
K4-35AC×364
7.8
8.8

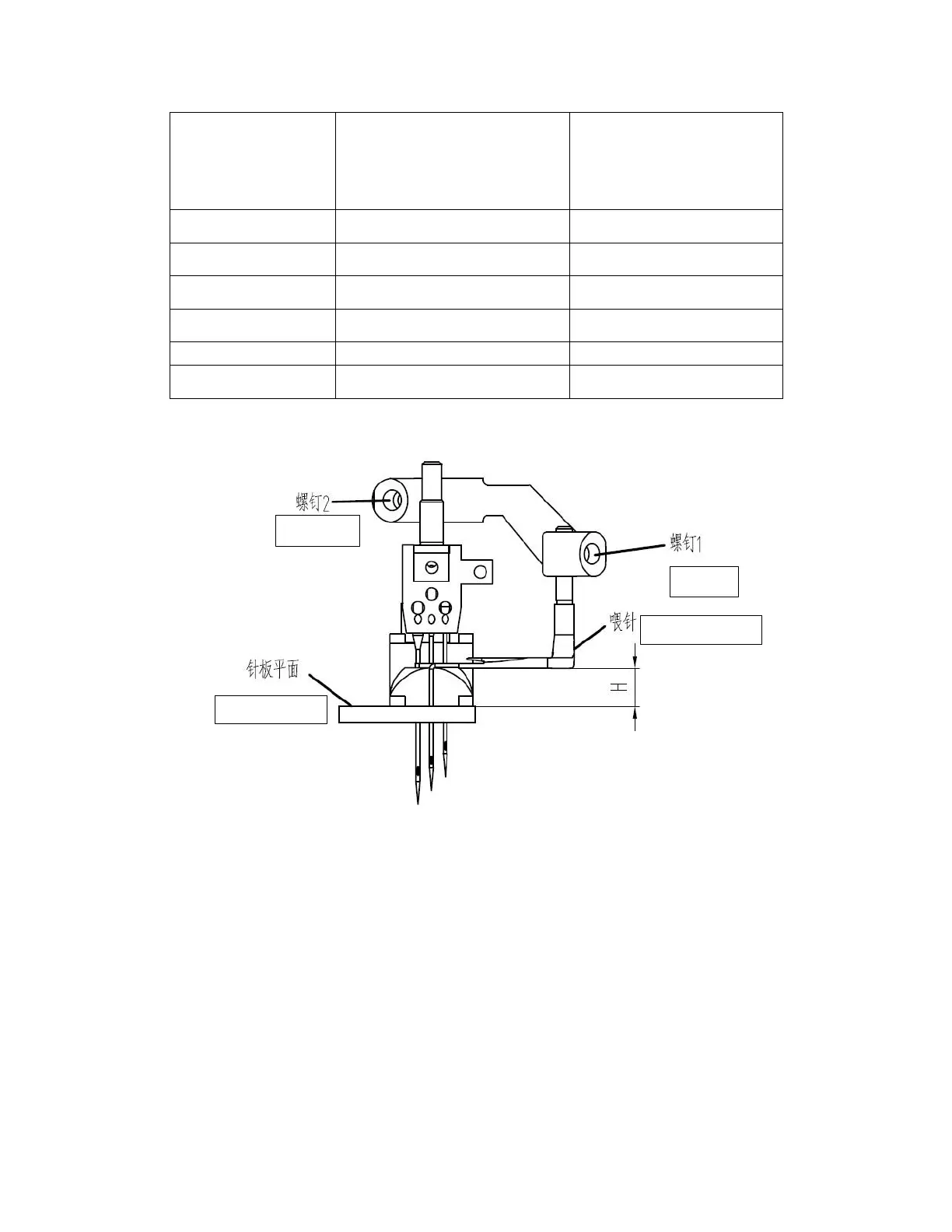

图13(Picture 13)
喂针从右往左运动，松开螺钉1，调整喂针针尖与左针间隙调整喂0.5mm，喂针
继续向左运动到左极限，松开螺钉2，调整喂针与左针中心的间隙为4.5-5.0mm，
然后拧紧螺钉2。
Spreader moving from right towards to left, loose screw 1,adjusting the
distance between Spreader pinpoint and left needle to be 0.5mm,and
Screw 2
Screw
1
Feedd needle
Needle plate
