Page 5

The Wall Mount Power Injector:

• Can be mounted in most standard electrical boxes.

• Requires a +12 Volt DC power source. (Inadequate voltage may cause the green LED to not illuminate and the unit to not

function properly.

• Requires #10-12 female spade connectors for power and ground connections.

• Has an internal fuse rated @ 400 mA max. If tripped, the fuse will reset when the circuit cools.

• Is not an amplier. No devices other than those shown below should be connected.

IMPORTANT!

Make sure power injector is turned off

(button not depressed)

while making connections.

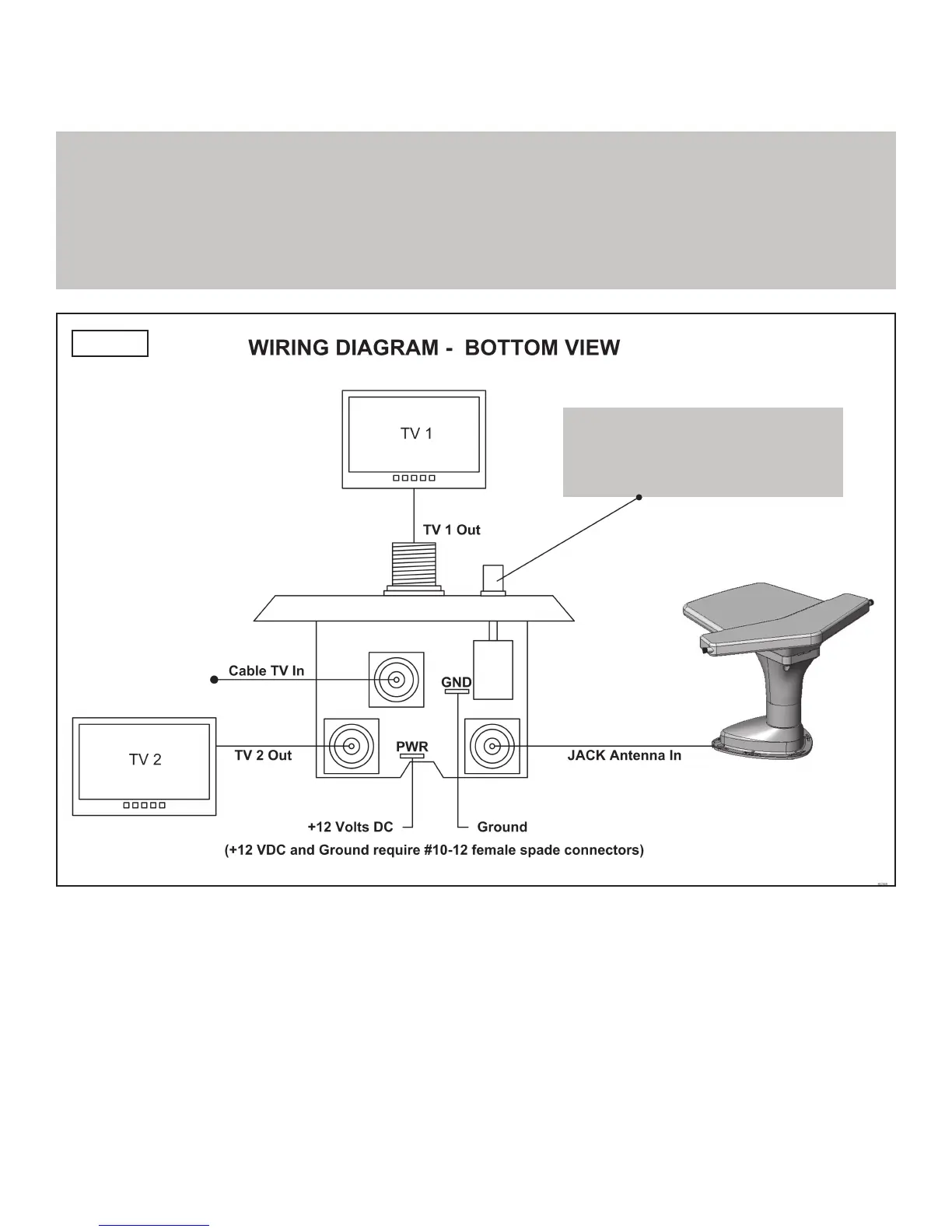

WALL MOUNT POWER INJECTOR INSTALLATION (FIG. 4)

1. Make all connections as shown.

FIG. 4
