3. INSTALLATION
~11 11 1 11 11 11 111 11
M3 X 20
\_ Oil pa n

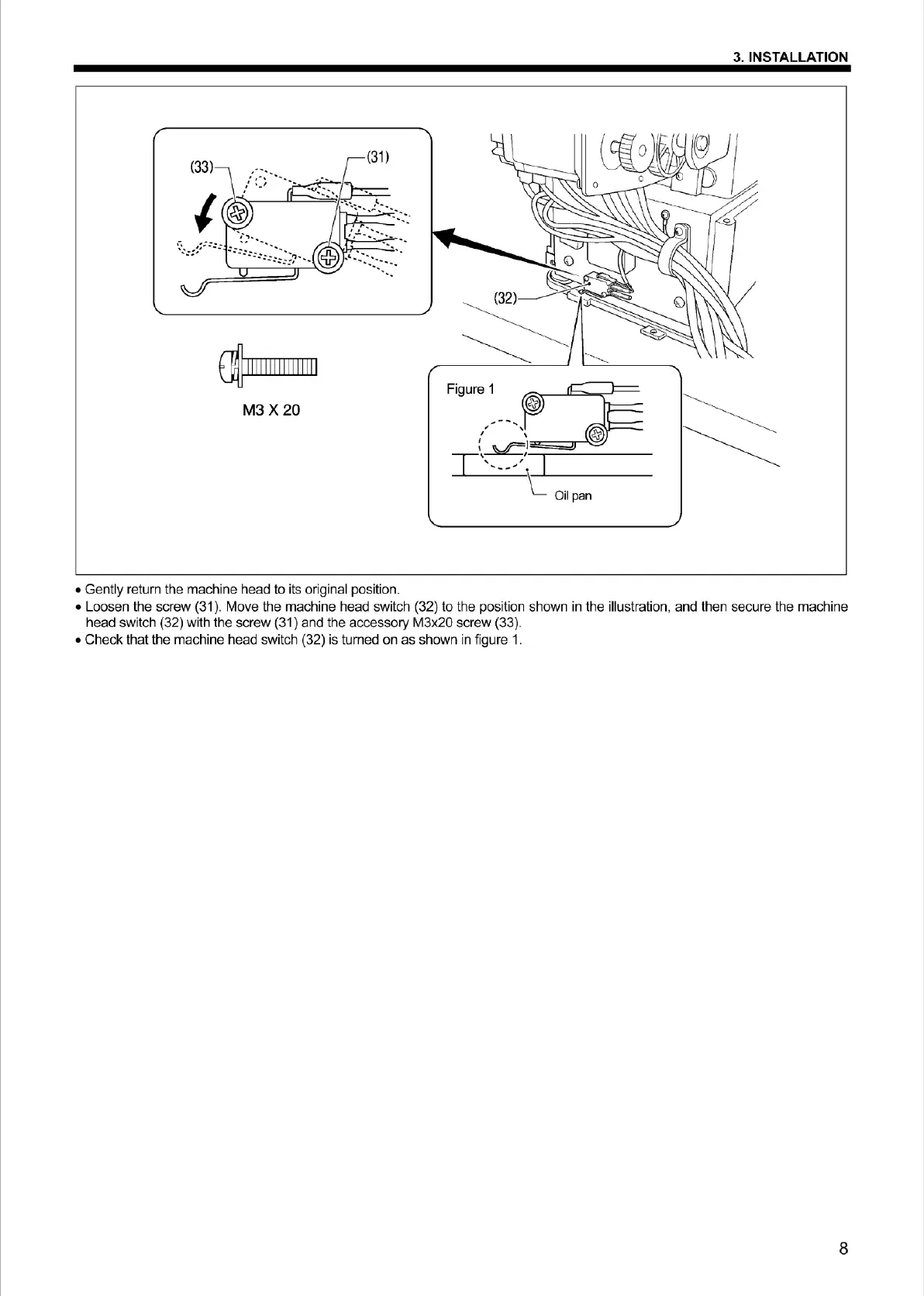

• Gently return the mac hine head to its original position.
• Loosen t
he screw (31 ). Move the machine head switch (32) to the position shown in the illustration, and then secure the machi ne
head sw it ch (32) with the screw (31) and the accessory M3x20 screw (33).
• Ch
eck that the mac hine head switch (32) is turned on as shown in figure 1.
8
