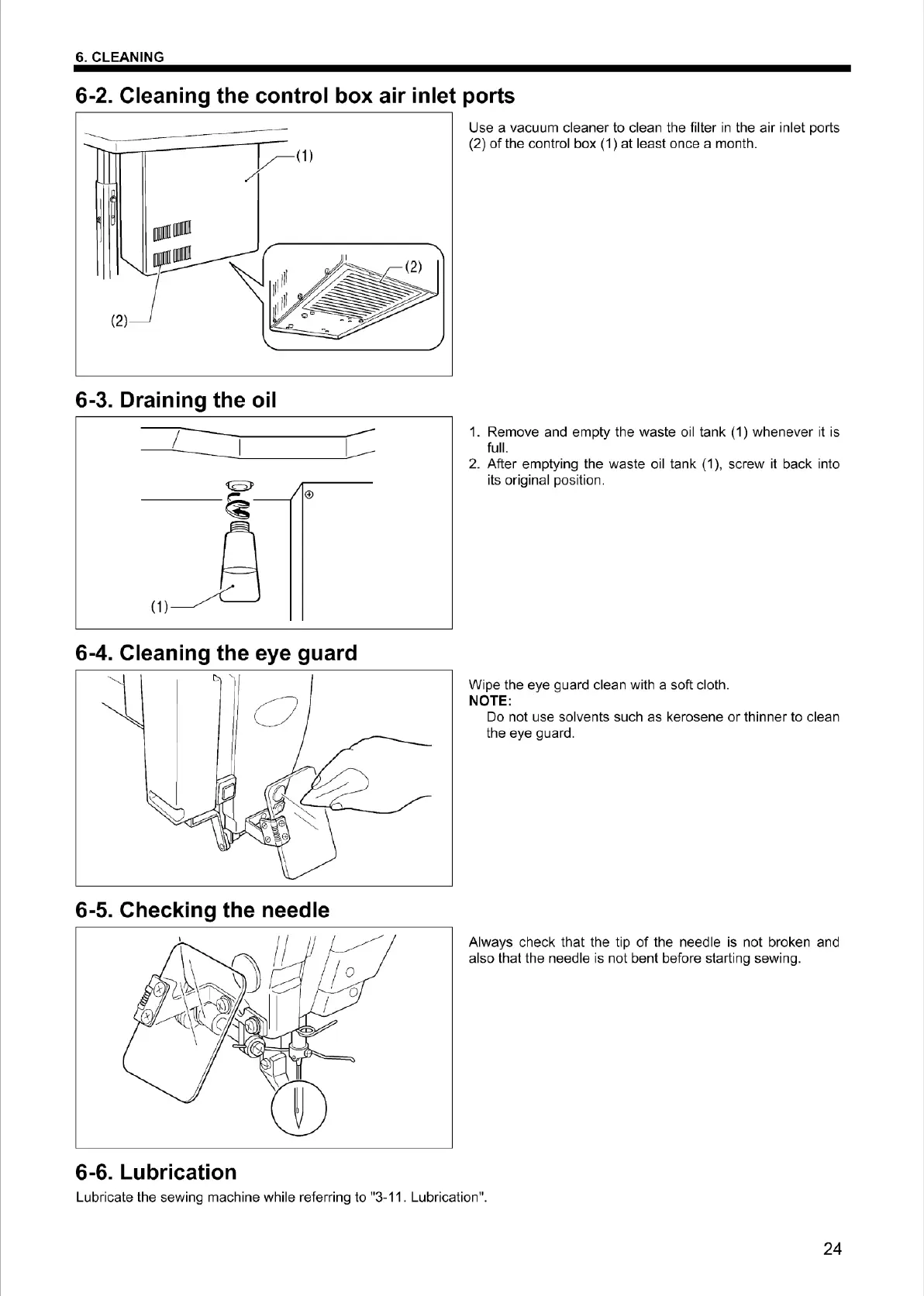

6. CLEANING
6-2. Cleaning the control box air inlet ports
6-3. Draining the oil
;--
1
____
1
___
6-4. Cleaning the eye guard
6-5. Checking the needle
6-6. Lubrication
Use a vacuum cleaner to clean the filter in the air inlet ports
(2)
of
the control box (1)
at
least once a month.
1. Remove and empty the waste oil tank ( 1) whenever it is
full.
2.
After emptying the waste oil tank
(1
), screw it back into
its original position.
Wipe the eye guard clean with a soft cloth.
NOTE:
Do not use solvents such as kerosene
or
thinner to clean
the eye guard.
Always check that the tip
of
the needle is not broken and
also that the needle is not bent before starting sewing.
Lubricate the sewing machine while referring to "3
-11
. Lubrication".
24
