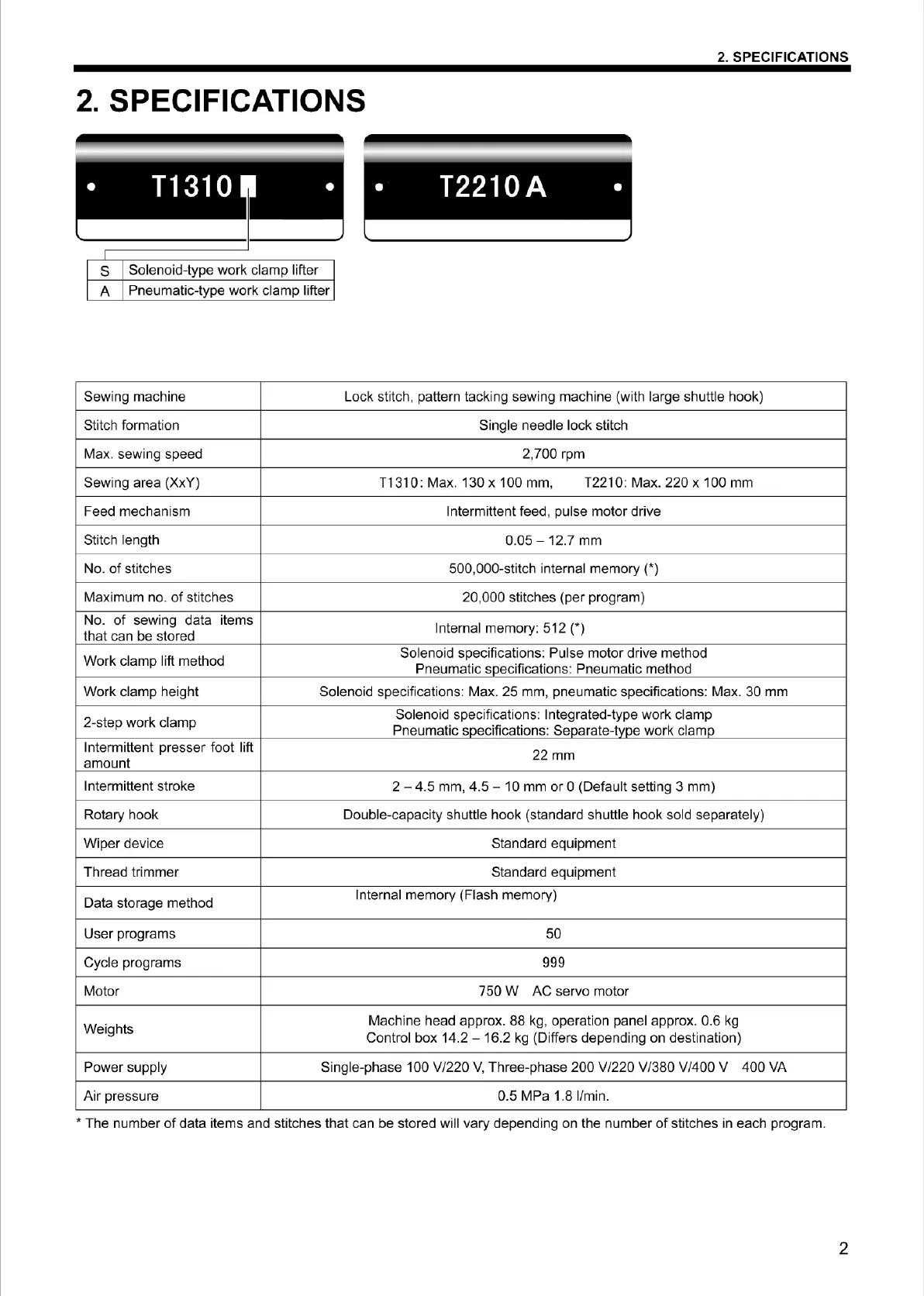

2. SPECIFICATIONS
2. SPECIFICATIONS
S Solenoid-type work clamp lifter
A Pneumatic-type work clamp lifter
Sewing machine
Stitch formation
Max. sewing speed
Sewing area (XxY)
Feed mechanism
Stitch length
No.
of
stitches
Maximum no.
of
stitches
No.
of
sewing data items
that can
be
stored
Work clamp li
ft
method
• T2210 A •
Lock stitch, pattern tacking sewing machine (with large shuttle hook)
Single needle lock stitch
2,700 rpm
T1310: Max.
130x
100 mm, T2210: Max. 220 x 100 mm
Intermittent feed, pul
se
motor
dr
ive
0.
05
- 12.7 mm
500,000-stitch internal memory
(*)
20,000 stitches (per program)
Internal memory: 512
(*)
Solenoid specifications: Pulse motor drive method
Pneumatic specifications: Pneumatic method
Work clamp height Solenoid specifications:
Max. 25 mm, pneumatic specifications: Max. 30 mm
2-step work clamp
Solenoid specifications: Integrated-type work clamp
Pneumatic specifications: Separate-type work clamp
Intermittent presser foot lift
22mm
amount
Intermittent stroke
2 - 4.5 mm, 4.5 - 10 mm
or
0 (Default setting 3 mm)
Rotary hook Double-capacity shuttle hook (standard shuttle hook sold separately)
Wiper device Standard equipment
Thread
tr
immer Standard equipment
Data storage method
Internal memory (Flash memory)
User programs 50
Cycle programs
999
Motor
750W
AC servo motor
Weights
Machine head approx. 88
kg
, operation panel approx. 0.6
kg
Control box 14.2 - 16.2
kg
(Differs depending on destination)
Power supply Single-phase 100 V/220 V, Three-phase 200 V/220 V/380 V/400 V
400VA
Air pressure 0.5 MPa 1.8 I/min.
* The number
of
data items and stitches that c
an
be stored will vary depending on the number
of
stitches in each program.
2
