JPX-300 Installation/Operation Manual 7610-002-71-26 Rev. J
Issued: 03-09-2006 Revised: N/A
SECTION 4: ELECTRICAL SCHEMATICS
30

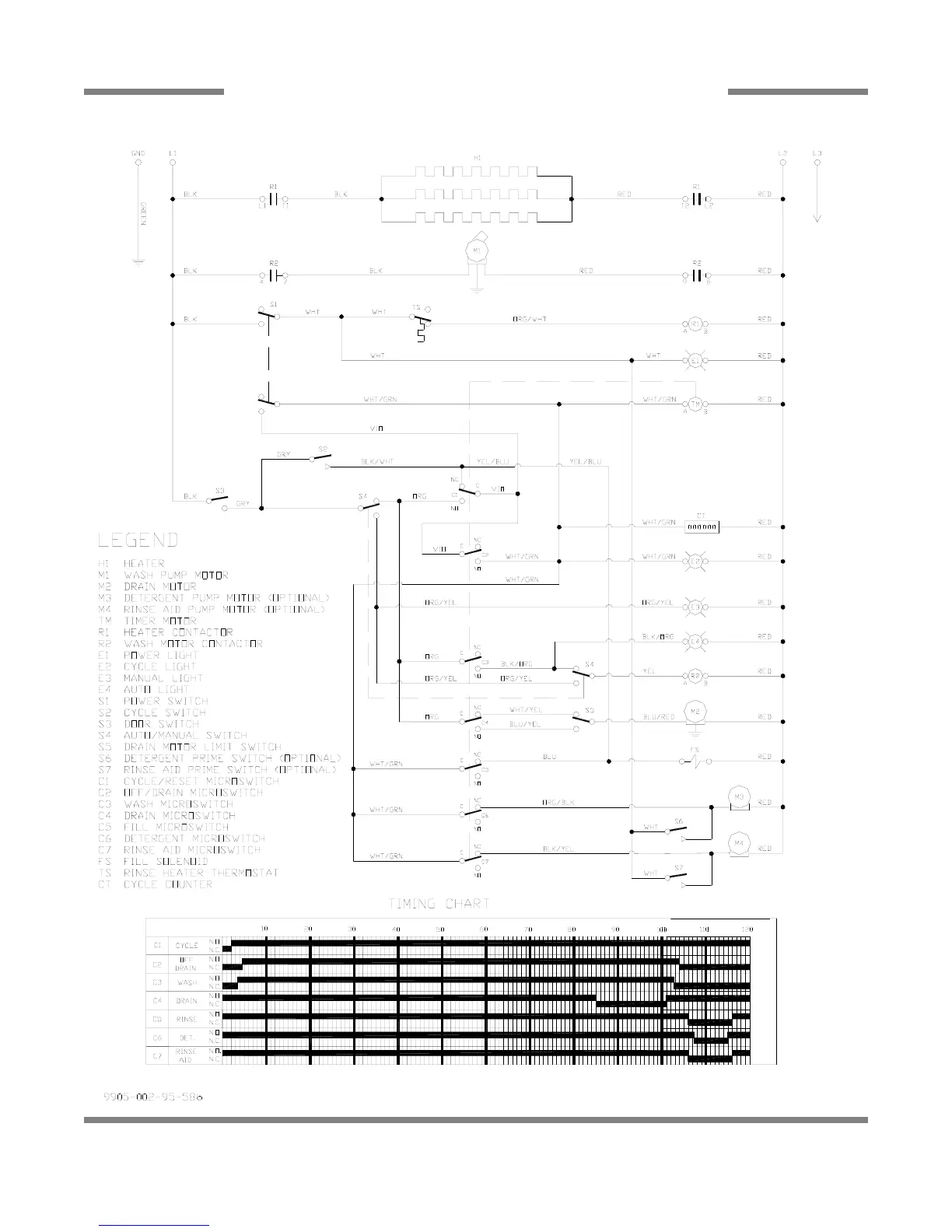

JPX-300HC 208-230 VOLT - 60 HERTZ - SINGLE PHASE
