JPX-300 Installation/Operation Manual 7610-002-71-26 Rev. J
Issued: 03-09-2006 Revised: N/A
SECTION 4: ELECTRICAL SCHEMATICS
34

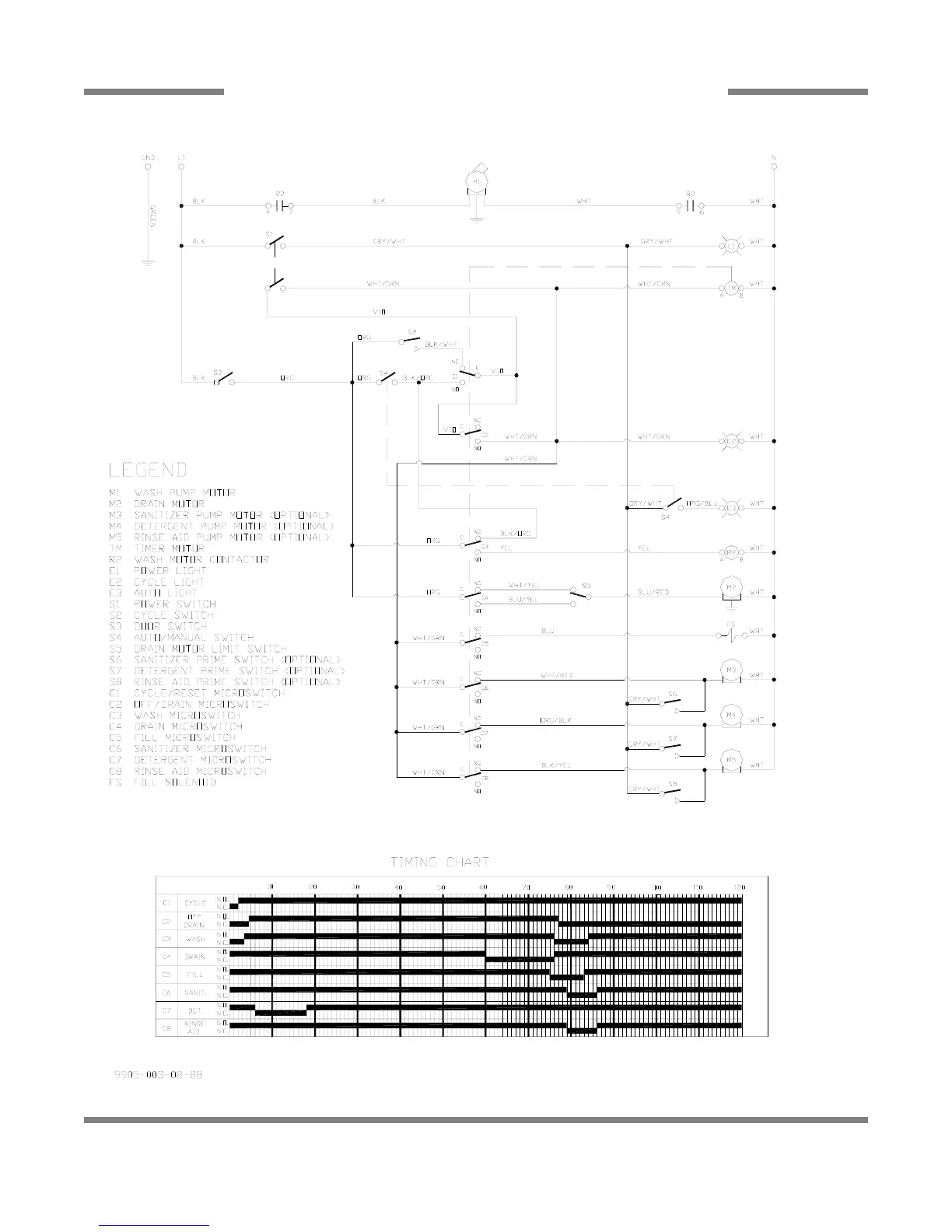

JPX-300L (FOR USE WITH STAINLESS STEEL SWITCHES) 115 VOLT - 60 HERTZ - SINGLE PHASE
