Jacobsen AR-522 Dealer's Manual

LUBRICATION 6
en-21
6 Lubrication

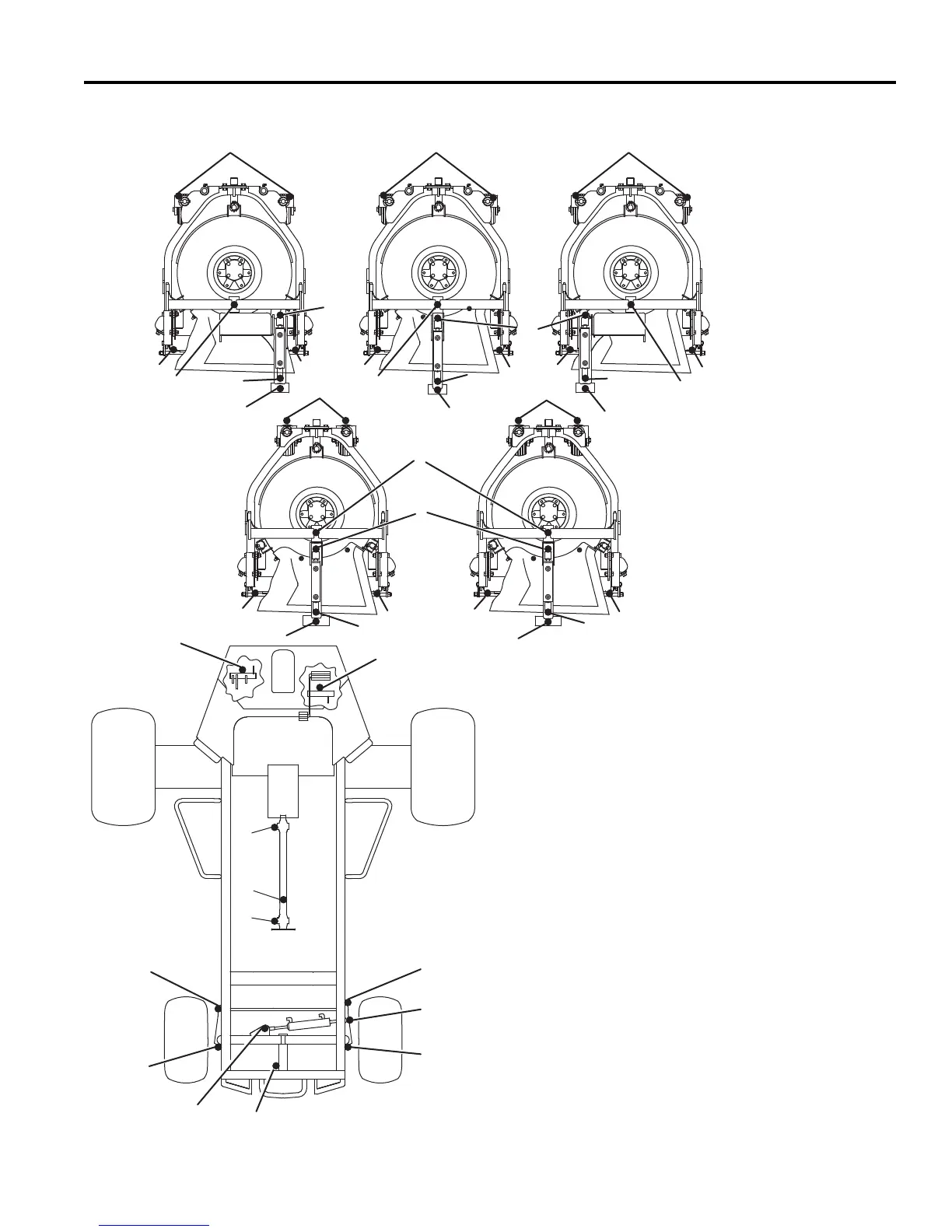

6.1 LUBRICATION CHART
11
1
1
2
2
2
2
2
3
3
3
3
3
3
3
3
444
4
4
5
5
555
5
5
555
6
7
8
8
9
9
10
10
12
12
12
11
Lubricate using only manual grease gun
with NLGI Grade 2 (Service Class LB).
Grease Fittings
F1 - 50 Hours (Every Week)
1 Mower Pivot (5)
2 Lift Arm Pivot (5)
3 Lift Cylinders (10)
4 Caster Pivot and Wheels (10)
5 Deck Rear Roller (10)
6 Brake Pedal Pivot
7 Traction Pedal Pivot
8 Ball Joint (2)
9 Steering Pivot (2)
10 Steering Cylinder (2)
11 Axle Pivot
F2 - 100 Hours
12 U-joint Driveshaft (3)

Jacobsen AR-522 Specifications

General

Engine Manufacturer	Kubota
Fuel Type	Diesel
Transmission Type	Hydrostatic
Speed Range	0-8 mph
Turning Radius	18 in (45.7 cm)
