CONTROLS 2
en-7
A. Tilt Steering Lever
Pull lever up to release steering column. Tilt
column up or down to position desired. Release
lever to lock steering column in place.
B. Parking Brake Lock/Release
To lock parking brake, hold brake pedal (C) down and
press lock (B
1
) until it engages. To disengage, press brake
pedal release (B
2
).

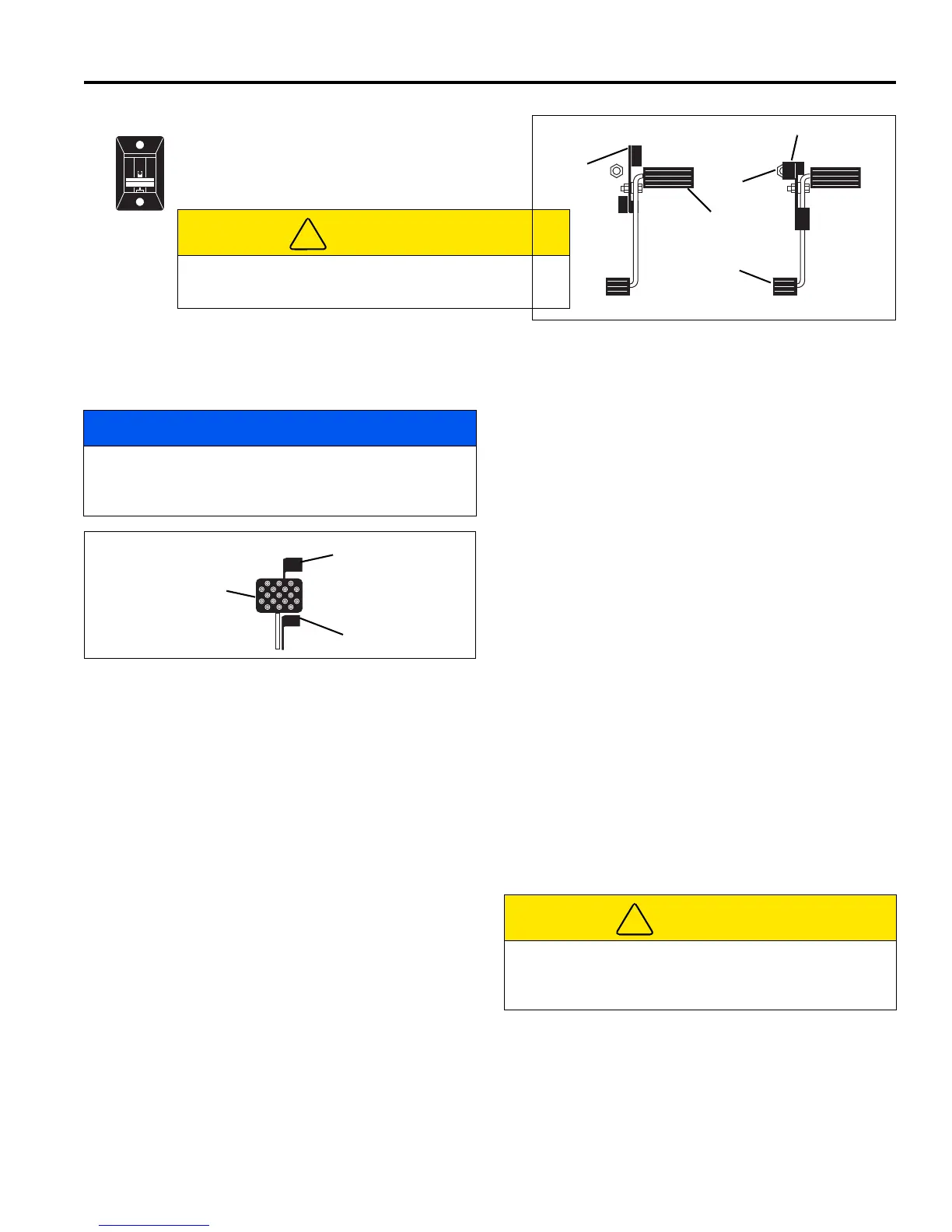

Figure 2A
C. Parking Brake
To engage parking brake press pedal down.
D. Mow Speed Stop
Limits forward speed while mowing. To operate at lower
travel speed while mowing, rotate lever so it contacts stop
screw (D
1
) on floor board when forward travel pedal is
pressed. To travel at full speed, set lever in position shown
(D
3
). Stop screw (D
2
) can be adjusted to set specific mow
speeds. See Parts & Maintenance Manual.
E. Traction Pedal - Forward
Press front of pedal down for forward travel. Release pedal
to slow mower and stop.
F. Traction Pedal - Reverse
Press rear of pedal down for reverse travel. Release pedal
to slow mower and stop. Allow mower to come to a
complete stop before reversing directions.
Figure 2B
G. Seat Adjustment
Pull left side lever out to adjust seat forward or backward.
To adjust spring tension under seat turn adjusting knob on
front of seat.
H. Hydraulic Oil Cap/Dipstick
Fill to mark on dipstick using clean hydraulic fluid while
machine is cool. Do not overfill.
J. Air Cleaner Indicator
Indicates condition of air cleaner on engine. Clean or
replace air filter when red band appears in clear window of
indicator. See Parts & Maintenance Manual.
K. Fuel Cap
Fill fuel tank with No. 2 diesel fuel, minimum Cetane Rating
of 45. See Section 5.11.
L. Alarm
The alarm, along with the warning lights (N, Y), sounds to
alert the operator to conditions requiring immediate
attention. See Section 2.4.
M. Controller / Fuses
The controller is located under the rear hood directly
behind the operator’s seat. It is equipped with lights to aid
in monitoring and troubleshooting the electrical system of
the mower. See Parts & Maintenance Manual.
Two spade type fuses are located on the controller. To
replace fuses remove the access panel.
CAUTION
Never adjust steering while mower is moving. Stop unit
and set parking brake before adjusting.
NOTICE
The engine will automatically shut down if the traction pedal
is held down for more than 10 seconds with the parking
brake engaged.
!
B
1
B
2
C
CAUTION
Service to the electrical system must be performed by a
trained technician. Before replacing fuses turn mower off
and remove key from ignition.
D
3
Transport Speed
Mow Speed
D
1
D
2
LF002
E
F
!
