4 CONTROLS
en-42

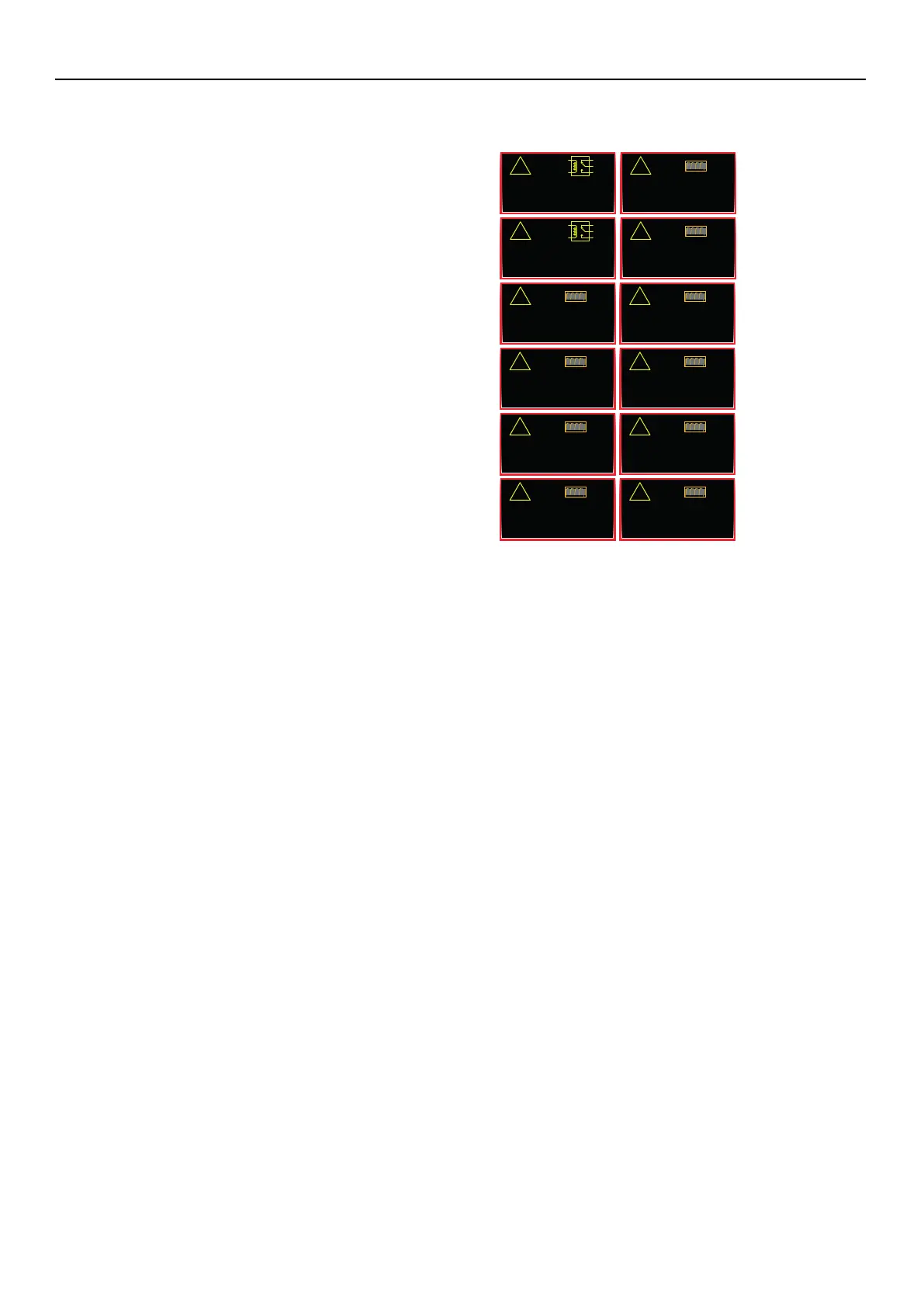

4.2.6.48 WARNING CONTROLLER I/O FAULT _______________________________________
When this screen is shown, there is a controller I/O fault. The
LED will flash two times every two seconds.
Go to I/O Diagnostics for solenoid identification. See Section
4.2.6.21
Glow Relay Fault (J5-8)
Start Relay Fault (J1-6)
Parking Brake Valve
Park Brake Solenoid Fault (J2-5)
5 Gang Lift Valve
Center Lower Solenoid Fault (J2-1)
Center Lift Solenoid Fault (J2-3)
Center Float Solenoid Fault (J2-11)
Weight Transfer Solenoid Fault (J6-3)
5 Gang implement Valve
Mow Solenoid Fault (J5-2)
Wing implement Valve
Wing Mow Enable Solenoid Fault (J5-3)
Left Wing Mow Enable Solenoid Fault (J5-5)
Right Wing Mow Enable Solenoid Fault (J5-1)
Reversing Fan Valve
Fan Direction Solenoid Fault (J2-4)
4WD Valve
4WD Solenoid Fault (J5-7)
AWD Solenoid Fault (J6-2)
Traction Pump
EDC Solenoid Fault (J2-7 & J2-8)
!
5 Gang Lower Solenoid
Fault (J2-1)
1/1
!
5 Gang Lift Solenoid Fault (J2-3)
1/1
!
5 Gang Float Solenoid
Fault (J2-11)
1/1
1/1
!
Weight Transfer Solenoid
Fault (J6-3)
1/1
!
!
Fan Direction Solenoid
Fault (J2-4)
1/1
!
4WD Solenoid Fault (J5-7)
1/1
!
AWD Solenoid Fault (J6-2)
1/1
!
EDC Solenoid Fault (J2-7 & J2-8)
1/1
!
Park Brake Solenoid Fault
(J2-5)
1/1
!
5 Gang Mow Solenoid Fault (J5-2)
1/1
1/1
!
Glow Relay Fault
1/1
!
Start Relay Fault
1/1
