LF 3400 / LF 3800

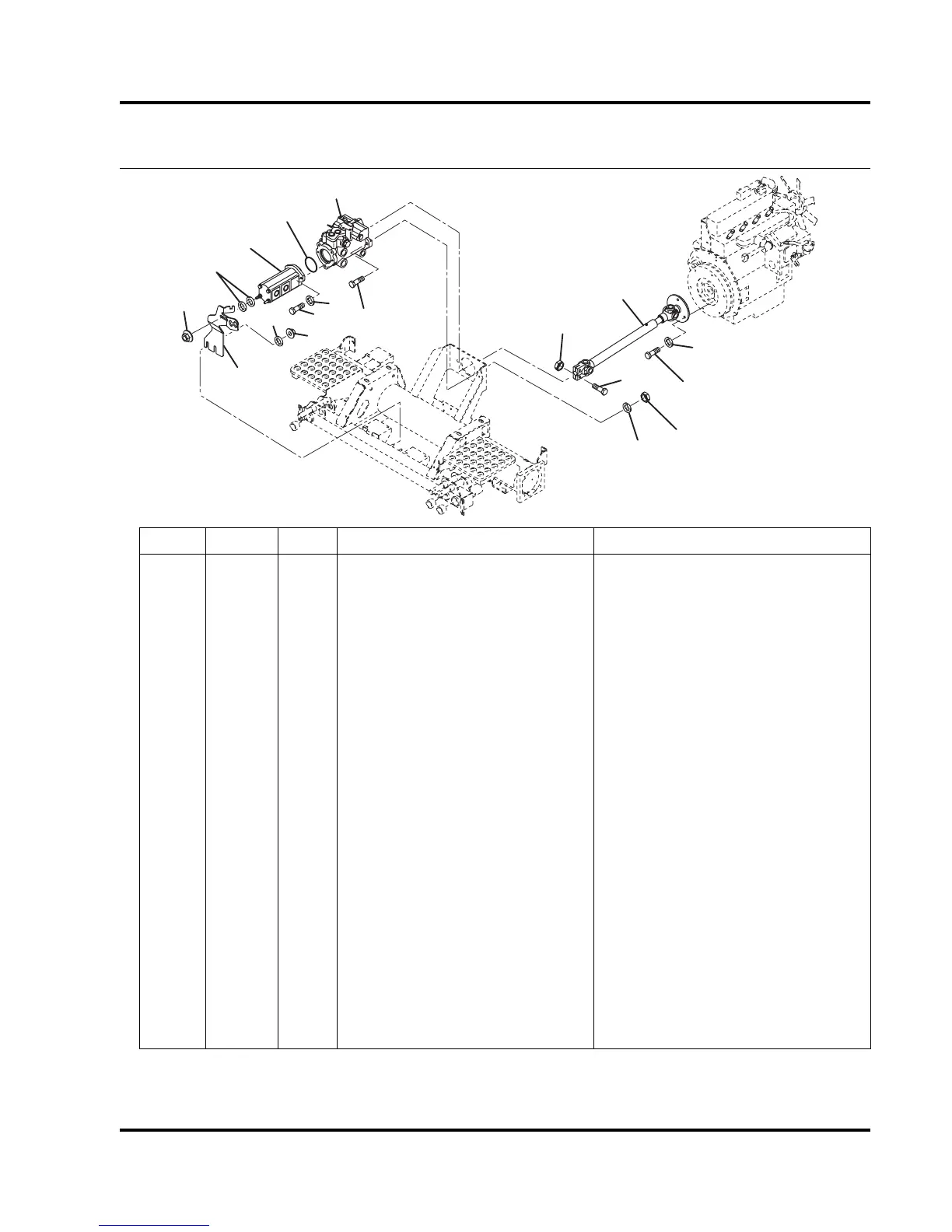

14.1 Pump Mounting
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
2810006 1 Pump, Traction
5003034 1 • Seal Kit
5003432 1 • Control Kit
5003433 1 • Shaft Seal Kit
5003434 1 • System Relief Kit
2810440 1 • Sleeve, Control Arm
2 1002154 1 Pump, 3 Section Gear
5003036 1 • Seal Kit
3 1002854 1 Driveshaft
554663 2 • Cross and Bearing Kit
4 3008819 1 Mount, Gear Pump
5 446154 2 Lockwasher, 1/2 Heavy
6 443118 2 Nut, 1/2-13 Hex
7 363485 3 Lockwasher, M10 Heavy
8 362263 3 Screw, M10-1.25 x 20mm Hex Head
9 444762 2 Locknut, 5/16-18 Center
10 452008 4 Flat Washer, 3/8
11 446142 2 Lockwasher, 3/8 Heavy
12 445796 2 Nut, 3/8-16 Spiralock Flange
13 400266 2 Screw, 3/8-16 x 1-1/2” Hex Head
14 400410 2 Screw, 1/2-13 x 1-3/4” Hex Head
15 400264 2 Screw, 3/8-16 x 1-1/4” hex Head
16 2809907 1 Nut, M10 Spiralock Flange
17 362743 1 O-Ring Seal

Jacobsen LF 3400, Kubota V1305-E, 5 Gang, 2WD Specifications

General

Category	Lawn Mower
Manufacturer	Jacobsen
Model	LF 3400
Engine Manufacturer	Kubota
Engine Model	V1305-E
Number of Blades	5
Drive Type	2WD
