Jacobsen Tri-King 1900D User Manual

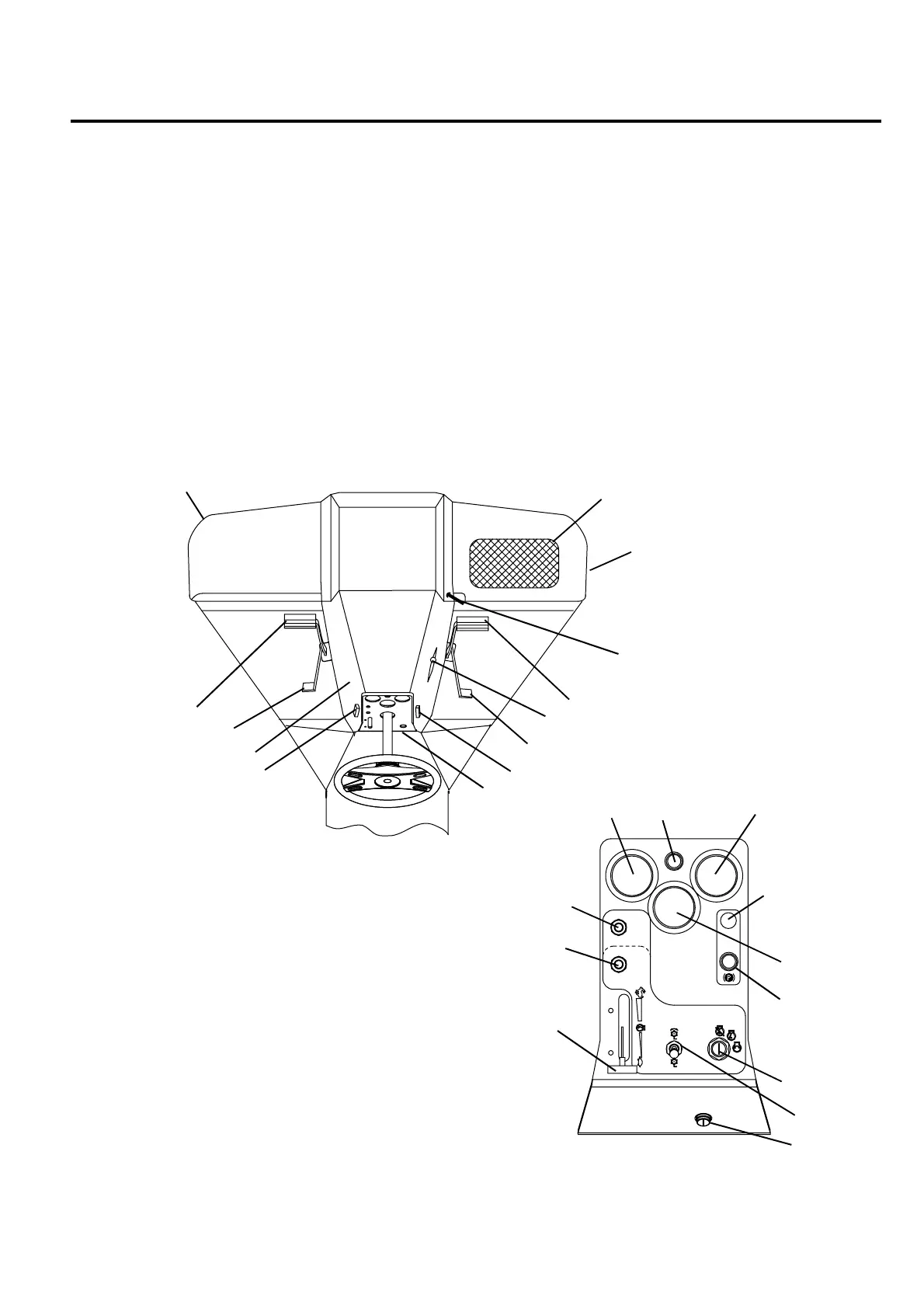

CONTROLS 4
GB-7
A
Throttle Lever
B
Circuit Breaker (Gasoline)
B
Glow Plug Switch (Diesel)
C
Choke (Gasoline)
C
Circuit Breaker (Diesel)
D
Hour Meter (Gasoline)
D
Water Temperature (Diesel)
E
Engine Oil
F
Voltmeter
G
Hour Meter (Diesel)
H
Ignition Switch
I
Reel / 3-WD Switch
J
Backlap Switch
K
Parking Brake Light
L1
Lift Pedal
L2
Lower Pedal
M1
Forward Pedal
M2
Reverse Pedal
N
Parking Brake
O
Hood Latch
P
Left Side Hood
Q
Right Side Hood
R
Console Latches
S
Cooling Air Intake
T
Engine Air Filter Intake
U
Light Switch (Option)
V
Steering Console Cover
A
B
C
D
E
F
G
H
I
J
L
1
L
2
M
1
M
2
N
O
P
Q
R
S
T
U
R
V
K
